Connect Blue Tube from “TANK” Port on RO Module to the Tank
Position tank in desired location. Stand it upright or lay it on its side (using the black plastic
stand). Measure the blue tube from the RO module port marked “TANK” over to the tank
and cut it to desired length.
Insert the blue 3/8” tube into the compression side of the elbow previously installed on top of
the storage tank and push in as far as it will go. Tighten the compression nut securely with a
wrench.
Step 22
Step 23

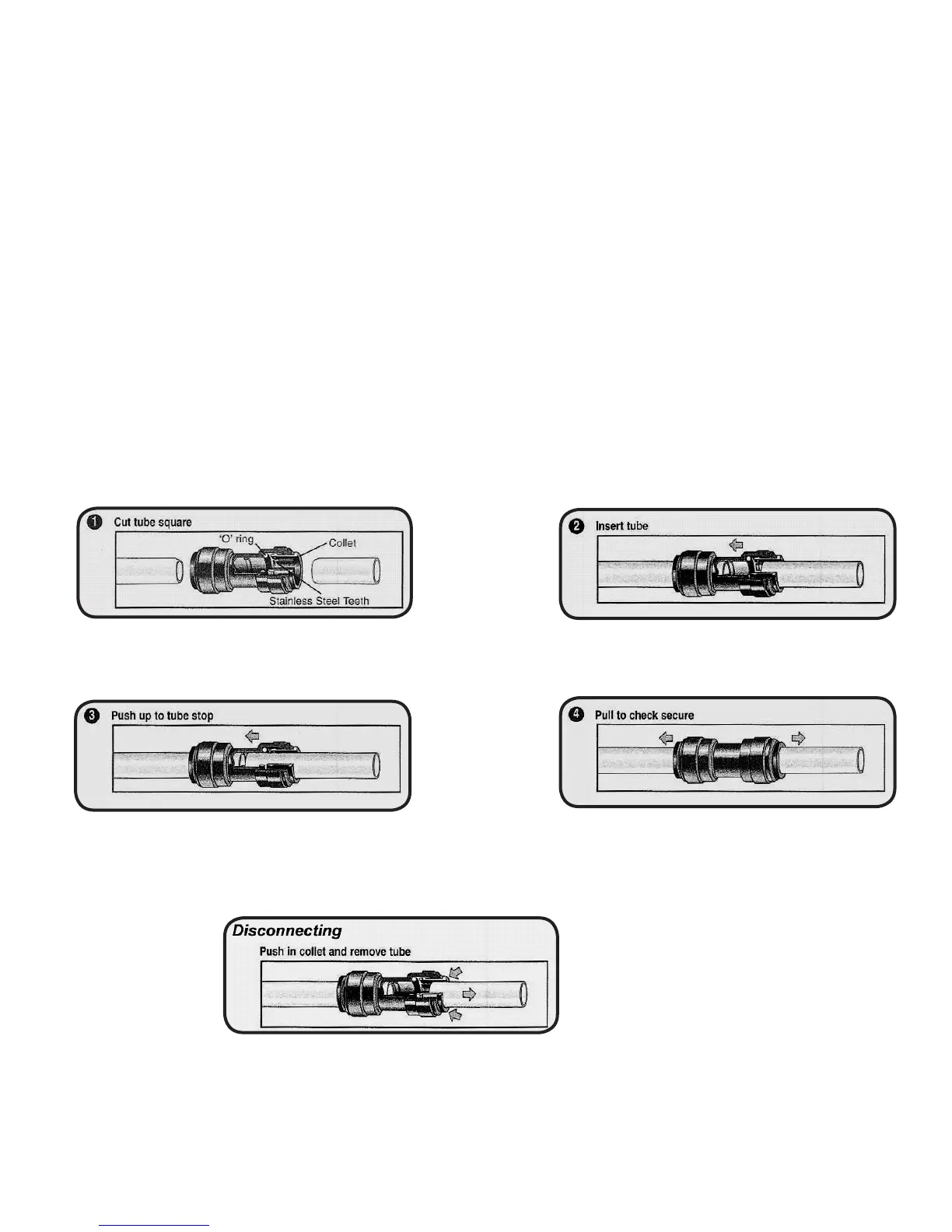

How To Use the Quick Connect Fittings on the RO Module
To make a connection, the tube is simply pushed into the fi tting. The unique patented John Guest®
locking system holds the tube fi rmly in place without deforming it or restricting fl ow.
It is essential that the outside diameter be free of score
marks and that burrs and sharp edges be removed before
inserting into fi tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the fi tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
fi rmly in position while the O-ring provides a permanent
leak proof seal.
Pull on the tube to check that it is secure. It is a good practice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is depressurized before
removing the tube. Push in collect squarely against face
of fi tting. With the collet held in this position, the tube can
be removed. The fi tting can then be reused.
