Premier WP5-50 - Drain Saddle and Final Filter Setup

Page 9
Drain Saddle ts standard 1 ¼” – 1 ½” drain pipes
Drain Saddle Installation
Step 10
Step 11
Step 12
The drain saddle must be installed at least 1 ½” above the nut
of the P-Trap elbow or cross bar from the garbage disposal to
insure proper drainage. Using the 3/8” drill bit, drill into the drain
pipe at best available location as specied above, for drain saddle
installation. Take extreme caution to only drill through one side
of the drain pipe.

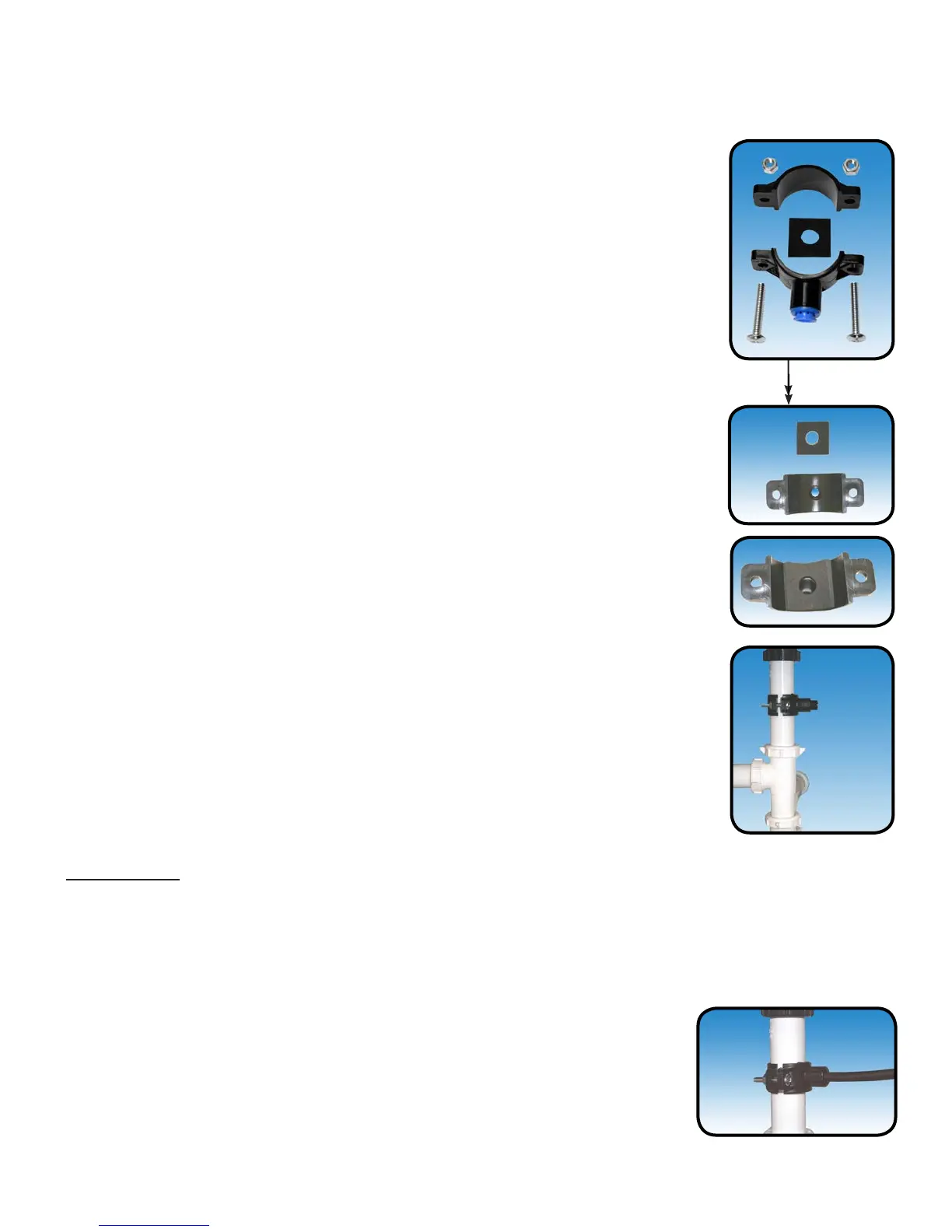

The small square black foam gasket with a circle cut out of the middle
must be applied to the inside of the drain saddle. Remove sticky tape
backing and stick to the drain saddle as shown.
1 Semicircle bracket with opening
2 Screws 1 Foam gasket
2 Nuts for screws 1 Semicircle bracket
Gather the pieces of the drain saddle:
Caution:
Do not over tighten the screws. It may crack the drain saddle.
If you have a garbage disposal, do not install the drain saddle near it.
Installation of the drain saddle must be either above the garbage disposal, or
if a second sink drain is available, install it above the cross bar on the second
drain. Installation of the drain saddle near a garbage disposal may cause
the drain line to plug. If no other installation of drain line is available, Premier
offers drain line installation kit (part number 164020) that can be used with
garbage disposals.
Caution:
The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain
saddle, making a downward slope from faucet to drain saddle to allow for proper
drainage. This is a gravity fed line and if there is any bend or dip in the tube, the rinse
water will not ow into the drain properly. Water may back up and come out the air
gap hole in the back of the faucet.
IMPORTANT:
Measure the 3/8” black tube from faucet to the drain saddle on the
drain pipe and make a straight cut to the correct length.
Connect the black tube to the open quick connect tting on the drain
saddle by pushing the tube all the way to the tube stop.
Step 15
Step 14
Assemble the drain saddle around the drain pipe and align drain
saddle tting opening with the hole drilled in the previous
step - you may use a small screwdriver to feed through the drain
saddle into the drain pipe to aid with the alignment. Using a Phillips
screw driver tighten the drain saddle bolts evenly and securely on
both sides.
Step 13
