Packaged and Split Rooftop Ventilator
© 2021 Mitsubishi Electric US, Inc.
PremiSys
Factory-Installed Refrigeration System Components (continued)
Split DX
1
4a
3
5
2
10
GAS PIPE
7
6
8
9
LIQUID PIPE
1
4a
3
5
2
10
GAS PIPE
7
6
8
9
LIQUID PIPE
4b

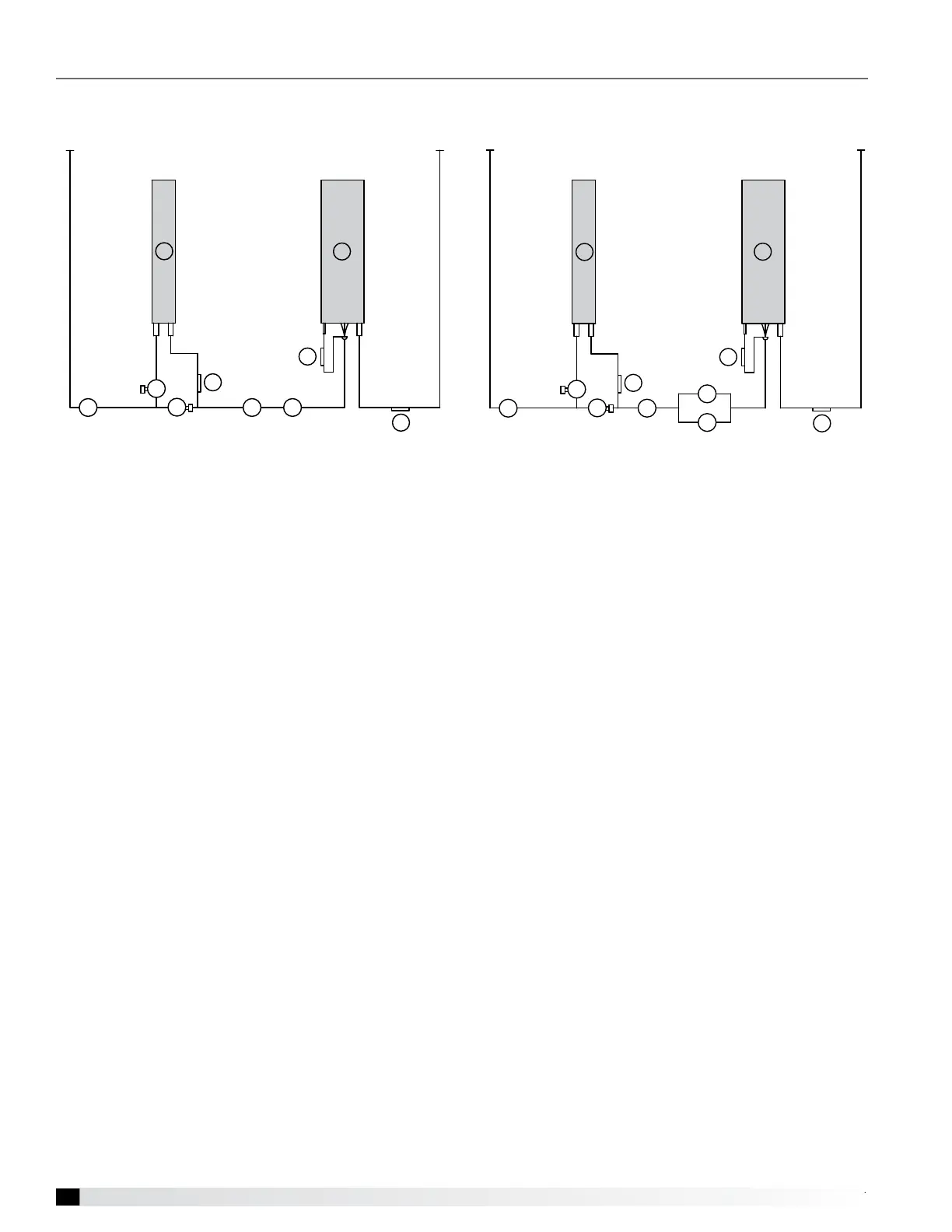

MPF-2-**-**-192, 240-1
1. Evaporative Coil
2. Gas Pipe Thermistor
3. Liquid Pipe Thermistor
4a. Linear Expansion Valve
4b. Linear Expansion Valve
5. Strainer
6. Solenoid Valve
7. Solenoid Valve
8. Reheat Coil
9. Strainer
10. Reheat Pipe Thermistor
MPF-1-**-**-96, 144 MPF-2-**-**-144-1
