Packaged and Split Rooftop Ventilator
© 2021 Mitsubishi Electric US, Inc.
PremiSys
Installation - Packaged DX

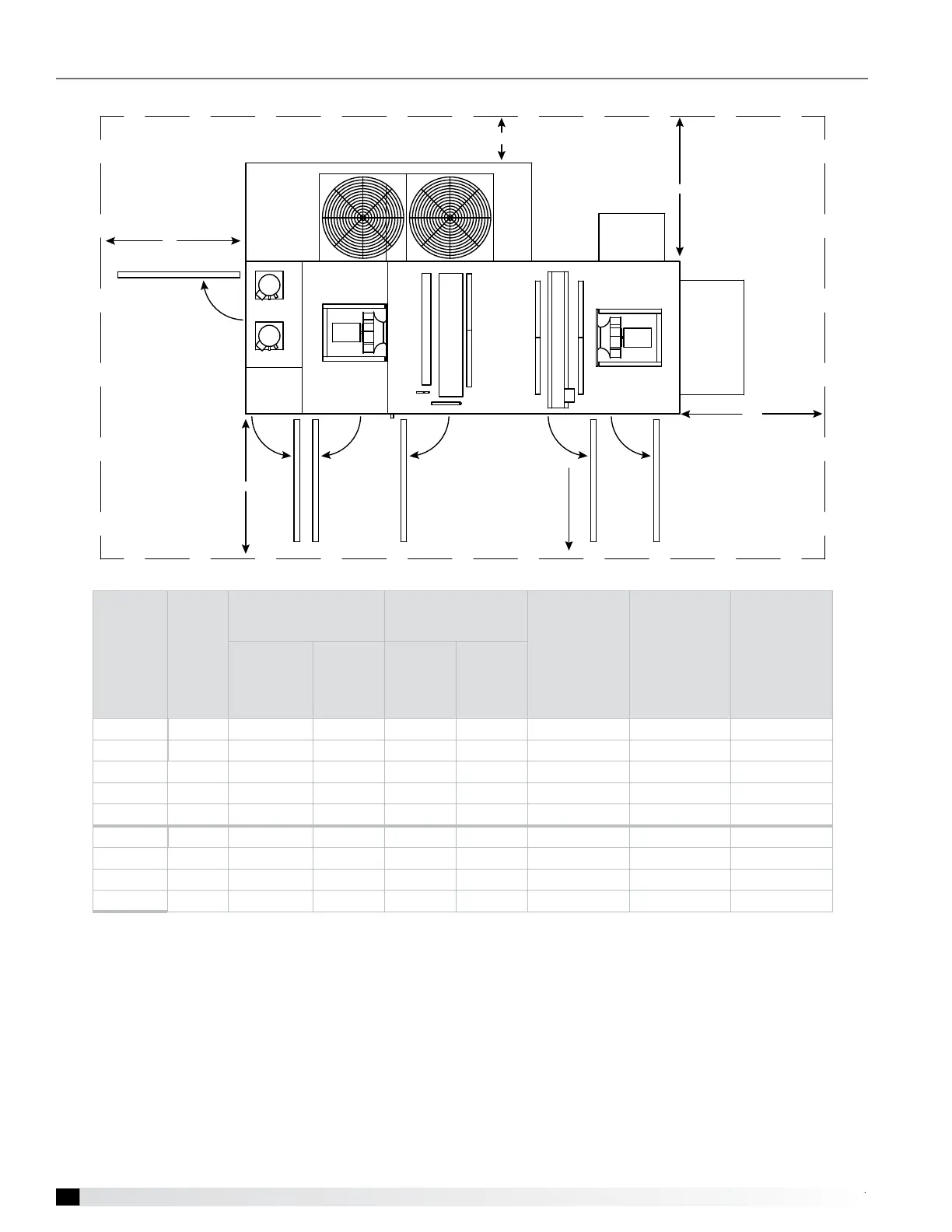

Service Clearance
EXHAUST AIR
WEATHERHOOD
COOLING COIL
HGRH COIL
CONTROL
CENTER
OUTDOOR AIR
WEATHERHOOD
WHEEL CASSETTE
OUTDOOR AIR FILTERS
EXHAUST AIR FILTERS
SUPPLY FAN
EXHAUST FAN
NA from Unit
ACS SIDE
CC
OAI
ACCESS DOOR
ACCESS DOOR ACCESS DOOR ACCESS DOOR ACCESS DOOR
CASSETTE REMOVAL
SUPPLY FILTERS
COMPRESSORS
CONDENSING SECTION
NA from CS
Model
ACS
Access
Side
CC
Control Cabinet End
OAI
Outdoor Air Intake
*NA
from Unit
NA
from
Condensing
Section
NA
from Piping
Vestibule
(not shown)
Other
Indoor
Mounted
with IG
Furnace
Outdoor
Mounted
Indoor
Mounted
MP-0-1 50 42 NA 36 NA 24 NA NA
MP-1-1 40 42 72 42 18 24 18 30
MP-2-1 36 58 72 42 18 24 18 30
MP-4-1 48 48 NA 87 NA 48 NA NA
MP-5-1
48 48 NA 60 NA 48 NA NA
MPE-1-1
40 42 72 42 18 24 18 30
MPE-2-1 36 58 72 42 18 24 18 30
MPE-4-1 48 48 NA 87 NA 48 NA NA
MPE-5-1
48 48 NA 60 NA 48 NA NA
All dimensions are shown in inches.
*No condensing section or piping vestibule, or unit has top condensing section.
