22
Important
The wires in the mains lead on this
appliance are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
• As the colours may not correspond
with the markings identifying the ter-
minals in your plug proceed as fol-
lows.
• The green and yellow wire must be
connected to the terminal in the plug
which is marked with the letter E or
with the earth symbol or coloured
green and yellow.
•The blue wire must be connected to
the terminal marked N or coloured
black.
• The brown wire must be connected to
the terminal marked L or coloured red.

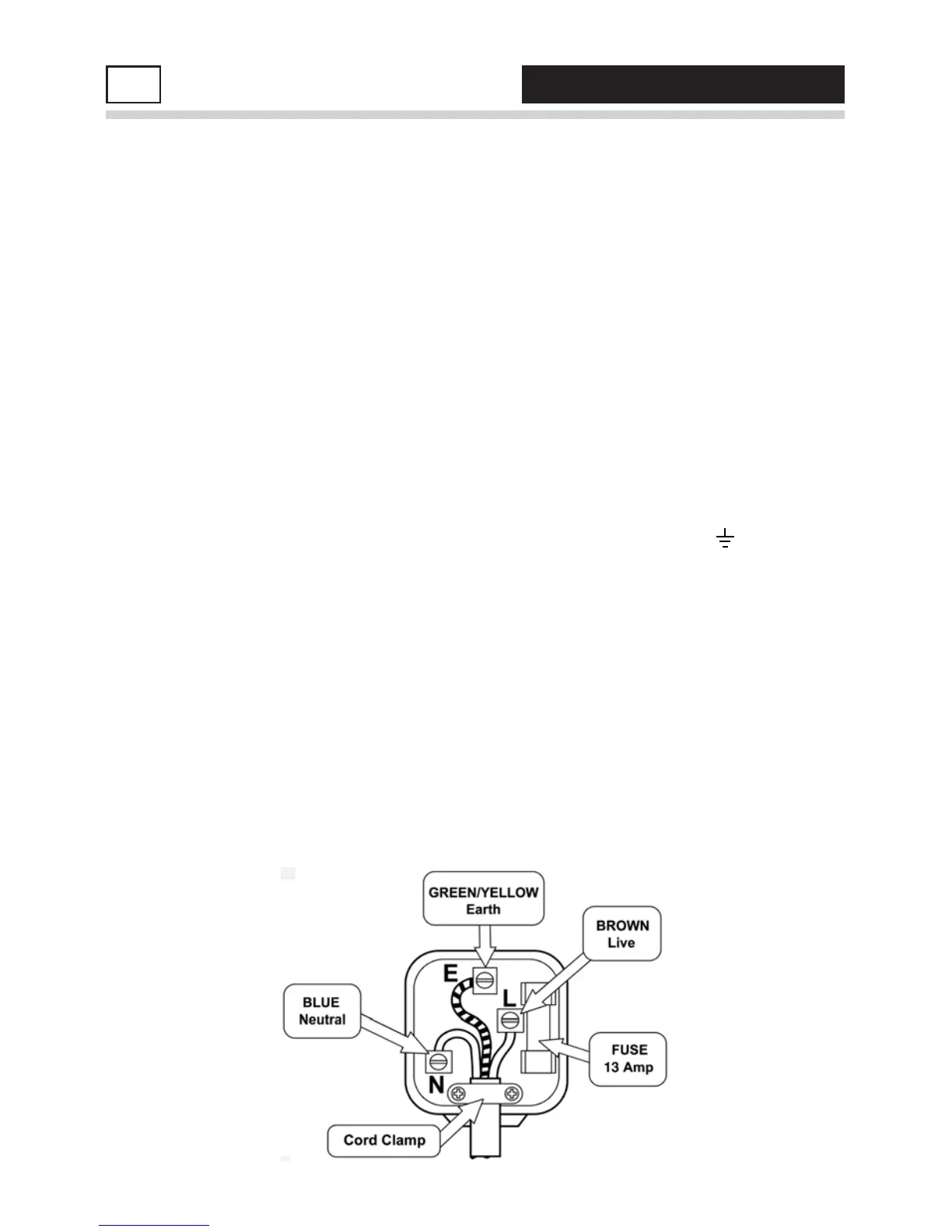

Fig. 6.1
ELECTRICAL SECTION
6
ELECTRICAL CONNECTION
For your safety please read the
following information
Warning: This appliance must
be earthed.
• The appliance must be connected to
a 220-240 volts 50 cycle AC supply
by means of a three pin socket, suit-
ably earthed and should be protected
by a 13 amp fuse in the plug or a 15
amp fuse in the consumer unit.
• The appliance is supplied with a
rewireable 13 amp 3 pin plug fitted
with a 13amp fuse. Should the fuse
require replacement, it must be
replaced with a fuse rated at 13 amp
and approved to BS1362.
• If the mains plug is unsuitable for the
socket outlet in your home or is
removed for any other reason, then
the cut off plug should be disposed
of safely to prevent the hazard of elec-
tric shock.
• There is a danger of electric shock if
the cut off plug is inserted into any 13
amp socket outlet.
• How to wire a 13 amp plug.
