VGA cable
Audio cable
• PC audio port
User manual Prestigio Multiboard
EN
EN - 7

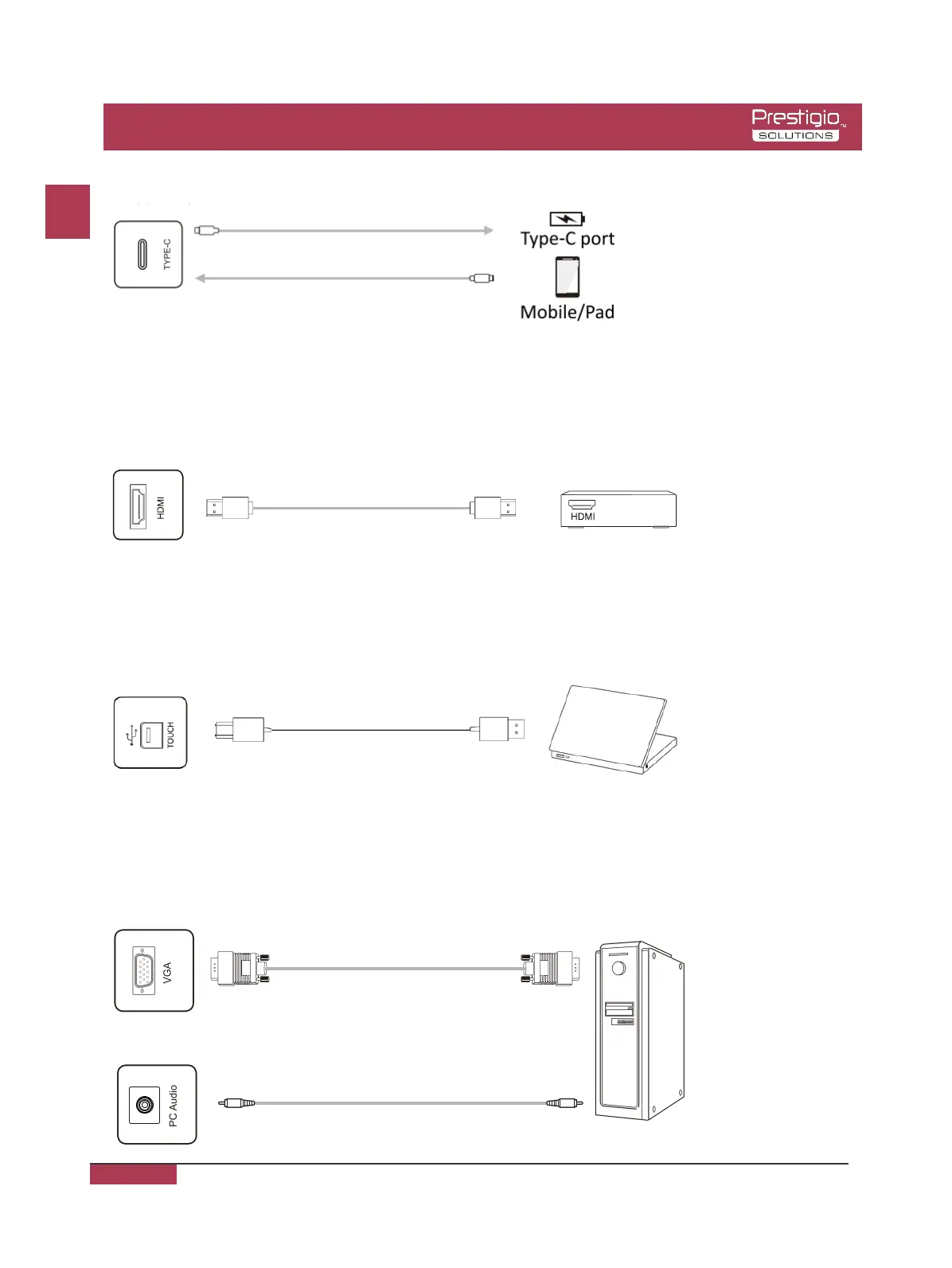

• Type-C port
HDMI cable
STB/player/PC/DVD
HDMI Output
Note: The maximum resolution supported by HDMI port is 4K@60HZ, please see the section
of technical parameters for the detailed signal formats. When 4K@60HZ signals are
played, the EDID version in the OSD menu should be switched to EDID2.0.
• TOUCH USB-port
__ USB touch control cable_____
PC
Note: 1. When the TOUCH USB port is connected to the same device with the signal source,
the external device can be operated by the TOUCH function.
2. The front panel touch port is compatible only with the front panel HDMI input.
PC
• VGA Audio/Video port
• HDMI-IN port
Note: 1. The Type-C port can support PD power supply (up to 5V, 3A), DP signal display (as
mobile and pad which can support Type-C display).
2. The signal quality depends on the quality of the Type-C cable, so please match
with certified standard wire.
