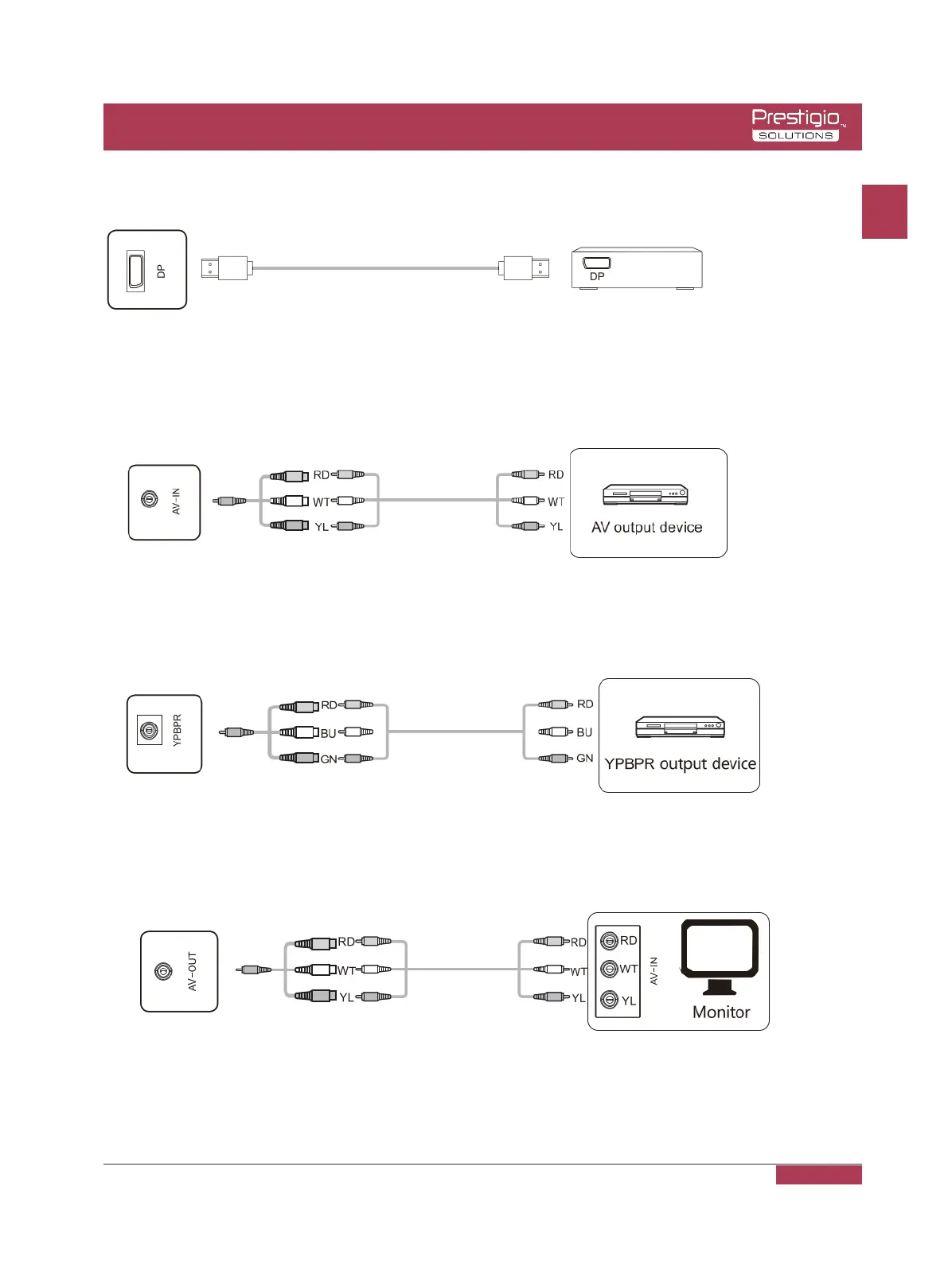

• AV-IN port
AV cable
Note: the type of AV-IN port is Ф13.5mm MINI port. For connecting signals, a MINI adapter
cable or a MINI adapter and an AV cable are required and connected as indicated by
the figure.
• YPBPR port
YPBPR cable
Note: the type of YPBPR port is Ф3.5mm MINI port. For connecting signals, a MINI adapter
cable and a YPBPR cable are required.
▪ Signal output ports
• AV-OUT port
AV cable
Note: the type of AV-OUT port is Ф3.5mm MINI port. For outputting signals, a MINI adapter
cable and an AV cable are required; for connecting signals, a MINI adapter is
required and connected as indicated by the figure.
• DP port
DP cable
DP output device
Note: the maximum resolution supported by DP port is 4K@60HZ. The signal quality
depends on length and quality of the DP cable, so please use the recommended
cables or those of famous brands on market.
