4-38 Controls and Instruments
DOB 1300-1556 PA-1639 Operator's Manual 2020 X3-45 Commuter

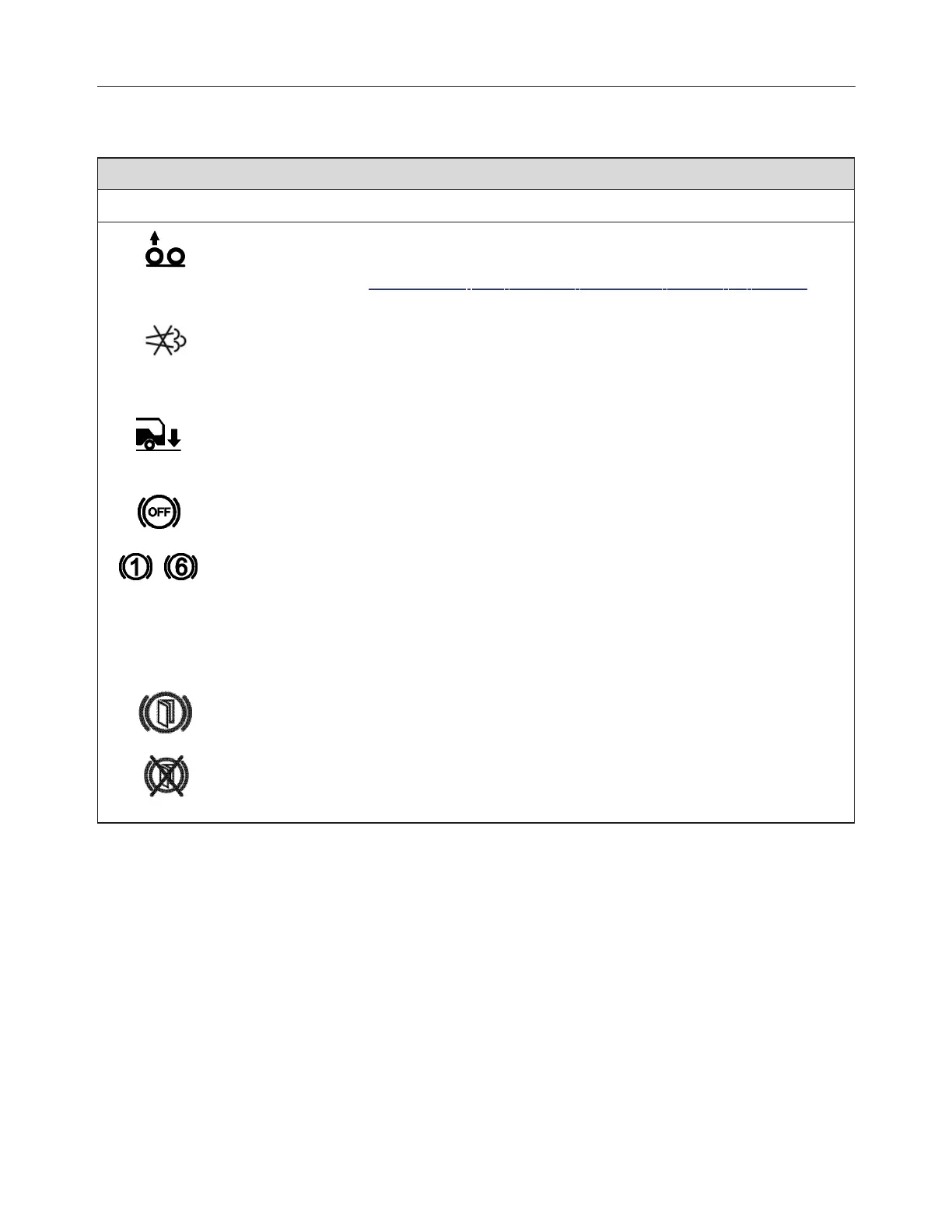

STATUS BAR PICTOGRAMS
These pictograms will appear in the status bar of the DID.
Status Bar Pictograms
PICTOGRAM DESCRIPTION
Tag Axle UNLOAD selected
Confirms that the automatic tag unload override valve is switched to the UNLOAD
position. Refer to "AUTOMATIC TAG UNLOAD OVERRIDE VALVE" on page37 for
further details.
DPF Regeneration inhibited
Confirms that IVN regeneration inhibit function is active because the vehicle is inside of
a geofence. When flashing, this pictogram indicates an IVN issue inhibiting
regeneration as well.
Kneeling/Front Suspension Active
Indicates that the front suspension is lowered (kneeling).
Allison Transmission Retarder
Confirms that the Allison transmission retarder is off.
...
Allison Transmission Retarder – Braking Level 0, 1, 2, 3, 4, 5, 6
Confirms the retarder hand lever position. Each position corresponds to a given
braking level. Refer to "TRANSMISSION RETARDER"in this section.
TEST Vehicle Test
Indicate that the vehicle test mode has been initiated manually.
Entrance door interlock
Confirms that the entrance door interlock is enabled.
Entrance door interlock disabled
Indicates that the entrance door interlock is disabled through the use of the entrance
door interlock cancel switch or the master interlock switch.
