Pride Mobility Bebop - Assembly and Disassembly

25
bebop

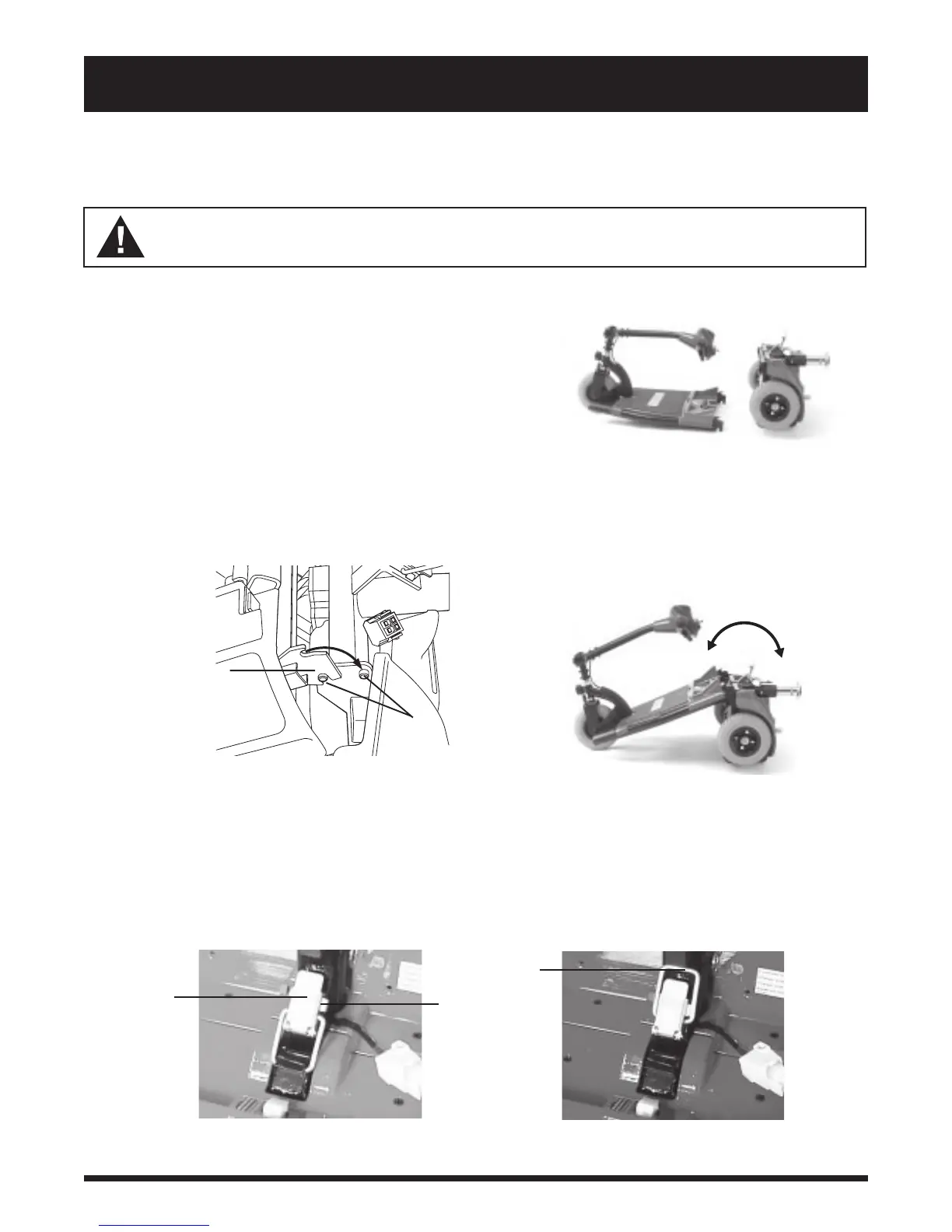

Figure 11. Frame Sections
I X . ASSEMBLY AND DISASSEMBLY
No tools are required to assemble or disassemble your PTV. Always assemble or disassemble your PTV on a
level, dry surface with sufficient room for you to work.
4. Loosen the tiller adjustment knob, raise the tiller to driving position, then retighten the tiller adjustment knob.
5. Secure the toggle latch. See figure 14.
n Lower the toggle latch buckle.
n Push back on the toggle latch so it locks into place.
Figure 14A. Toggle Latch (Unlatched)
TOGGLE
LATCH
TOGGLE
LATCH
RELEASE
BUTTON
Figure 14. Toggle Latch (Latched)
TOGGLE
LATCH
BUCKLE
2. Align the lower curved locking brackets of the front section with the corresponding pegs on the front of the rear
section. See figure 12.
3. Holding the seat post, slowly pivot the rear section forward until the curved locking brackets are fully con-
nected onto the top rear pegs. See figure 13.
PEGS
CURVED LOCKING
BRACKET
Figure 12. Frame Lockup Figure 13. Frame Positioning
ASSEMBLY
1. Position the front and rear sections of your PTV as shown in figure 11.
WARNING! Lifting weight beyond your physical capability may result in personal injury. Ask for
assistance when necessary before assembling or disassembling your PTV.
