I X . ASSEMBLY AND DISASSEMBLY
6. Connect the front-to-rear harness. See figure 15.
LOCKED
POSITION
UNLOCKED
POSITION
Figure 17A.
Tiller Lock
Knob (Locked)
Figure 17. Tiller Lock Knob
(Unlocked)

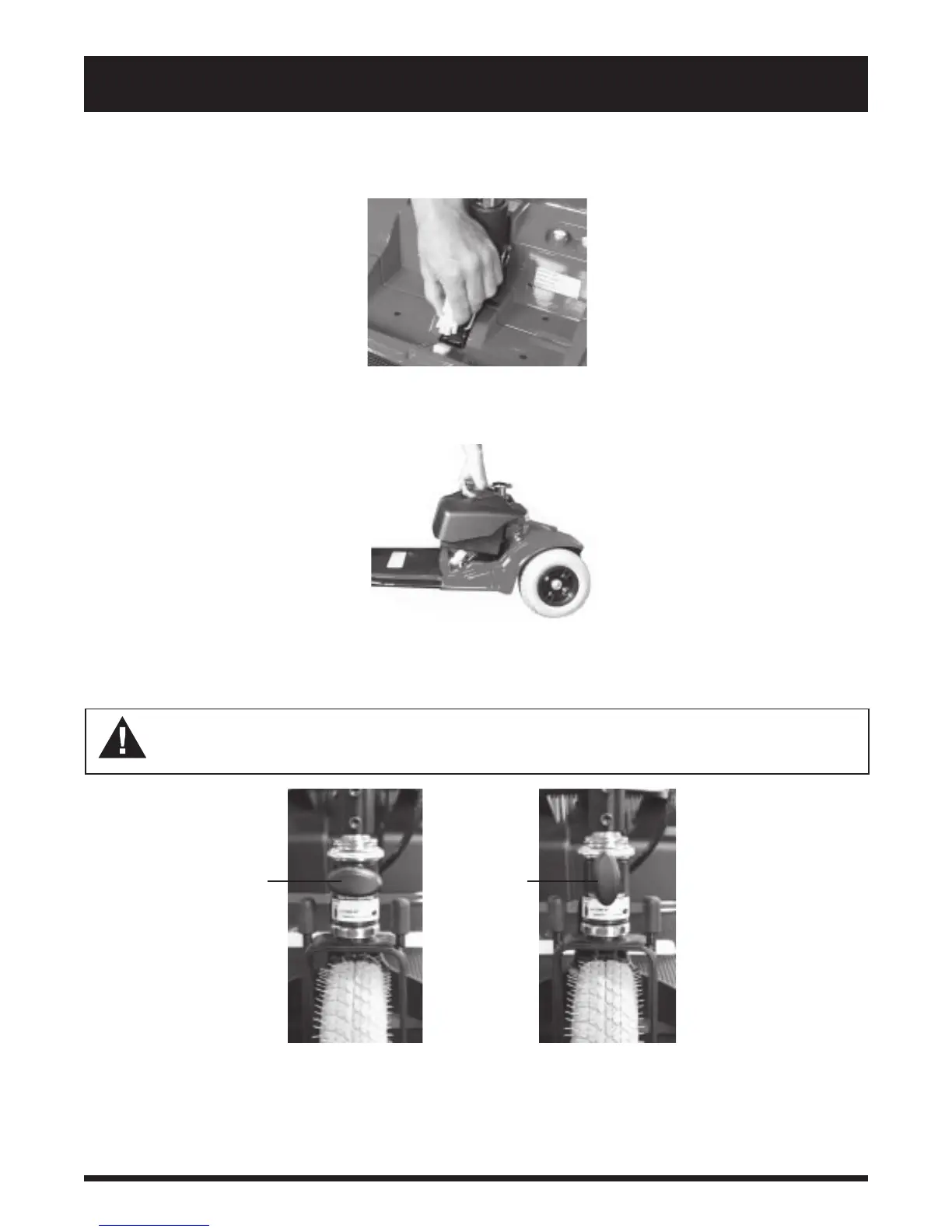

Figure 15. Front-To-Rear Harness
7. Replace the battery pack by lowering it straight down until its seated into place. See figure 16.
WARNING! Before getting onto your PTV always check that the tiller lock knob is in the unlocked
position. Attempting to ride your PTV with the tiller lock knob in the locked position can result in
personal injury.
8. Replace the seat and rotate it until it locks into correct position.
9. Unlock the front wheel by turning the tiller lock knob 90° counterclockwise. See figure 17.
Figure 16. Lowering/Lifting Battery Pack
