I X . ASSEMBLY AND DISASSEMBLY
DISASSEMBLY
You can disassemble the PTV into four pieces: the seat, the front section, the rear section, and the battery pack.
See figure 18.
Before disassembling the PTV, remove the key and place the manual freewheel lever in the backward (drive) position.
1. From the unlocked position (see figure 17), lock the front wheel by pushing the tiller lock knob in and turning
it clockwise 90°. See figure 17A.
2. Remove seat by lifting it straight up and off of the PTV.
3. Remove the battery pack. Grab the battery pack handle and pull the battery pack up and away from the PTV.
See figure 16.
4. Unplug the front-to-rear harness. See figure 15.
Toggle Latch Release
1. Push in the toggle latch release button while pulling forward on the toggle latch. See figure 14.
2. Rotate the toggle latch buckle over the top of the toggle latch until it snaps into its retainer. See figure 14A.
3. Loosen the tiller adjustment knob and lower the tiller until it is horizontal to the PTV floorboard.
4. Fully tighten the tiller adjustment knob.
Frame Separation
1. Push back on the seat post to pivot the PTV's rear section backwards until the rear section is standing verti-
cally on its rear bumper. See figure 13.
2. Lift the front section up until the lower pegs are no longer in the curved locking brackets. See figure 12.
3. Carefully lift the front section away from the rear section. See figure 11.

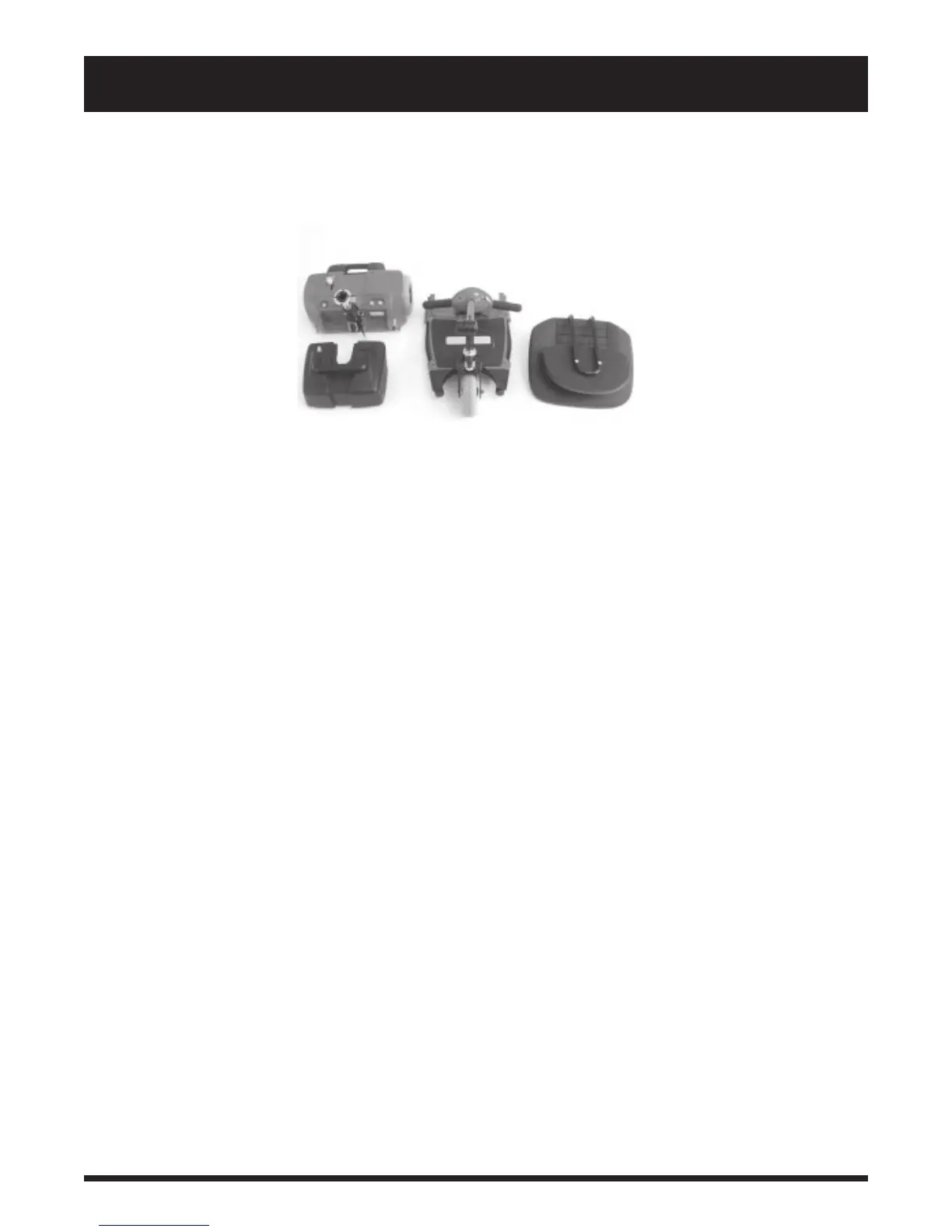

Figure 18. Disassembled PTV
BATTERY PACK
SEAT
FRONT SECTION
REAR SECTION
