REAR SECTION
The onboard battery charger (not shown), the charger power cord receptacle, the batteries (not shown), the
electronics module, the main circuit breaker (reset button), the ammeter, the manual freewheel lever, the anti-tip
wheels, and the motor/transaxle assembly (not shown) are located on the rear section of your Celebrity. See figure
8. Refer to IX. Disassembly and Assembly for instructions on removing the rear shroud.
V. YOUR CELEBRITY
Batteries
The batteries store the electrical energy that powers your Celebrity. See VI. Batteries and Charging.
Main Circuit Breaker
When the voltage in your Celebritys batteries becomes low or your Celebrity is heavily strained because of
excessive loads or steep inclines, the main circuit breaker may trip to protect your Celebritys motor and electron-
ics from damage. See figure 8.
n The main circuit breaker reset button pops out when the breaker trips.
n When the breaker trips, the entire electrical system of your Celebrity shuts down.
n Allow a minute or two for your Celebritys electronics to rest.
n Push in the reset button to reset the breaker.
n If the breaker trips frequently, you may need to charge your batteries more often. You may also need to have
your Pride Provider perform a load test on your Celebritys batteries.
n If the main circuit breaker trips repeatedly, see your authorized Pride Provider for service.

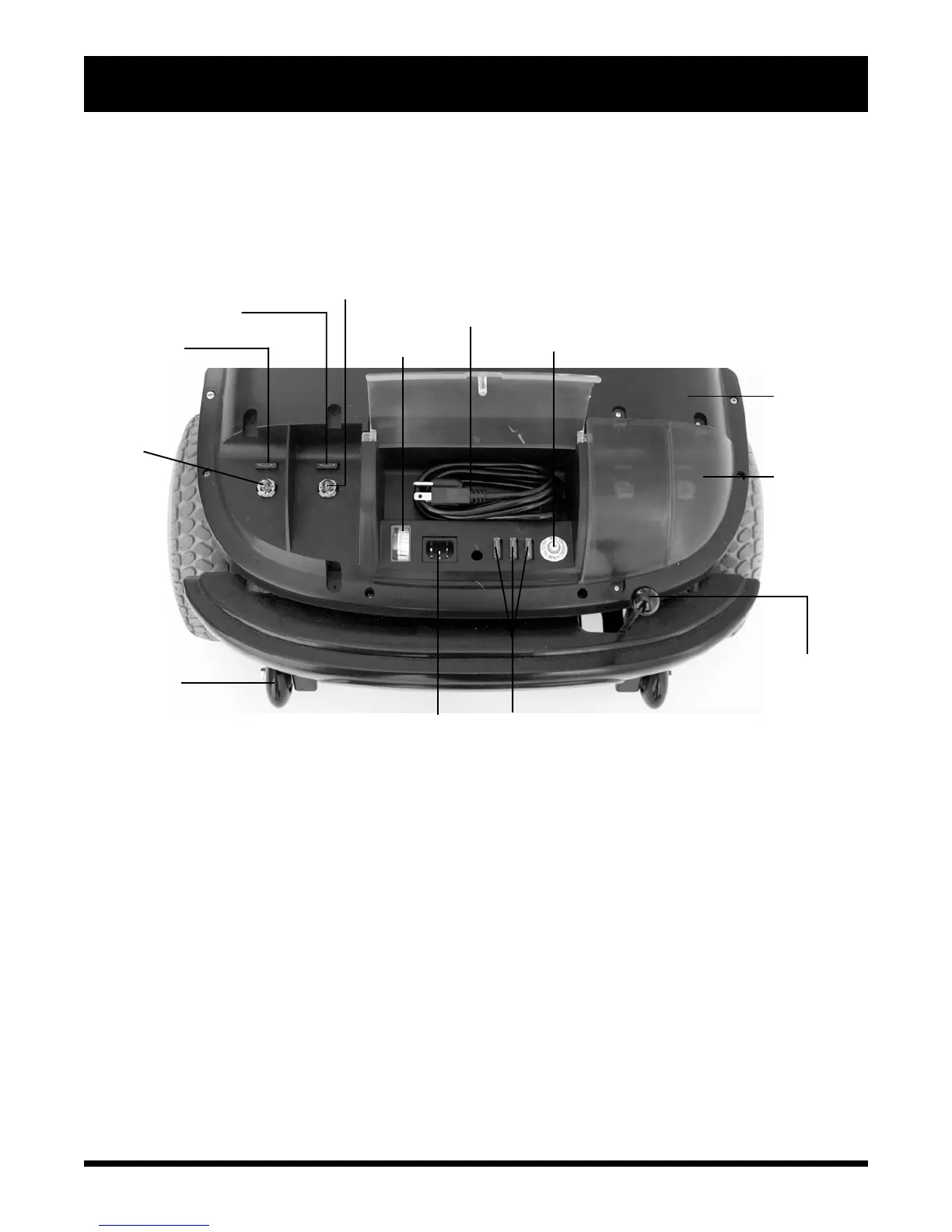

Figure 8. Rear Section (left Light Cover Removed For Clarity)
AMMETER
MAIN CIRCUIT BREAKER (RESET BUTTON)
CHARGER POWER CORD STORAGE COMPARTMENT
CHARGER POWER CORD RECEP-
TACLE
TURN
SIGNAL
LIGHT BULB
ANTI-TIP WHEEL
MANUAL FREEWHEEL
LEVER
RUNNING LIGHT FUSE
RUNNING LIGHT LIGHT BULB
ELECTRONICS
MODULE
FUSES
TURN SIGNAL
FUSE
LIGHT COVER
