Manual Freewheel Lever
Whenever you need or want to push your Celebrity for short distances, you can put it in manual freewheel mode.
n Pull up on the manual freewheel lever to disable the drive system and the brake system.
n You may push your Celebrity.
n Push down on the manual freewheel lever to reengage the drive system and the brake system and take your
Celebrity out of freewheel mode.
Motor/Transaxle Assembly
The motor/transaxle assembly is the electromechanical unit that converts the electrical energy of your Celebritys
batteries into the controlled mechanical energy that drives the Celebritys wheels.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your Celebrity. Do not, under any circumstances,
remove the anti-tip wheels from your Celebrity.
Charger Power Cord Receptacle
The charger power cord plugs into your Celebritys battery charger by means of the charger power cord receptacle.
Fuses
The fuses help protect your Celebritys lighting, control console assembly, and charging systems from receiving an
overload of electrical current. The fuses used in the Celebrity are the same type automobiles use. See figure 8.
If a fuse must be replaced, use only the specified amp fuse. See XII. Care and Maintenance.

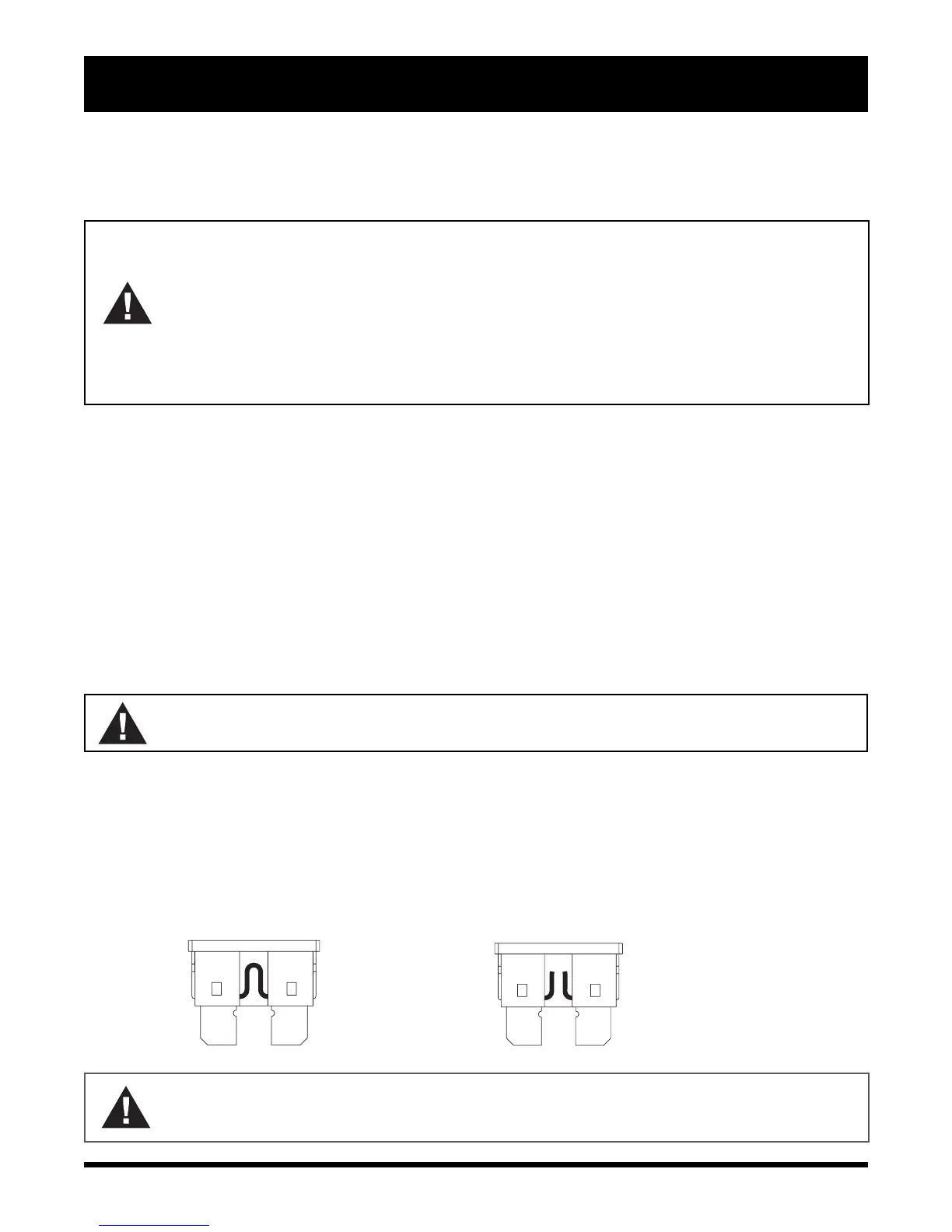

Figure 9. Working Fuse Figure 10. Blown Fuse (Replace)
V. YOUR CELEBRITY
WARNING! When your scooter is in manual freewheel mode, the braking system is
disengaged.
n Disengage the drive motors only on a level surface.
n Ensure the key is removed from the key switch.
n Stand behind the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
n After you have finished pushing your scooter, always return it to the drive mode to lock
the brakes.
Failure to heed the above could result in personal injury and/or damage to your scooter.
WARNING! Do not remove the anti-tip wheels or modify your scooter in any way that is not
authorized by Pride.
WARNING! The replacement fuse must exactly match the rating of the new fuse. Failure
to use properly rated fuses may cause damage to the electrical system and may result in
personal injury
