27
Go-Go
VIII. DISASSEMBLY AND ASSEMBLY
WARNING! After assembling the Go-Go, make absolutely certain the tiller lock knob is in the
unlocked position before attempting to ride your scooter.

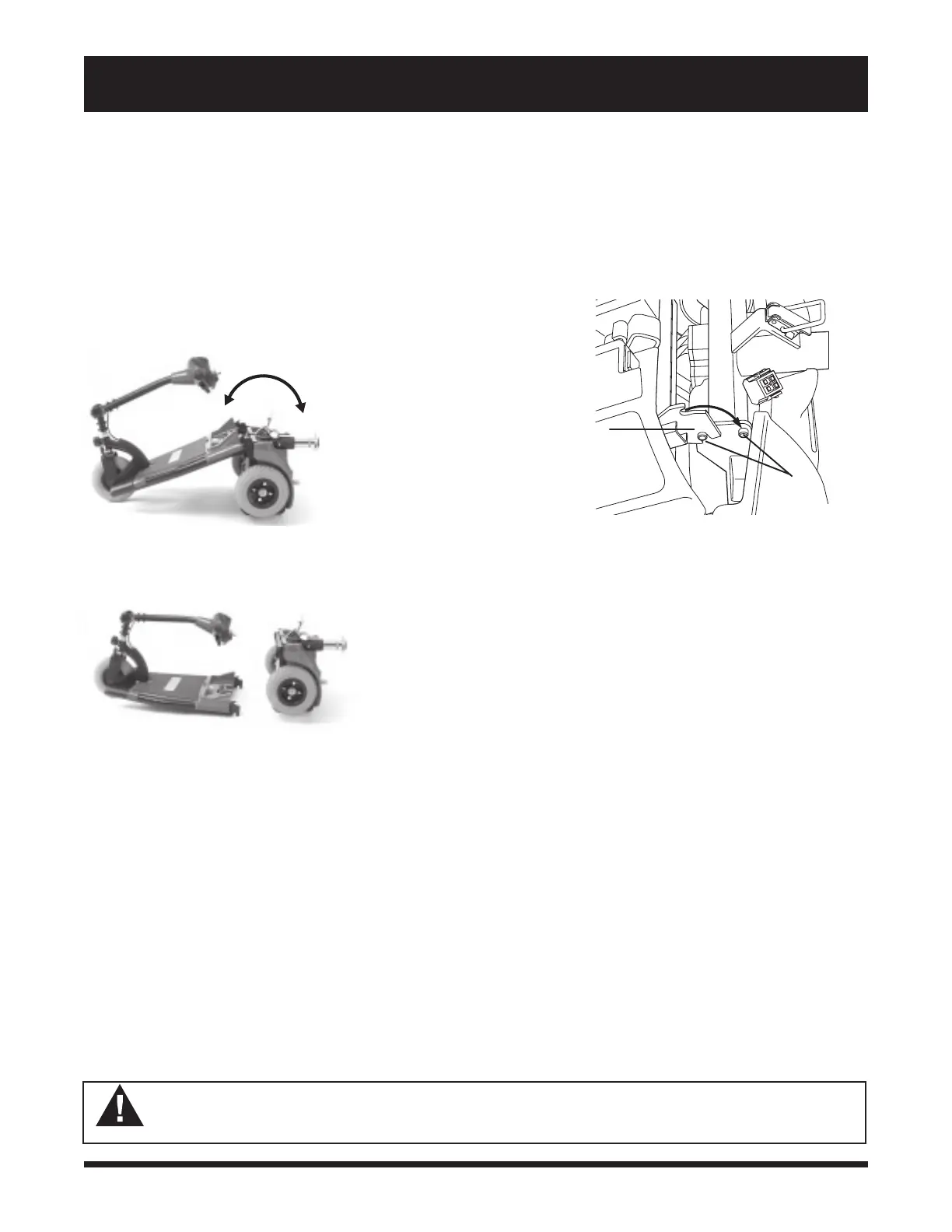

Figure 16. Frame Positioning
PEGS
CURVED LOCKING
BRACKET
Figure 17. Frame Lockup
Frame Separation
1. Loosen the tiller adjustment knob and lower the tiller until it is horizontal to the scooter floorboard.
2. Fully tighten the tiller adjustment knob.
3. Push back on the seat post to pivot the scooters rear section rearwards until the rear section is standing
vertically on its rear bumper. See figure 16.
4. Lift the front section up until the lower pegs are no longer in the curved locking brackets. See figure 17.
5. Carefully lift the front section away from the rear section. See figure 18.
ASSEMBLY
1. Position the front and rear sections of your scooter as shown in figure 18.
2. Align the lower curved locking brackets of the front section with the corresponding pegs on the front of the rear
section. See figure 17.
3. Holding the seat post, slowly pivot the rear section forward until the curved locking brackets are fully con-
nected onto the top rear pegs. See figure 16.
4. Loosen tiller adjustment knob, raise the tiller, then retighten the tiller adjustment knob.
5. Secure the toggle latch. See figure 15.
n Lower the toggle latch buckle.
n Push back on the toggle latch so it locks into place.
6. Connect the front-to-rear harness.
7. Reinstall the battery pack by lowering it into place.
8. Replace the seat and rotate it until it locks into its correct position.
9. Unlock the front wheel by turning the tiller lock knob 90° anticlockwise. See figure 12.
Figure 18. Frame Sections
