VII. COMFORT ADJUSTMENTS
TILLER ANGLE ADJUSTMENT
WARNING! Remove the key from the key
switch before adjusting the tiller or the
seat. Never attempt to adjust the tiller or
the seat while the Travel Scooter is in
motion.
Your Travel Scooter is equipped with an adjustable pivoting tiller.
1. While supporting the tiller, turn the tiller adjustment knob
counterclockwise to loosen the tiller. See figure 13.
2. Move the tiller to a comfortable position.
3. Turn the tiller adjustment knob clockwise to secure the tiller
in position.
NOTE: In order to fully lower the tiller, you must first
remove the seat and battery pack. Remove the seat by
pulling it straight up and off of the Travel Scooter.
SEAT ROTATION
The seat rotation lever, located on the right side of the seat base,
secures the seat into several positions.
1. Pull up on the seat rotation lever to disengage the seat. See
figure 14.
2. Rotate the seat to the desired position.
3. Release the lever to lock the seat into place.
ARMREST WIDTH ADJUSTMENT
The armrest width can be adjusted inward or outward.
1. Loosen the armrest adjustment knobs. See figure 14.
2. Use the attached ring to pull and remove the detent pins.
3. Slide the armrests in or out to the desired width.
4. Align the adjustment holes on the seat frame and armrest,
then reinsert the detent pin.
5. Tighten the armrest adjustment knobs.
NOTE: Pivot the armrests upward to aid in getting onto
and off of your Travel Scooter.

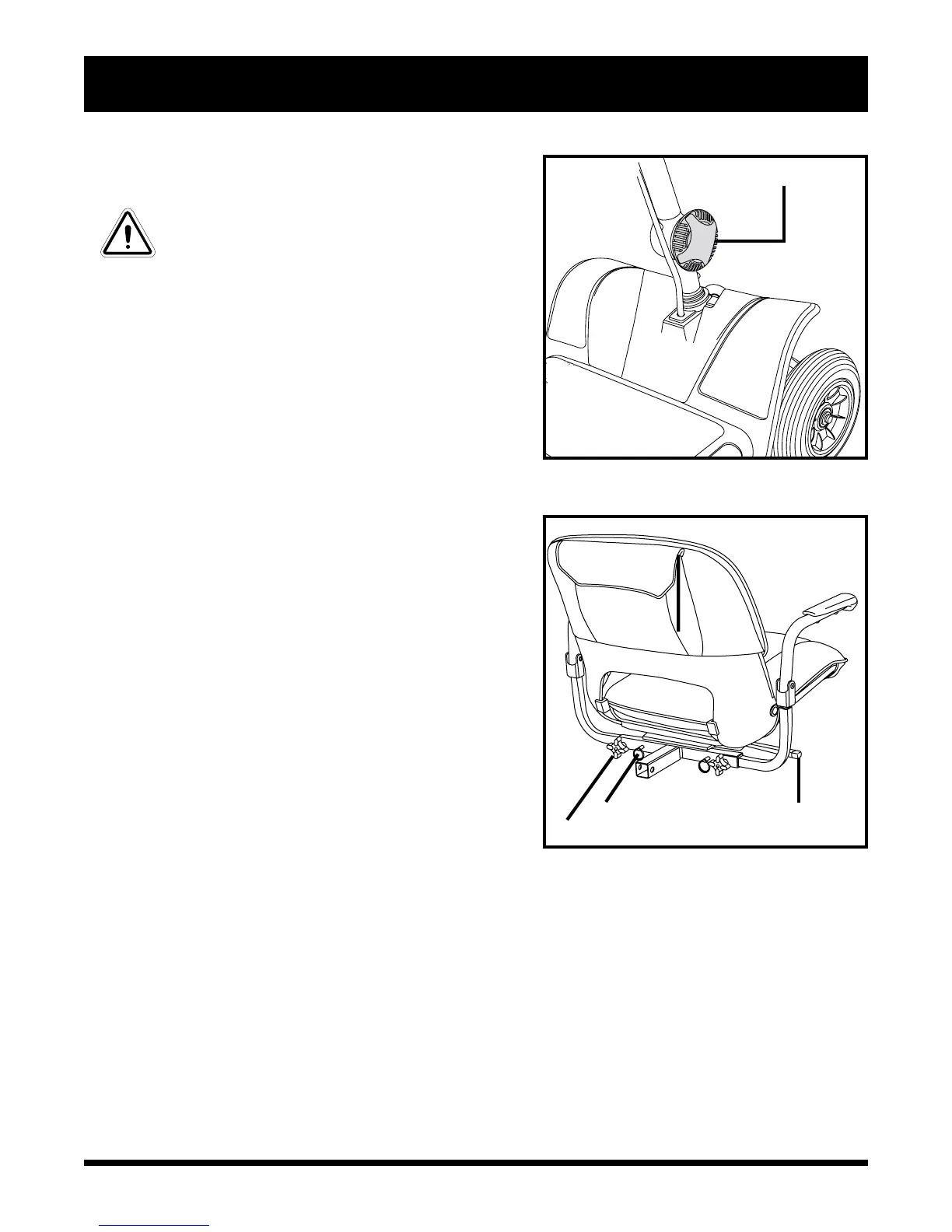

Figure 13. Tiller Adjustment Knob
TILLER ADJUSTMENT
KNOB
Figure 14. Seat Adjustment
DETENT PIN
ARMREST ADJUSTMENT KNOB
SEAT ROTATION LEVER
