VIII. DISASSEMBLY AND ASSEMBLY
DISASSEMBLY
You can disassemble the Travel Scooter into five
pieces: the seat, the front section, the rear section, the
basket, and the battery pack. See figure 16. No
tools are required to disassemble or assemble your
Travel Scooter. Always disassemble or assemble your
Travel Scooter on a level, dry surface with sufficient
room for you to work and move around—about five
feet (1.5 meters) in all directions. Remember that some
Travel Scooter components are heavy and you may
need assistance when lifting them.
WARNING! Do not lift weight
beyond your physical capability.
Ask for assistance when necessary
while disassembling or assembling
your Travel Scooter.
SEAT
REAR SECTION BATTERY PACK
BASKET
FRONT SECTION

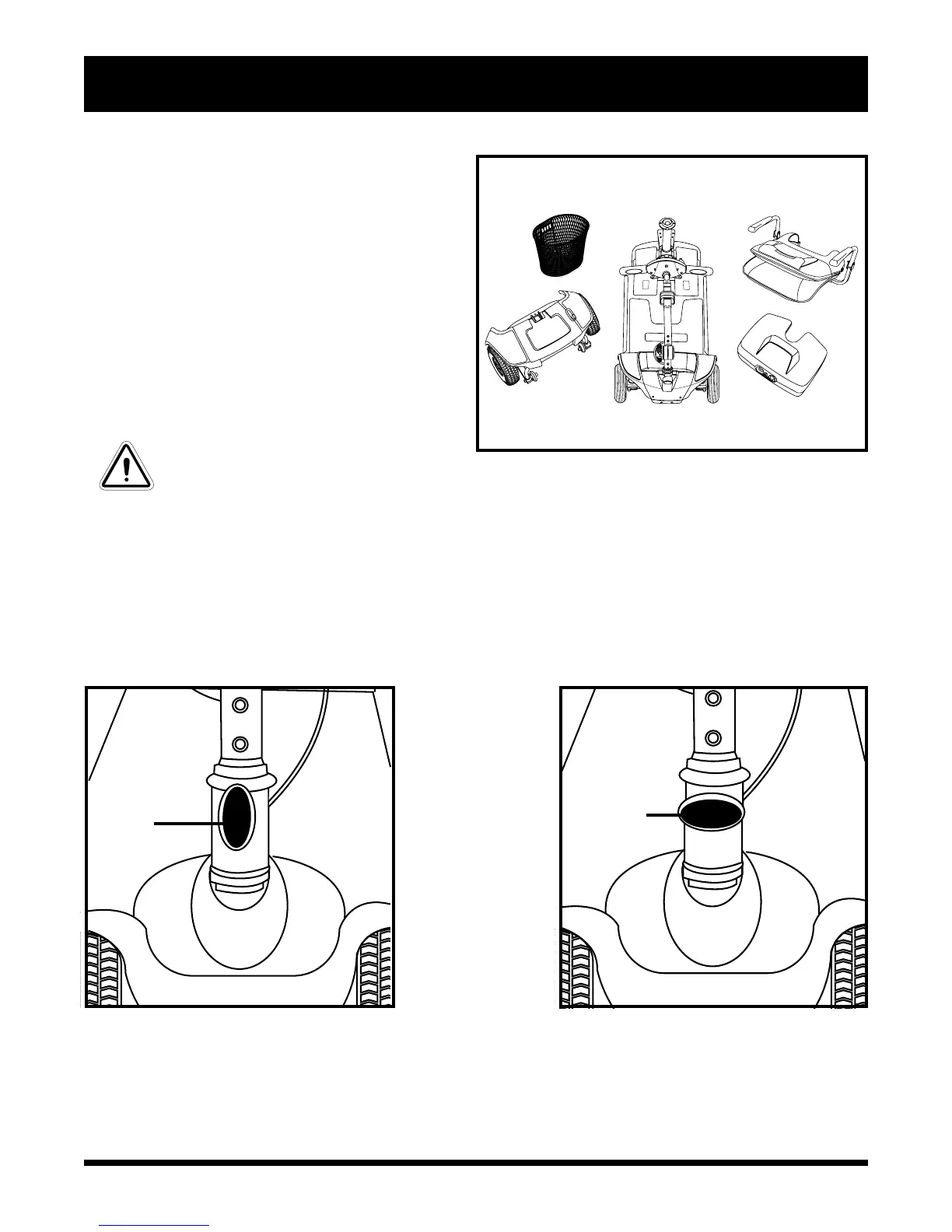

Figure 16. Disassembled Travel Scooter
1. Lock the tiller in the straight ahead position by pushing the tiller lock knob in and turning it clockwise 90°. See
figure 17. The front wheel must face forward in order to lock the tiller.
2. Remove the seat by lifting it straight up and off of the Travel Scooter. If you encounter resistance when
removing the seat, disengage the seat rotation lever and swivel the seat back and forth while lifting up on
the seat.
3. Remove the battery pack from the Travel Scooter.
Figure 17.
Tiller Lock Knob (Locked)
Figure 18. Tiller Lock Knob (Unlocked)
Frame Separation
1. Lower the tiller and tighten the tiller adjustment knob.
2. Lift up on the frame release lever until the frame hooks are no longer resting on the lower frame tube. See figure 19.
3. Slowly separate the two sections of the Travel Scooter. See figure 19.
LOCKED
POSITION
UNLOCKED
POSITION
