SEAT HEIGHT ADJUSTMENT
The seat can be repositioned to dierent heights. See gure 19.
1. Loosen the cam lever.
2. Remove bowtie cotter pin from clevis pin by rotating it and
removed it from the hole in the end of the clevis pin.
3. Remove clevis pin from the seat post.
4. Raise or lower the seat and its attached seat post to the
desired seat height
5. While holding the seat at the desired height, align the
adjustment holes of the seat with the lower seat post slot.
6. Fully insert clevis pin
7. Insert the open end of bowtie cotter pin into the hole at the
end of the clevis pin and rotate it until the rounded section is
around the clevis pin.
8. Tighten the cam lever.
1
2
3

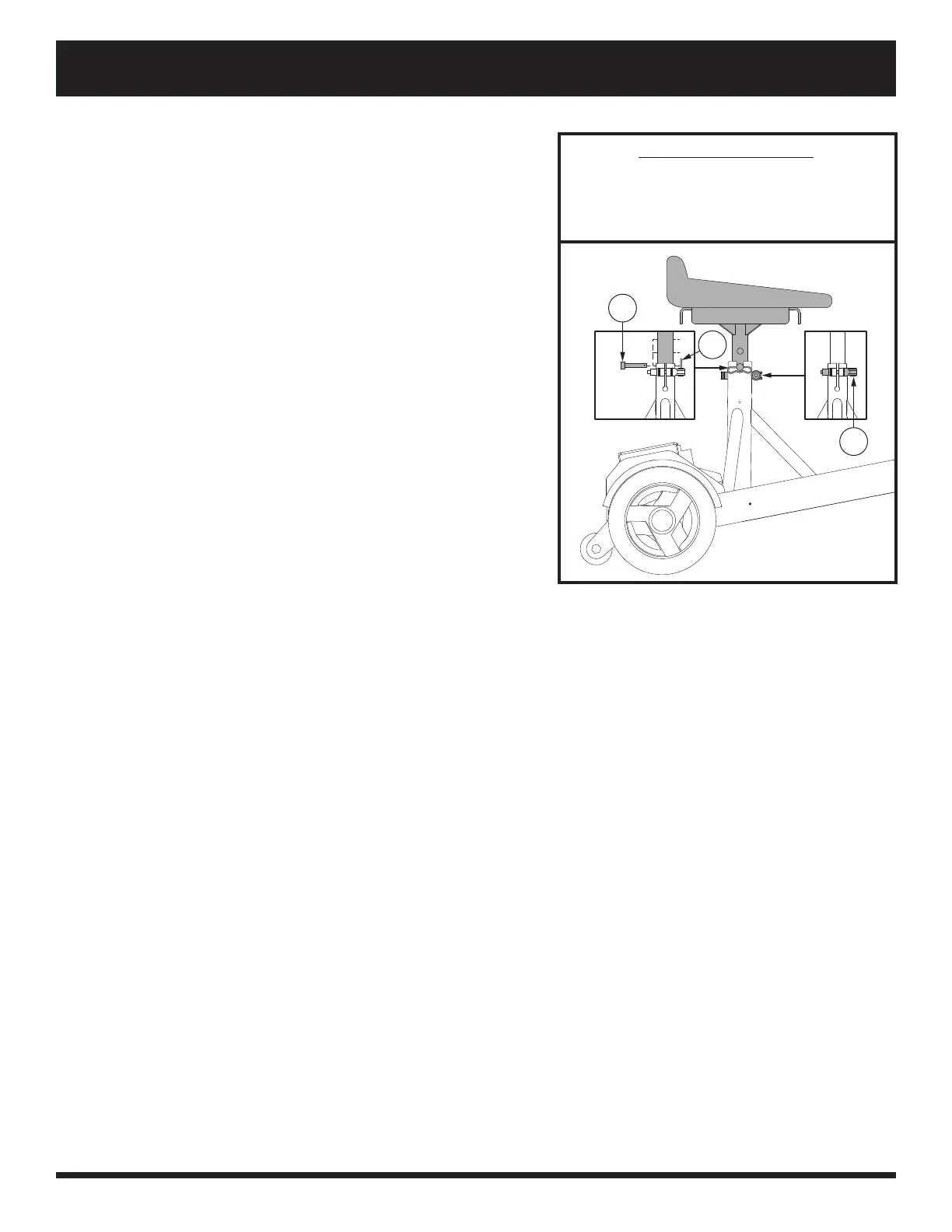

Figure 19. Seat Height Adjustment
IDENTIFICATION KEY
1. Clevis Pin
2. Bowtie Cotter Pin
3. Cam Lever
