SEATBACK ADJUSTMENT
WARNING! Do not operate your
scooter with the seatback in a
reclined position.
WARNING! Always keep your back
pressed firmly against the
seatback while adjusting the angle.
To adjust your scooter's reclining seat, perform
these steps. See figure 11A.
1. With your back pressed up against the seatback,
lift up on the seatback adjustment lever and
lean forward or rearward to adjust the seatback
angle.
2. Release the seatback adjustment lever once the
seat is in a comfortable riding position.
VI. COMFORT ADJUSTMENTS
ARMREST ANGLE ADJUSTMENT
The armrest angle of your scooter can be adjusted
upward or downward by turning the adjustment
dial. See figure 11B.
NOTE: Pivot the armrests upward to make getting
onto and off of your scooter easier.
SEAT HEIGHT ADJUSTMENT
You can change the seat height to one of three posi-
tions in 1 in. (2.5 cm) increments. See figure 11.
Changing the seat height:
1. Turn the scooter off and place the manual free-
wheel lever in drive mode.
2. Remove the seat and rear shroud. See VII.
“Disassembly and Assembly.”
3. Loosen and remove the seat height adjustment
bolt, bolt-nut, and washers.
4. Slide the upper seat post up or down in the
lower seat post and align the adjustment holes
on both posts.
5. With one washer on the seat height adjustment
bolt, insert it through the adjustment holes of
both the upper and lower seat posts. Reinstall
the other washer and bolt-nut and tighten.
6. Reinstall the shroud.
7. Reinstall and secure the seat into place.

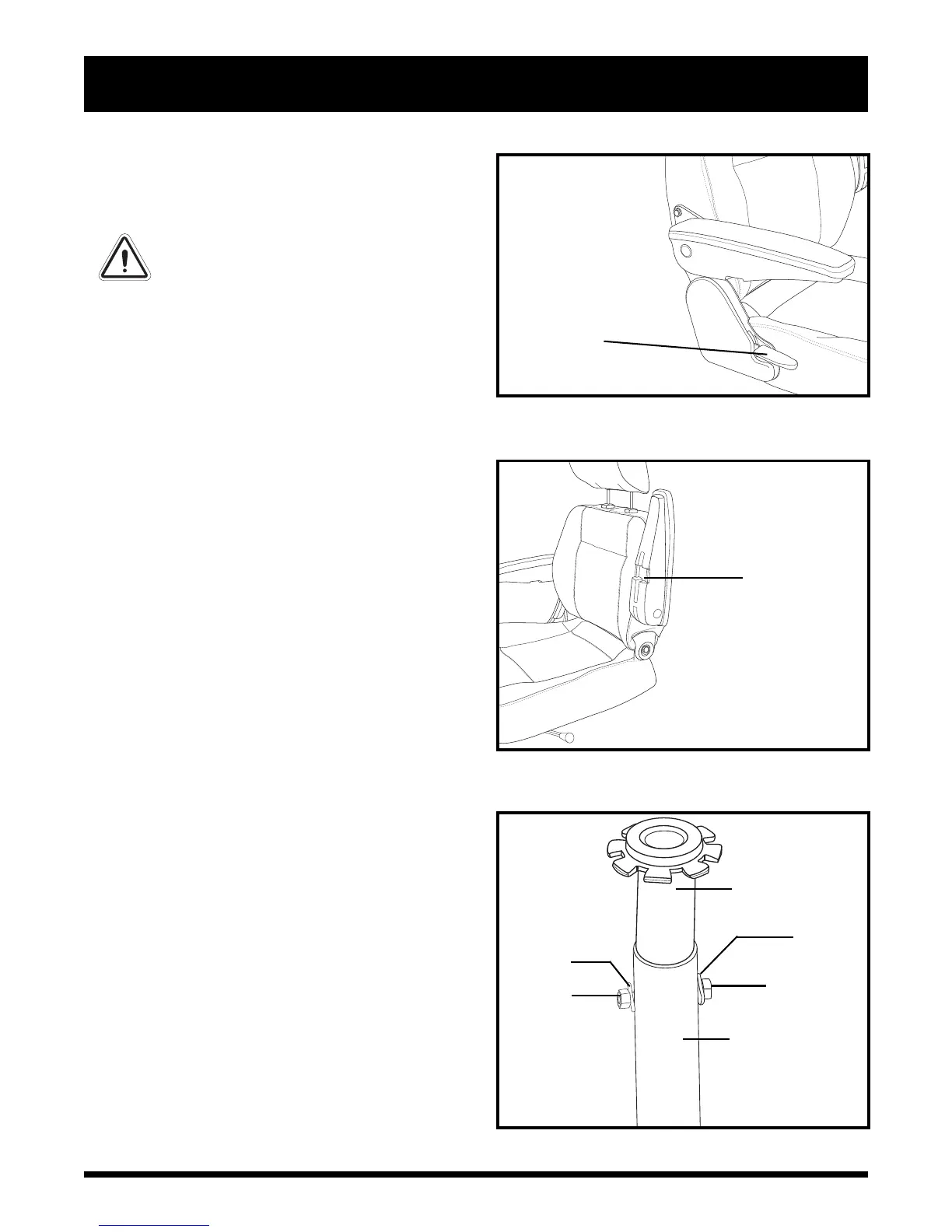

Figure 12. Seat Height Adjustment
LOWER SEAT POST
UPPER SEAT POST
BOLT-NUT
WASHER
SEAT HEIGHT
ADJUSTMENT BOLT
WASHER
Figure 11B. Armrest Angle Adjustment
ADJUSTMENT DIAL
Figure 11A. Seatback Adjustment
SEATBACK
ADJUSTMENT
LEVER
