Legend XL www.pridemobility.com 33
VII. DISASSEMBLY AND ASSEMBLY
DISASSEMBLY
You can disassemble the scooter into seven pieces: the seat, the front section, the rear section, the rear
shroud, the basket, and the batteries. See figure 13. Place the scooter in an area where you have sufficient
clearance to move the parts around. You need about five feet (1.5 meters) in all directions. You may need
assistance to lift some of the scooter components.
1. Place the manual freewheel lever in the drive position.
2. Lift the seat up and off the scooter.
3. Gently pull the shroud up and off of the rear section
of the scooter.
4. Disconnect the battery strap.
5. Unplug both T-handle battery harnesses. See figure 14.
6. Remove the batteries.
7. Unplug the front-to-rear harness. See figure 14.
WARNING! Failure to unplug both T-
handle battery harnesses and the front-
to-rear harness prior to separating the
front and rear sections could result in
permanent damage to the scooter.
No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your
scooter on a level, dry surface with sufficient room for you to work and move around your scooter. Keep
in mind that the disassembled sections of the scooter take up more floor space than the assembled scooter.
WARNING! Do not lift beyond your physical capability. Ask for assistance when
necessary while disassembling or assembling your scooter.
SEAT
REAR SHROUD
REAR SECTION
BATTERIES
BASKET
FRONT SECTION

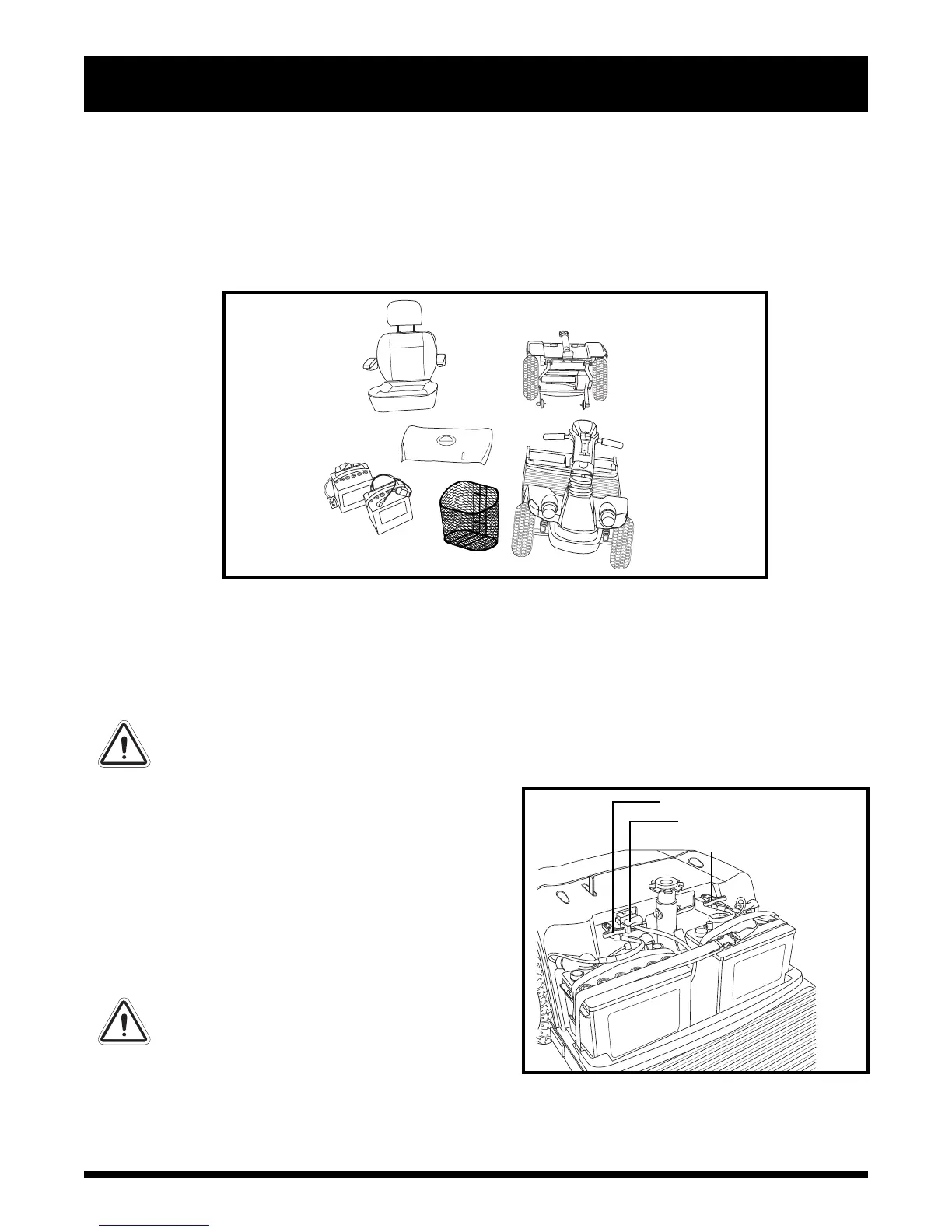

Figure 13. The Legend XL Disassembled
Figure 14. Harness Connections
FRONT-TO-REAR HARNESS
T-HANDLE BATTERY HARNESS
T-HANDLE BATTERY HARNESS
