www.pridemobility.com Outback
III. YOUR SCOOTER
Manual Freewheel Levers
Whenever you want to push your scooter for short distances, you can put it in manual freewheel mode. The
manual freewheel levers are located on the end of the motors at the rear of the scooter. See figure 6A.
1. Remove the key from the key switch.
2. Push down on both manual freewheel levers to disable the drive and the brake systems. This will enable
you to push the scooter.
3. Pull up on both manual freewheel levers to reengage the drive and the brake systems and take your
scooter out of freewheel mode.
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
 Disengage the drive motors only on a level surface.
 Ensure the key is removed from the key switch.
 Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on
a scooter to do this.
 After you have finished pushing your scooter, always return it to drive mode to lock
the brakes.
Charger Power Lead
The charger power lead is connected to the scooter’s onboard battery charger. When plugged into an
electrical outlet, it will charge the scooter’s batteries.
Motor Assembly
The motor assembly is an electromechanical unit that converts electrical energy from your scooter’s bat-
teries into the controlled mechanical energy that drives the scooter’s wheels.

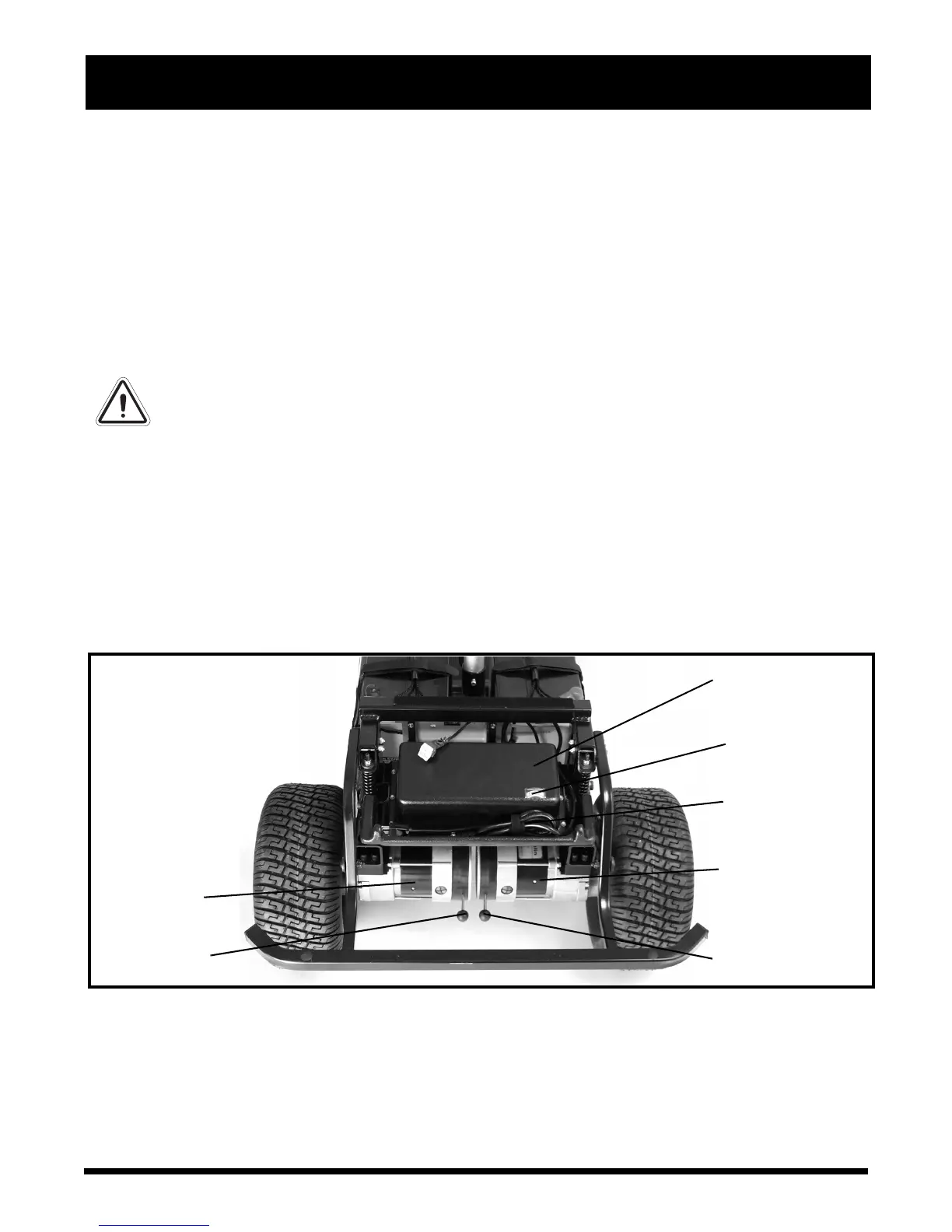

Figure 6A. Rear Section
UTILITY TRAY COVER
MANUAL FREE-
WHEEL LEVER
CHARGER POWER
LEAD
MOTOR/TRANSAXLE
ASSEMBLY
MANUAL FREEWHEEL
LEVER
AMMETER
MOTOR/
TRANSAXLE
ASSEMBLY
