VI. COMFORT ADJUSTMENTS
TILLER ANGLE ADJUSTMENT
You can adjust the tiller angle to four different positions.
1. Pull up on the tiller adjustment lever. See figure 9.
2. Move the tiller to a comfortable position.
3. Release the tiller adjustment lever. The tiller will remain in
that position.
NOTE: In order to lower the tiller to its lowest position, you
must first remove the seat and both batteries.
SEAT HEIGHT ADJUSTMENT
Your scooter’s seat can be repositioned to one of three differ-
ent heights.
1. Remove the seat from your scooter. See figure 10.
2. Use the attached ring to pull and remove the ball detent pin
from the lower seat post. See figure 11.
3. Raise or lower the upper seat post to the desired seat
height.
4. While holding the upper seat post at that height, match up
the holes in the upper seat post and the lower seat post.
5. Fully insert the ball detent pin.
6. Replace the seat.

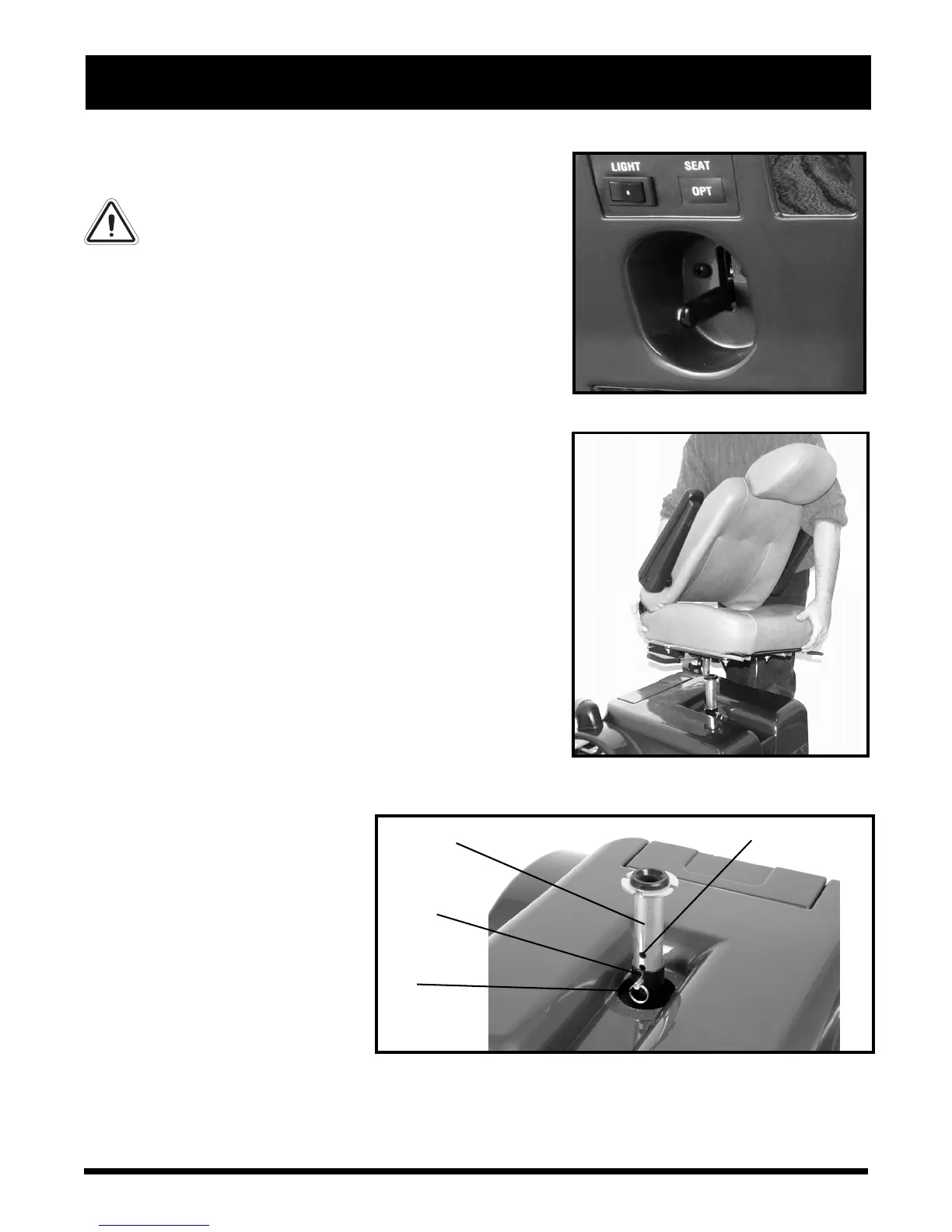

Figure 9. Tiller Adjustment Lever
UPPER
SEAT POST
Figure 10. Seat Removal
Figure 11. Seat Height Adjustment
LOWER SEAT
POST
WARNING! Remove the key from the key
switch before adjusting the tiller or the
seat. Never attempt to adjust the tiller or
the seat while the scooter is in motion.
BALL DETENT
PIN
