VI. COMFORT ADJUSTMENTS
LUMBAR
SUPPORT
ADJUSTMENT
DIAL
HEADREST
SEATBACK
ADJUSTMENT
LEVER

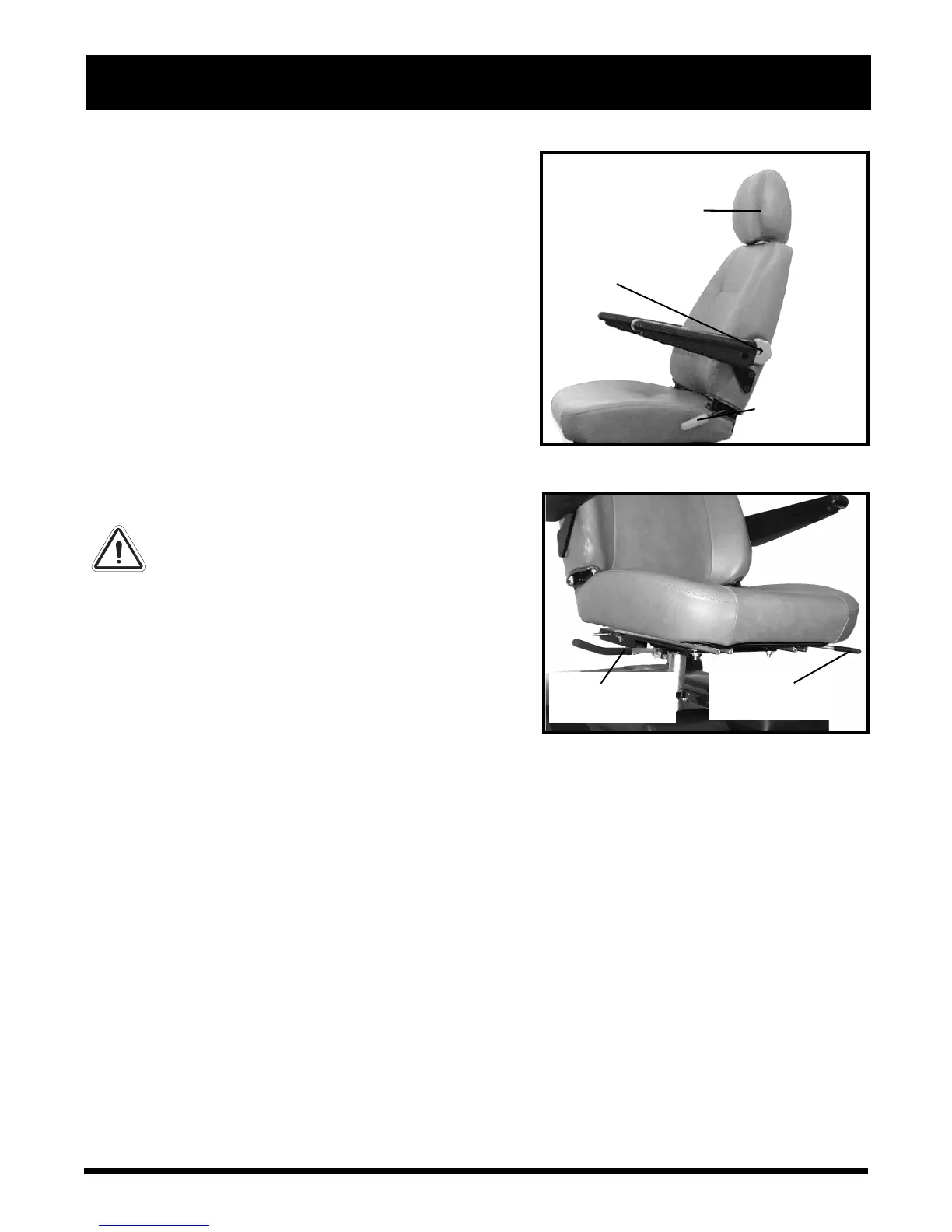

Figure 12. Seatback and Headrest Adjustments
HIGH-BACK SEAT HEADREST ADJUSTMENT
If your scooter is equipped with a high-back seat, the head-
rest height can be adjusted to several positions.
1. Pull up on the headrest to raise its position.
See figure 12
.
2. Push down on the headrest to lower its position.
3. Pull the headrest forward or push it rearward to adjust
the headrest angle.
SEATBACK ADJUSTMENT
To adjust your scooter’s reclining seat, perform these steps
(see figure 12):
1. While pulling up on the seatback adjustment lever, lean
forward or rearward to adjust the seatback.
2. Release the seatback adjustment lever once the seat is
in a comfortable riding position.
LUMBAR SUPPORT ADJUSTMENT DIAL
The lumbar support is inside the lower part of the seatback.
Turn the lumbar support adjustment dial anticlockwise to
move the support into a comfortable position.
See figure 12
.
S E A T R O T A T I O N
LEVER
SEAT SLIDING
LEVER
Figure 13. Sliding Seat Adjustment
WARNING! Always keep your back
pressed firmly against the seatback while
adjusting the angle.
WARNING! Do not operate the scooter
with the seat in the reclined position.
FRONT-TO-BACK SEAT ADJUSTMENT
You can reposition the scooter’s seat forward or rearward
to adjust the distance between the seat and the tiller. See
figure 13.
1. Pull up on the seat sliding lever.
2. While holding the lever up, slide the seat forward or
rearward.
3. Release the seat sliding lever once the seat is in the
desired position.
SEAT ROTATION ADJUSTMENT
The seat rotation lever secures the seat in one of four posi-
tions. See figure 13.
1. Push down on the seat rotation lever to disengage the
seat.
2. Rotate the seat to the desired position.
3. Release the seat rotation lever to secure the seat in
place.
