WARNING! Prevent injury and/or equipment damage! If your off-board battery charger has
not been tested and approved for outdoor use, then do not expose it to adverse or extreme
weather conditions. If the battery charger is exposed to adverse or extreme weather
conditions, then it must be allowed to adjust to the difference in environmental conditions
before use indoors. Refer to the manual supplied with the battery charger for more
information.
WARNING! Prevent injury and/or equipment damage! Do not mix or match new and old
batteries. If you encounter a situation where one battery needs to be replaced, then
replace both batteries. Refer to specifications table in this manual and the manual supplied
with the battery charger for recommended type and capacities.
BATTERY REPLACEMENT
To change a battery in your scooter:
1. Remove the seat and the rear shroud.
2. Disconnect the battery tie-down strap.
3. Disconnect the battery cables from the electronic controller module.
4. Disconnect the battery cables from the battery terminals.
5. Remove the old battery.
6. Place a new battery in the battery well.
7. Connect the red battery cable to the positive (+) battery terminal.
8. Connect the black battery cable to the negative (-) battery terminal.
9. Reconnect the battery cables to the electronic controller module.
10. Reconnect the battery tie-down strap.
11. Reinstall the rear shroud and the seat.
Follow these steps to safely charge your batteries:
1. Position your scooter close to a standard wall
outlet.
2. Remove the key from the key switch.
3. Ensure the manual freewheel lever is in the drive
(down) position.
4. Connect the off-board battery charger to the off-
board battery charger port and the standard wall
outlet. See figure 12.
5. Refer to the manufacturer-supplied operating
instructions for your off-board battery charger.
6. When the batteries are fully charged, disconnect
the charger from the wall outlet first, and then from
the charger port.
7. Place the off-board battery charger in a safe place
for future use.

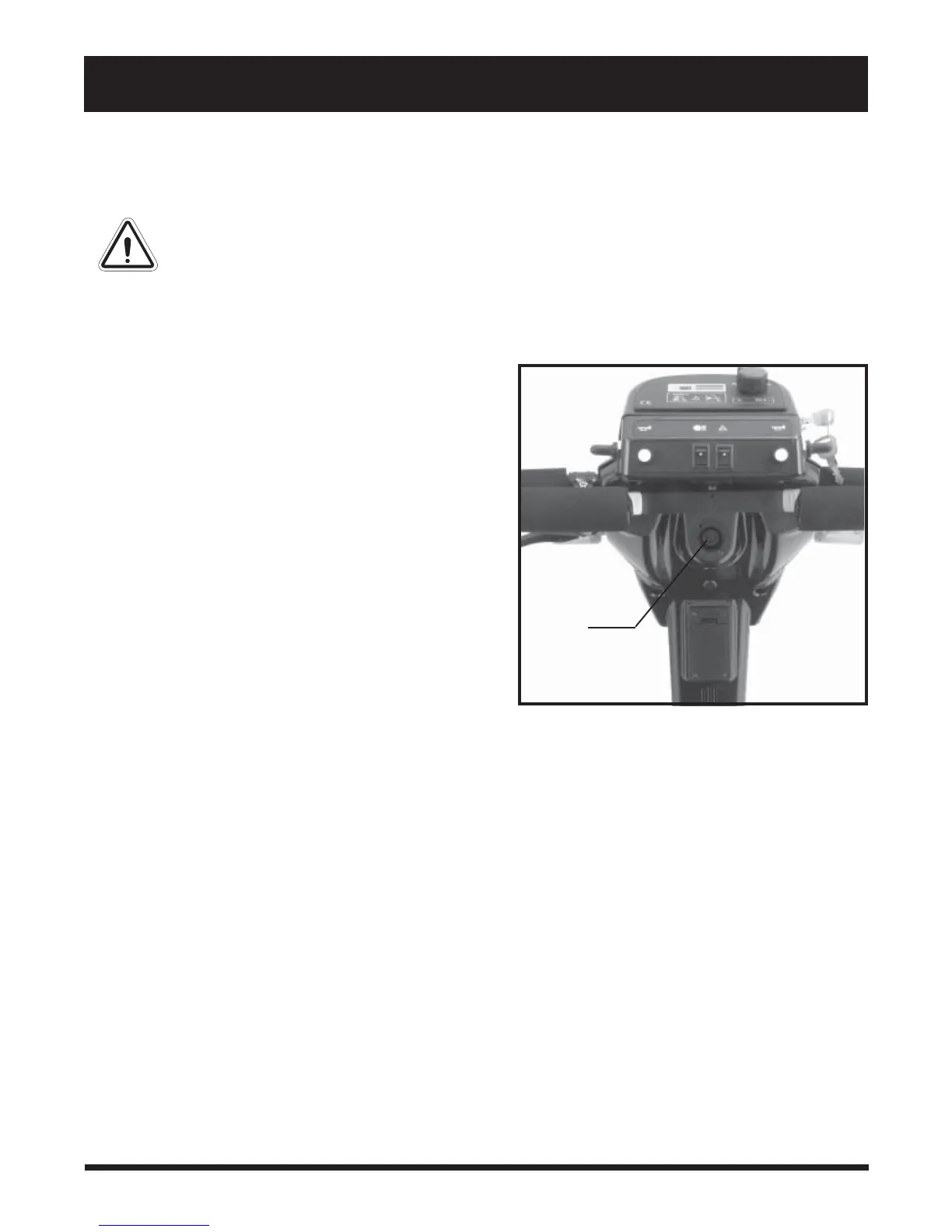

Figure 12. Off-board Battery Charger Port
OFF-BOARD
BATTERY
CHARGER
PORT
