IV. YOUR SCOOTER
Your Pathrider is an indoor/outdoor, motorized electric scooter designed to enhance your personal mobility.
For easy transportation or storage, you can disassemble your scooter into seven components. See figure 5.

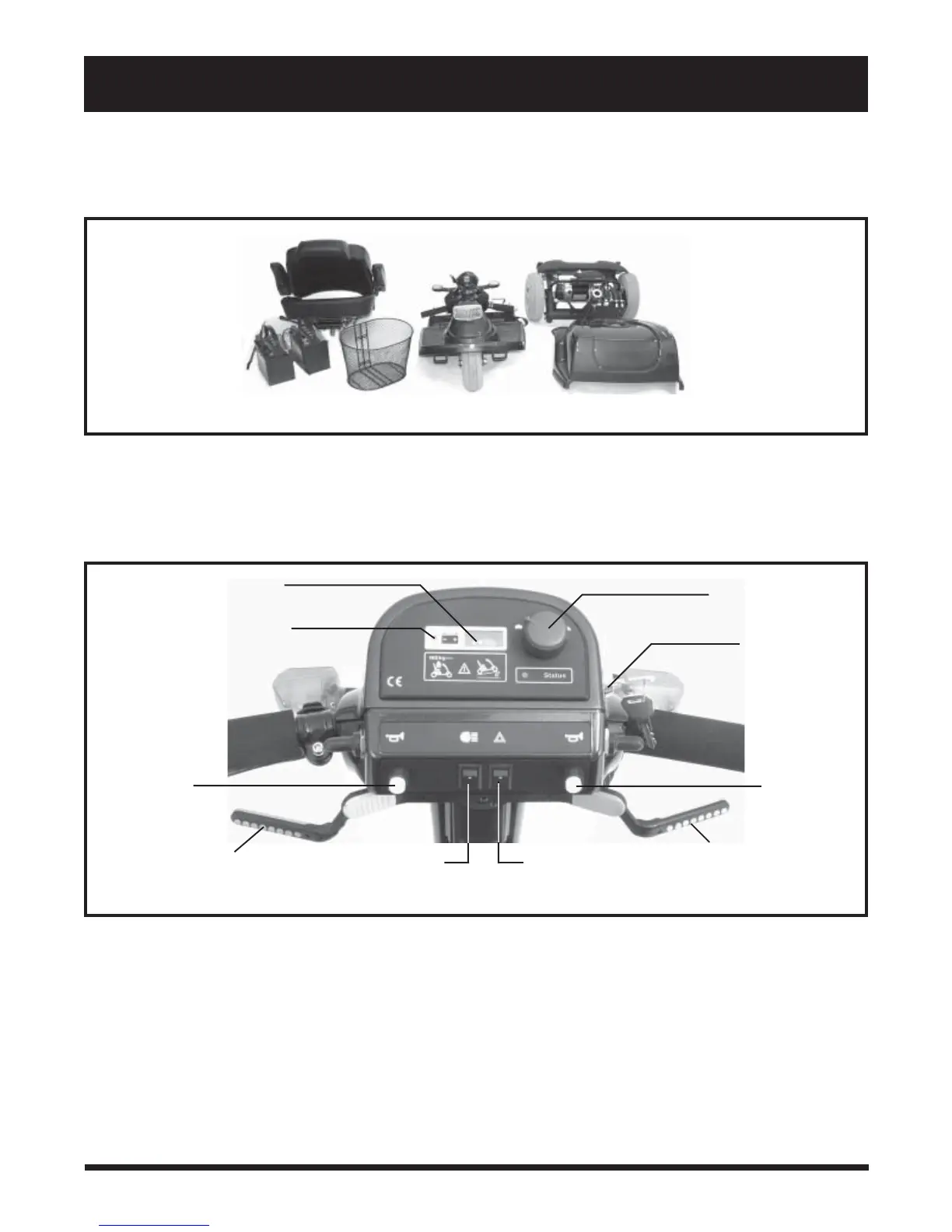

Figure 5. Pathrider Components
FRONT SECTION
SEAT
REAR SECTION
REAR SHROUDBATTERIES
CONTROL CONSOLE ASSEMBLY
The control console assembly located on the front section houses all of the controls you need to operate
your scooter. See figure 6.
BASKET
Figure 6. Controle Console Assembly
BATTERY CONDITION METER
KEY
SWITCH
HORN
BUTTON
SPEED ADJUSTMENT
DIAL
THROTTLE CONTROL
LEVER
LIGHTS SWITCH
HORN BUTTON
HAZARD LIGHT
SWITCH
THROTTLE CONTROL
LEVER
BATTERY VOLTAGE INDICATOR
Battery Condition Meter
When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the
approximate battery voltage strength. For further information on battery charging, see V. “Batteries and
Charging.”
Battery Voltage Indicator
This warning light alerts you when the battery voltage drops below 21 volts.
