20 Pathrider
www.pridemobility.com
IV. YOUR SCOOTER
Off-board Battery Charger Port
The off-board battery charger cord plugs into this port when charging the scooter batteries. For more infor-
mation on battery charging, see V. “Batteries and Charging.”
Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your scooter up to the maxi-
mum speed you preset with the speed adjustment dial.
To Move Forward use either of the following:
! Use your left thumb to push the left side of the throttle control lever.
! Use your right hand fingers to pull back on the right side of the throttle control lever.
To Move Backward use either of the following:
! Use your right thumb to push the right side of the throttle control lever.
! Use your left hand fingers to pull back on the left side of the throttle control lever.
Figure 9. Working Fuse
Figure 10. Blown Fuse (Replace)
Release the throttle control lever and allow your scooter to
come to a complete stop before engaging the other side of the
lever. When the throttle control lever is completely released,
it automatically returns to the center “stop” position and en-
gages your scooter’s brakes.

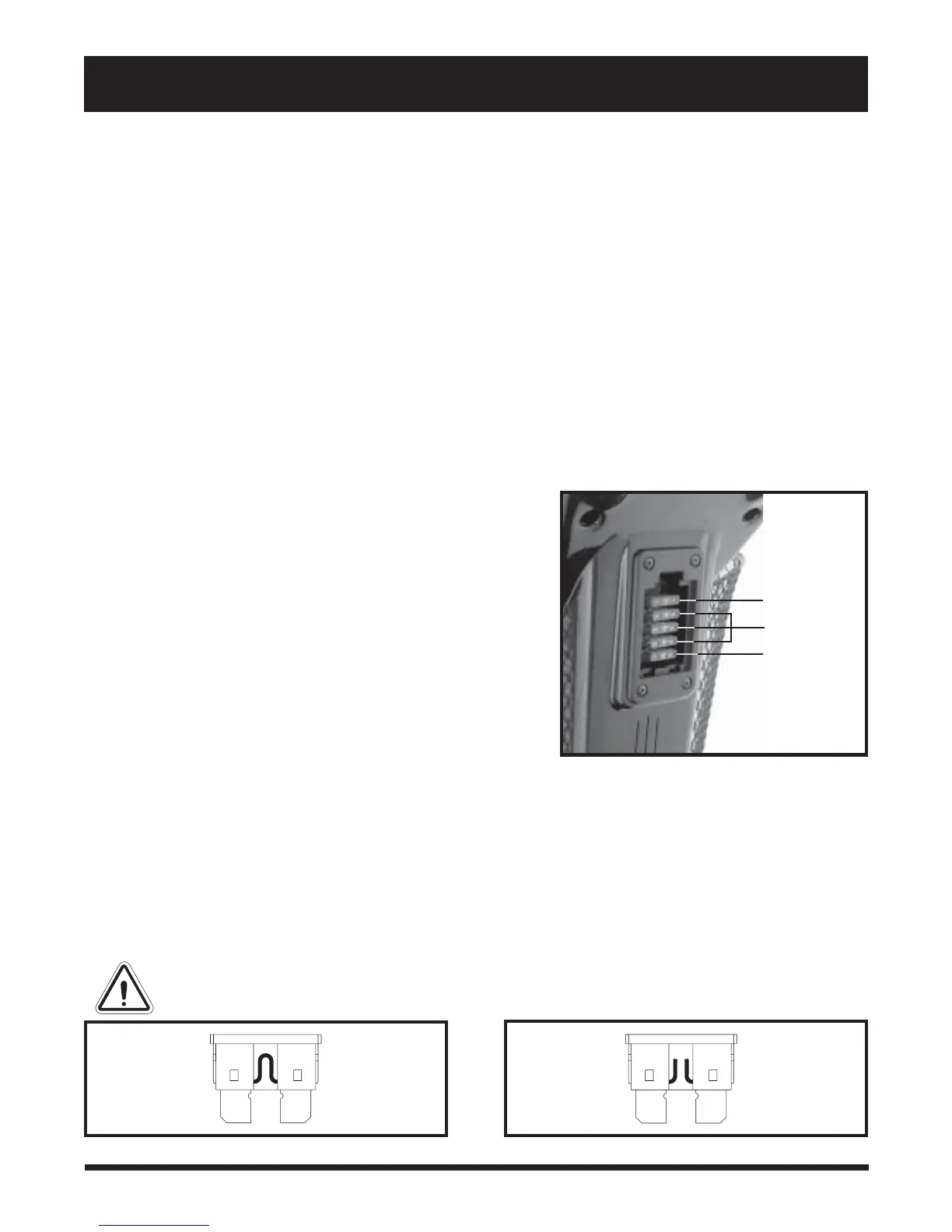

FUSE BOX
The fuse box is a compartment located at the rear of the tiller
under the off-board battery charger port. It contains five auto-
motive-type fuses, which help protect the control console as-
sembly and the lighting system from receiving an overload of
electrical current. The fuse box contains one 5-amp fuse and
four 3-amp fuses. See figure 8.
! The battery voltage is fused to the control console with the 5-amp fuse.
! The turn indicator lights and the headlight are fused to the control console with three of the 3-amp
fuses.
! The fourth 3-amp fuse is a spare fuse.
NOTE: If a fuse must be replaced (see figures 9 and 10), use only the specified amp fuse. For more
information, see X. “Care and Maintenance.”
WARNING! Failure to use properly rated fuses may cause damage to the electrical system
and may result in personal injury.
Figure 8. Fuse Box
5-AMP FUSE
3-AMP FUSES
SPARE FUSE
