21
Pathrider
www.pridemobility.com
IV. YOUR SCOOTER
ELECTRONIC CONTROLLER
MODULE
BATTERIES
MANUAL FREEWHEEL
LEVER
ANTI-TIP WHEELS

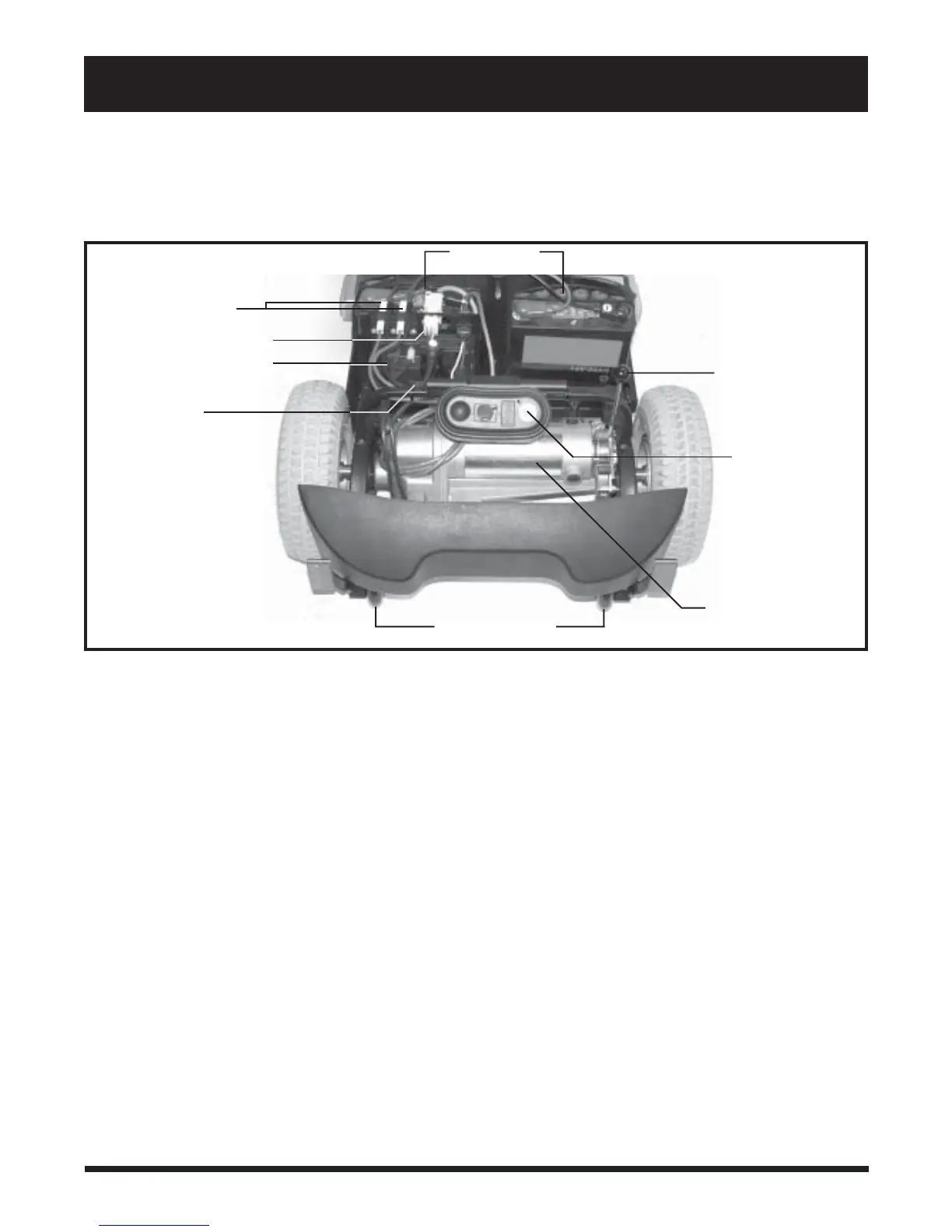

Figure 11. Rear Section
FRONT-TO-REAR HARNESS
BATTERY HARNESSES
MAIN CIRCUIT
BREAKER (RESET
BUTTON)
MOTOR/TRANSAXLE
ASSEMBLY
REAR SECTION
The batteries, electronic controller module, motor/transaxle assembly, manual freewheel lever, the anti-tip
wheels, the main circuit breaker and the fuses are located on the rear section of your scooter. See figure 11.
Main Circuit Breaker (Reset Button)
When the voltage in your scooter’s batteries becomes low or the scooter is heavily strained because of
excessive loads or steep inclines, the main circuit breaker may trip to protect the motor and electronics
from damage. See figure 11.
! The main circuit breaker reset button pops out when the breaker trips.
! When the breaker trips, the entire electrical system of your scooter shuts down.
! Allow a minute or two for your scooter’s electronics to “rest.”
! Push in the reset button to reset the main circuit breaker.
! If the main circuit breaker trips frequently, you may need to charge your batteries more often. You may
also need to have your authorized Pride Provider perform a load test on your scooter’s batteries.
! If the main circuit breaker trips repeatedly, see your authorized Pride Provider for service.
Batteries
The batteries store the electrical energy that powers your scooter. For instructions on charging your batteries,
see V. “Batteries and Charging.”
Electronic Controller Module
The electronic controller module receives electrical signals from the console controls and sends power to
the motor, the brakes, and the lighting system.
CHARGER FUSE
