21
Pathrider www.pridemobility.com
III. YOUR SCOOTER
Off-board Charger Port
The off-board charger power lead plugs into this port
during battery charging. The off-board charger port is
located on the tiller. See figure 5.
Electrical System Fuses
Your scooter is equipped with a series of electrical sys-
tem fuses, which help protect the off-board charging sys-
tem, key switch, and lighting system from receiving an
overload of electrical current. These fuses are the same
type used in automobiles and are located in a compart-
ment on the tiller. See figure 6. See IX. “Care and Main-
tenance” for fuse replacement.
NOTE: Keep all electrical areas clean and free of
moisture and foreign material.

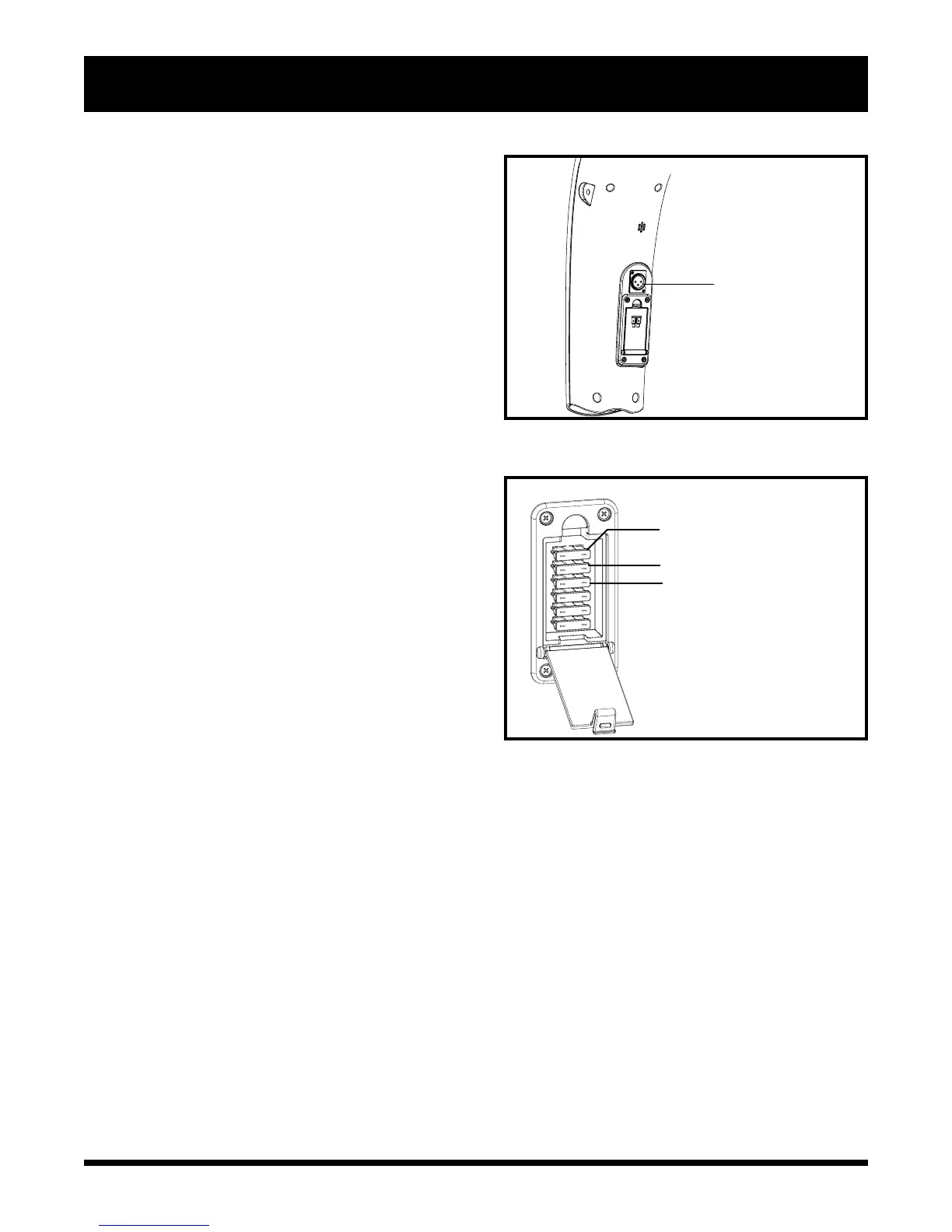

Figure 5. Off-board Charger Port
Figure 6. Tiller Console Fuses
OFF-BOARD
CHARGER PORT
KEY SWITCH (5A)
OFF-BOARD CHARGER (10A)
LOWER HEADLIGHT (1A)
