32
www.pridemobility.com Pathrider
TILLER ANGLE ADJUSTMENT
WARNING! Remove the key from the
key switch before adjusting the tiller
or the seat. Never attempt to adjust
the tiller or the seat while the scooter
is in motion.
Your scooter is equipped with an adjustable pivoting tiller.
1. While supporting the tiller, turn the tiller adjust-
ment knob anticlockwise to loosen the tiller. See
figure 13.
2. Move the tiller to a comfortable position.
3. Turn the tiller adjustment knob clockwise to secure
the tiller in position.
NOTE: In order to fully lower the tiller for purposes of
disassembly or transport, you must first completely re-
move the seat. See VII. “Disassembly and Assembly.”
MIRROR POSITION
To install the mirror (see figure 14):
1. Determine on which side to install the mirror and re-
move the rubber plug from the top of the tiller handle.
2. Insert the threaded end of the mirror holder into the
opening and rotate it clockwise until snug.
3. If necessary, rotate the nut clockwise to secure the
mirror in place.
To adjust the mirror:
1. Position yourself in a seated driving position facing
forward.
2. Adjust the mirror left, right, up, or down until you
have a good line of sight behind you.
ARMREST WIDTH ADJUSTMENT
The armrest width can be adjusted inward or outward.
1. Loosen the armrest adjustment knobs. See figure 15.
2. Use the attached ring to pull and remove the de-
tent pins.
3. Slide the armrests in or out to the desired width.
4. Align the adjustment holes on the seat frame and
armrest, then reinsert the detent pin.
5. Tighten the armrest adjustment knobs.
NOTE: Pivot the armrests upward to aid in getting
onto and off of your scooter.
VI. COMFORT ADJUSTMENTS
TILLER
ADJUSTMENT
KNOB

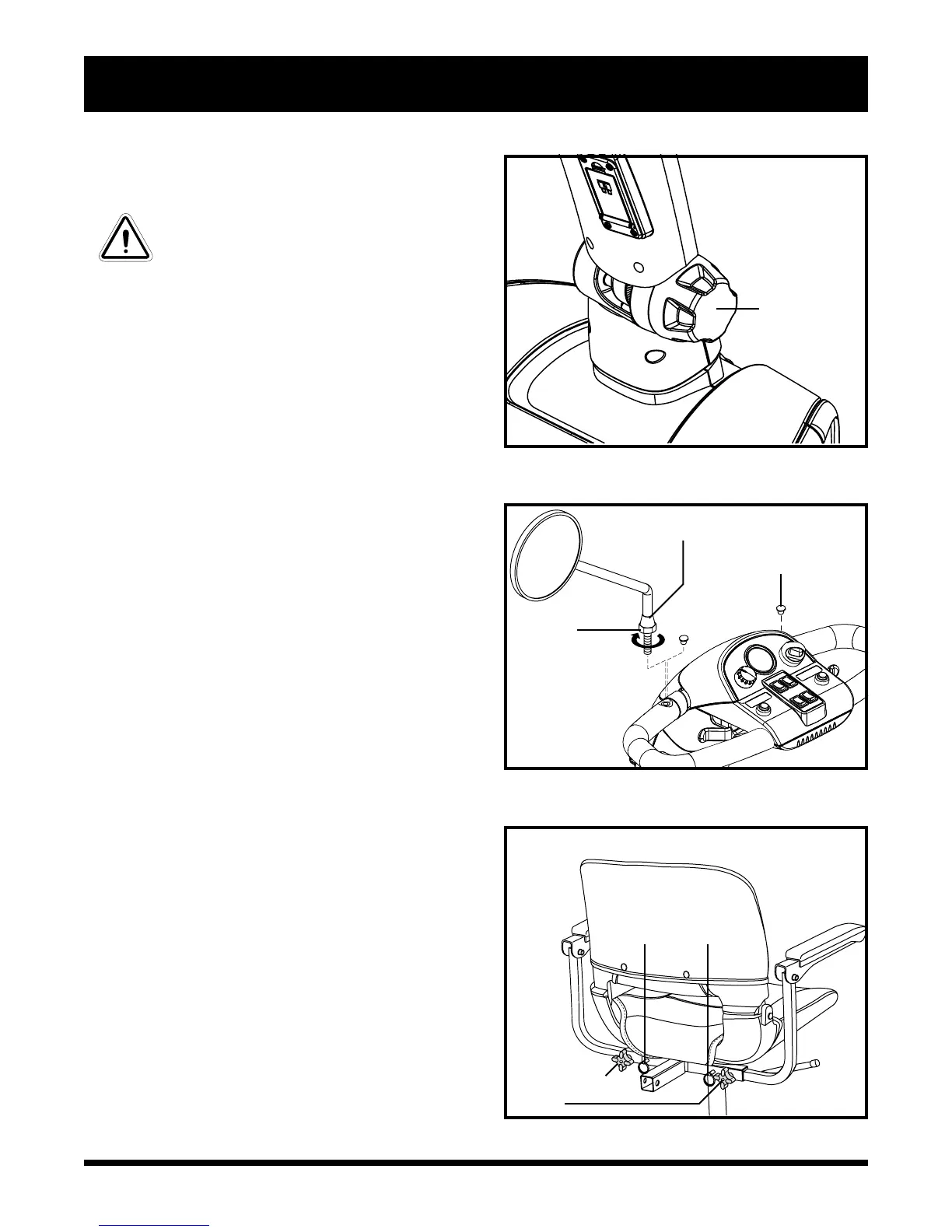

Figure 13. Tiller Adjustment
Figure 14. Mirror Installation and Positioning
Figure 15. Armrest Width Adjustment
MIRROR HOLDER
RUBBER PLUG
NUT
ARMREST
ADJUSTMENT
KNOBS
DETENT PINS
