VII. DISASSEMBLY AND ASSEMBLY
8. Grasp and lift up on the frame release lever. See
figure 20.
9. Lift the front section up until the frame hooks of
the front section separate from the rear section.
See figure 21.
10. Slowly separate the two sections. See figure 21.
ASSEMBLY
1. Position the front and rear sections of your scooter as
shown in figure 21.
2. Use the frame release lever to lift the front section as
you align the frame hooks of the front section with the
lower frame tube of the rear section. See figure 21.
3. Once the frame hooks are over the lower frame tube,
lower the front section completely. This will engage
the frame lock.

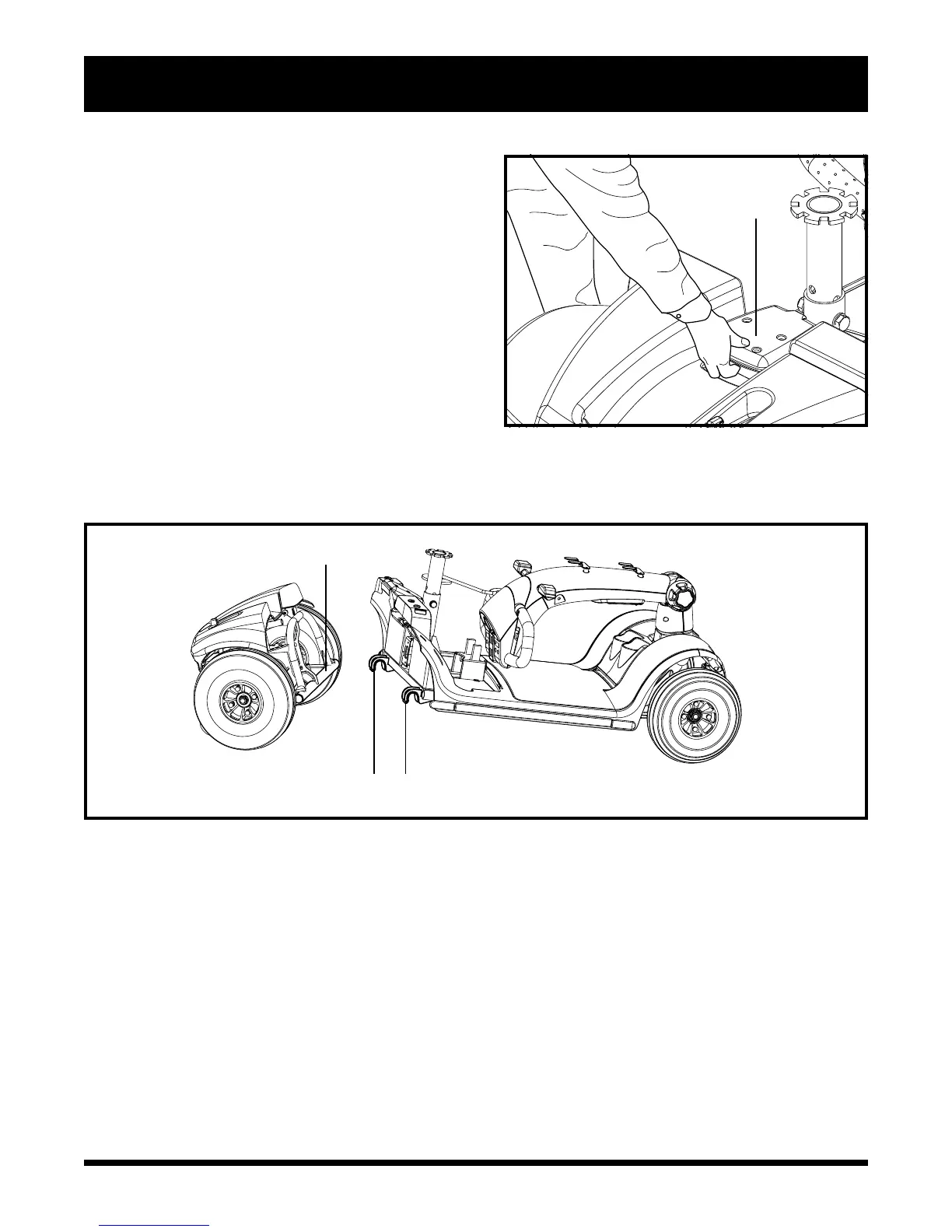

Figure 20. Frame Release Lever
FRAME
RELEASE
LEVER
Figure 21. Frame Separation
FRAME HOOKS
LOWER FRAME TUBE
4. Raise the tiller and fully tighten the tiller adjustment knob.
5. Reinstall the batteries to the battery wells.
6. Connect both battery harnesses. See figure 19.
7. Secure the battery tie-down strap.
8. Reinstall the battery shroud.
9. Reinstall the seat and rotate it into place.
