28
www.pridemobility.com Pathrider
IV. BATTERIES AND CHARGING
To change the batteries in your scooter:
1. Remove the seat and battery shroud.
2. Disconnect the battery tie-down strap.
3. Disconnect the battery harnesses by pulling them
straight up. See figure 11.
4. Disconnect the battery cables from the battery termi-
nals by sliding back the terminal boots and unscrew-
ing the nut from the bolt. See figure 11A.
5. Remove the old batteries from the battery wells.
6. Place a new battery in each battery well. Face the bat-
tery terminals of both batteries away from the seat
post. See figures 11 and 12.
7. Connect the red battery cable to the positive (+) bat-
tery terminal on each battery.
8. Connect the black battery cable to the negative (-)
battery terminal on each battery.
9. Reposition the terminal boots over the battery
terminals.
10. Reconnect the battery harnesses.
11. Reconnect the battery tie-down strap.
12. Reinstall the battery shroud and seat.

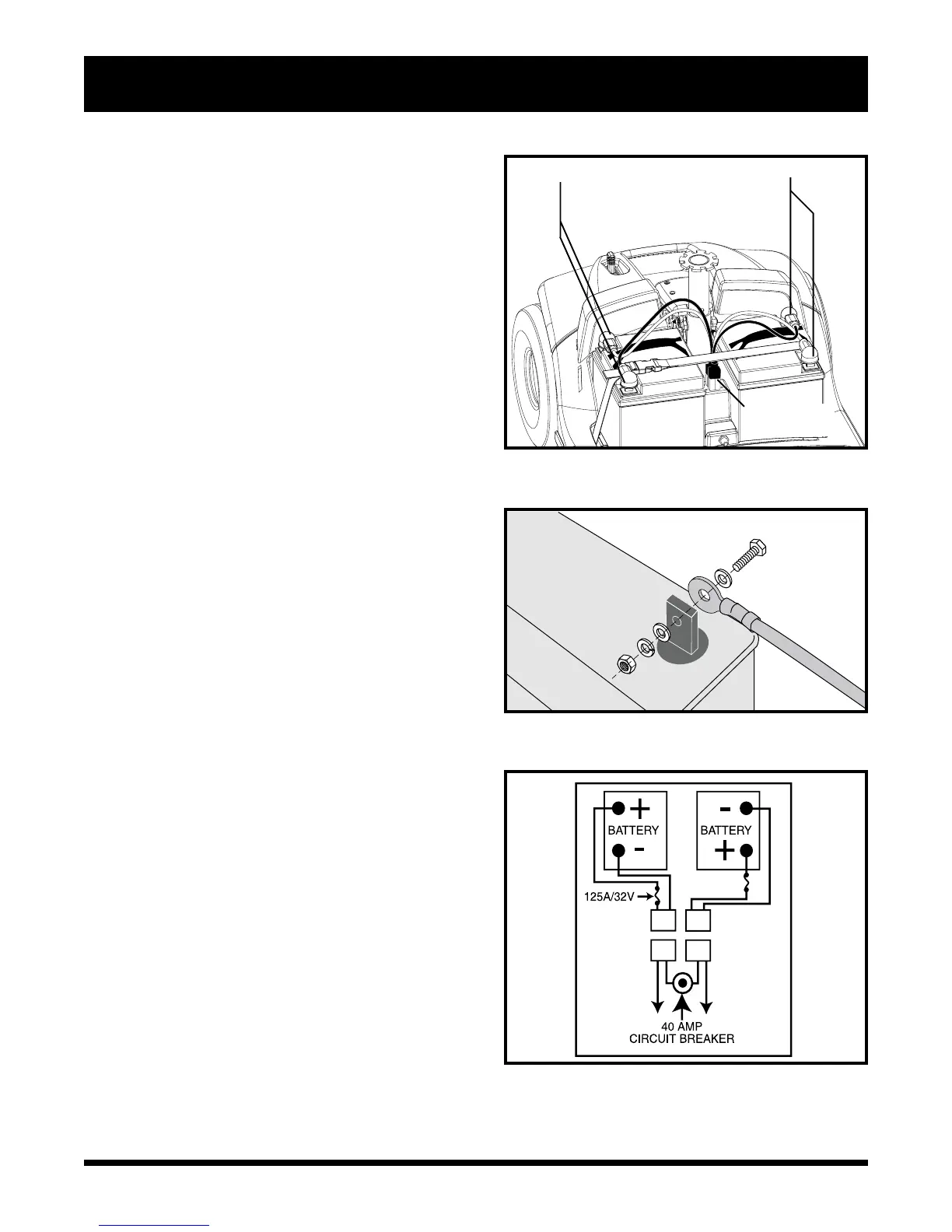

Figure 11. Battery Removal/Installation
Figure 12. Battery Wiring Diagram
Figure 11A. Cable to Terminal Connections
BATTERY TERMINALS UNDER BOOTS
BATTERY
HARNESS
CONNECTIONS
