Raptor 23
V. COMFORT ADJUSTMENTS
MIRROR POSITION
To install the mirror:
1. Insert the threaded end of the mirror holder into
the opening and rotate it clockwise until snug.
See figure 14.
2. If necessary, rotate the nut clockwise to secure
the mirror in place.
To adjust the mirror:
1. Position yourself in a seated driving position
facing forward.
2. Adjust the mirror left, right, up, or down until you
have a good line of sight behind you. See figure
15.

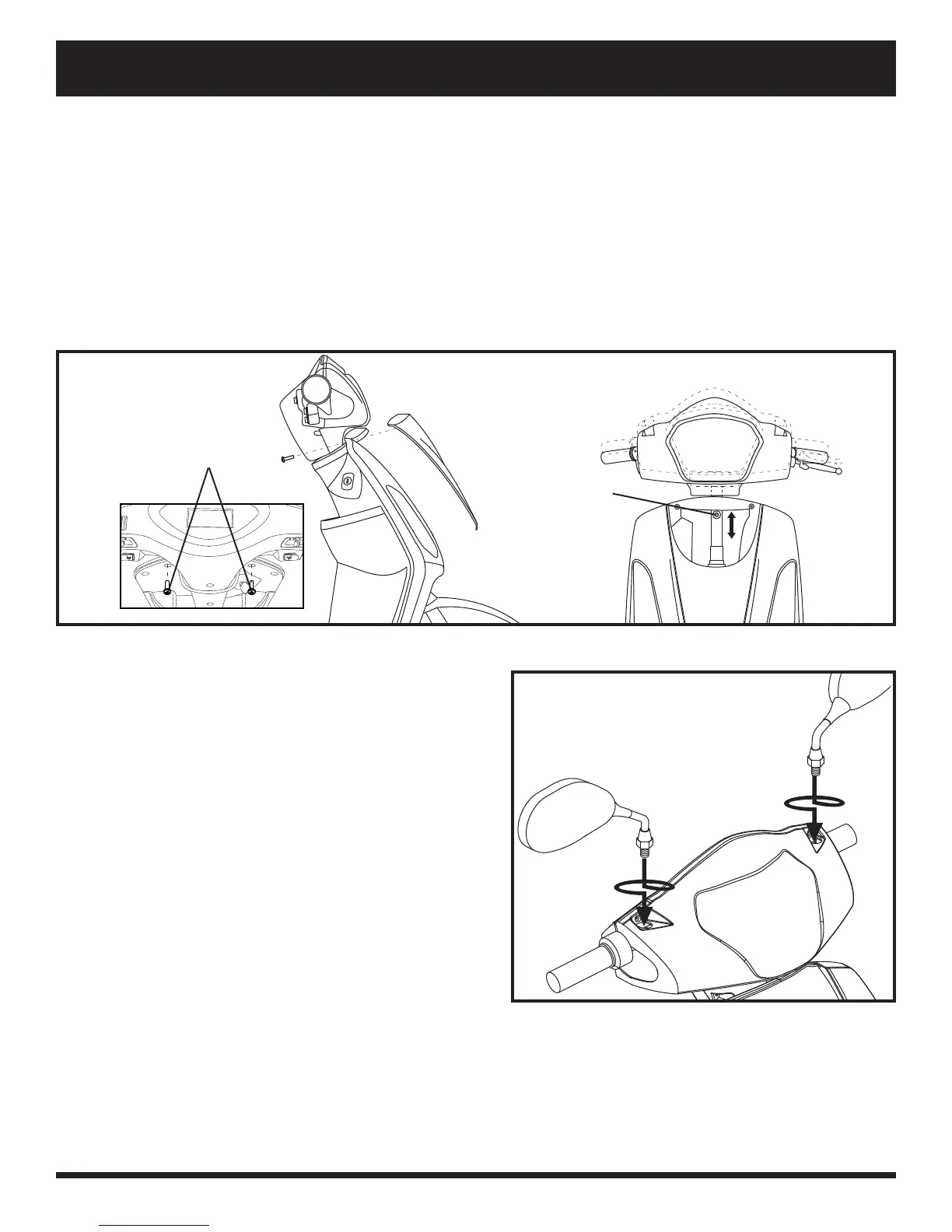

Figure 15. Mirror Position Installation/Adjustment
TILLER HEIGHT ADJUSTMENT
The height of the tiller console can be adjusted up or down to a comfortable driving level.
To adjust the tiller height:
1. Remove the two screws located on the tiller. See figure 14.
2. Remove the front shroud. Raise the rubber boot and locate the adjustment bolt. See figure 14.
3. Remove the adjustment bolt and move the tiller up or down to a comfortable position.
4. Once the tiller is adjusted to the desired height, reinstall the adjustment bolt.
5. Reinstall the front shroud.
6. Reinstall the two screws located on the tiller.
Figure 14. Tiller Height Adjustment
SCREWS
ADJUSTMENT BOLT
