IV. YOUR SCOOTER
Manual Freewheel Lever
Whenever you need or want to push your scooter for short distances, you can put it in freewheel mode.
n The manual freewheel lever is located at the top left of the rear section.
n Push the manual freewheel lever rearward to disable the drive system and the brake system.
n Push the manual freewheel lever forward to reengage the drive and the brake systems; this takes your scooter out
of freewheel mode.
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
n Disengage the drive motor only on a level surface.
n Ensure the key is removed from the key switch.
n Stand beside the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
n After you have finished pushing your scooter, always return it to the drive mode to lock
the brakes.
Failure to heed the above could result in personal injury and/or damage to your scooter.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your scooter. They are bolted to the frame at the
rear of the scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is
not authorised by Pride.

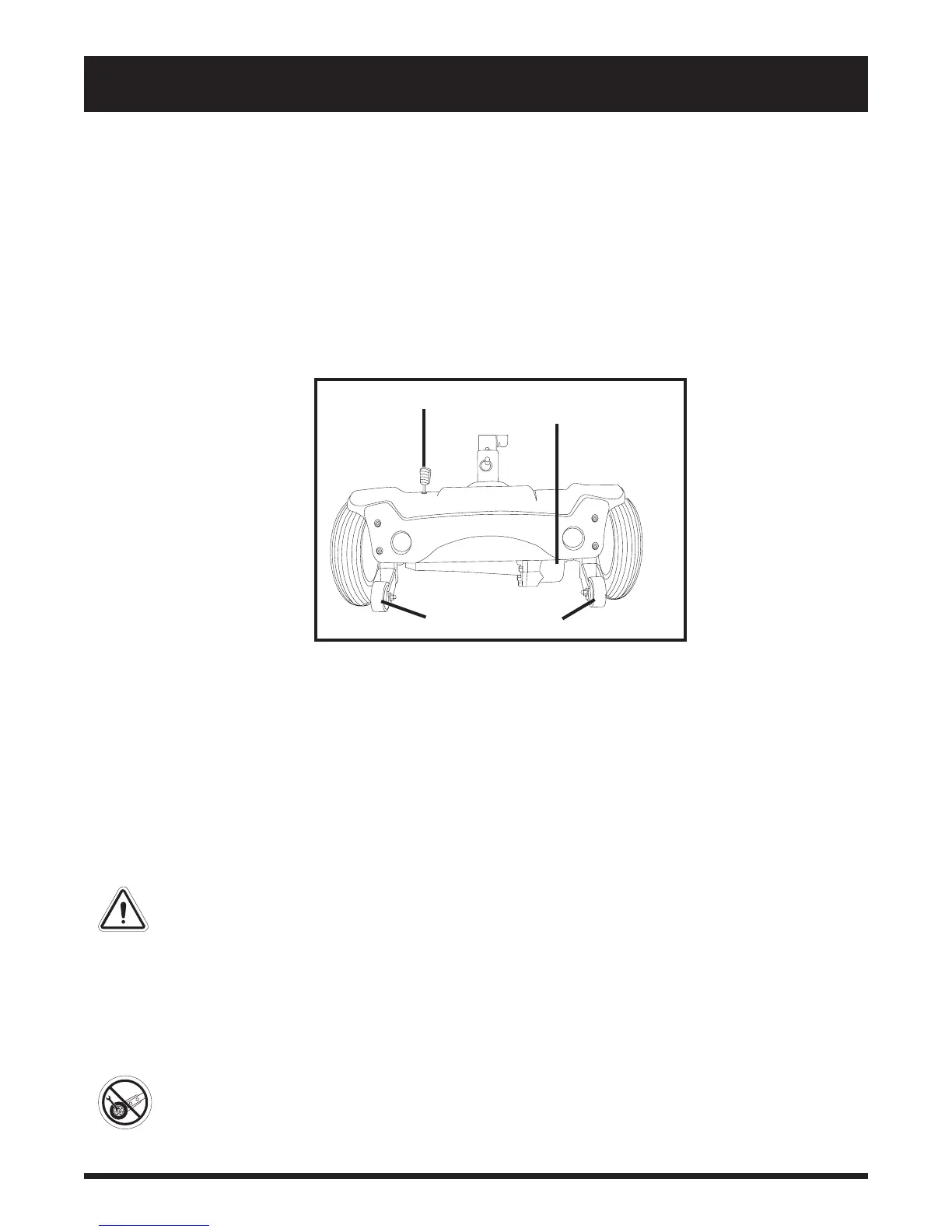

Figure 7. Rear Section
MANUAL FREEWHEEL LEVER
ANTI-TIP WHEELS
MOTOR/TRANSAXLE
ASSEMBLY
Horn Button
This button activates a warning horn. The scooter must be powered up for the horn to be operational. Do not
hesitate to use the warning horn when doing so may prevent accident or injury.
Battery Condition Meter
The battery condition meter on the tiller console indicates the approximate strength of your batteries.
REAR SECTION
The manual freewheel lever, anti-tip wheels, and the motor/transaxle assembly are located on the rear section of
your scooter. See figure 7.
