32
www.pridemobility.com Travel Pro
VII. DISASSEMBLY AND ASSEMBLY
DISASSEMBLY
You can disassemble the Travel Scooter into five
pieces: the seat, the front section, the rear section,
the basket, and the battery pack. See figure 16.
No tools are required to disassemble or assemble
your Travel Scooter. Always disassemble or
assemble your Travel Scooter on a level, dry
surface with sufficient room for you to work and
move around—about 5 feet (1.5 meters) in all
directions. Remember that some Travel Scooter
components are heavy and you may need
assistance when lifting them.
WARNING! Do not lift weight
beyond your physical capability.
Ask for assistance when
necessary while disassembling or
assembling your Travel Scooter.
SEAT
REAR SECTION BATTERY PACK
BASKET
FRONT SECTION

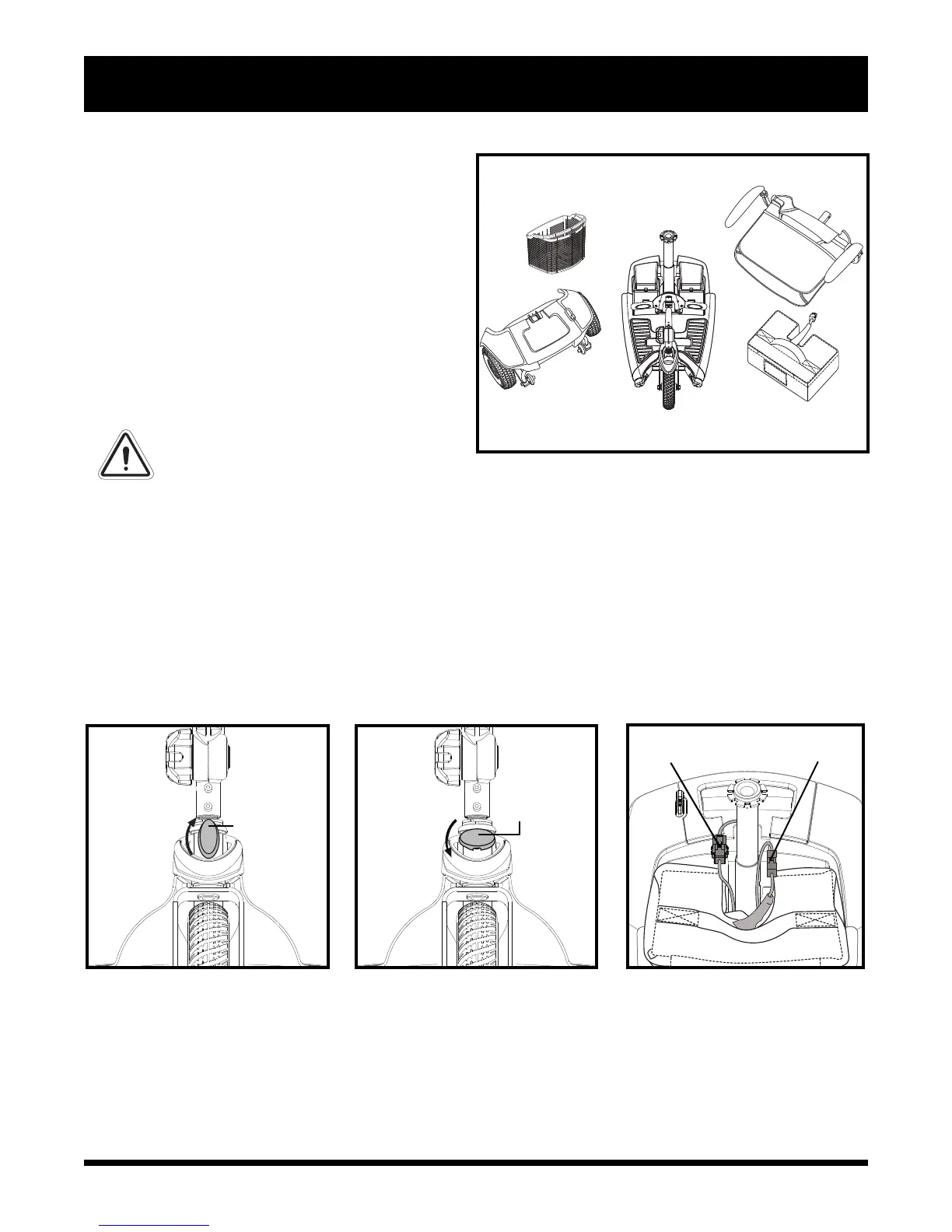

Figure 16. Disassembled Travel Scooter
1. Remove the key from the key switch.
2. Lock the tiller in the straight ahead position by pushing the tiller lock knob in and turning it clockwise
90°. See figure 17. The front wheel must face forward in order to lock the tiller.
3. Remove the seat by lifting it straight up and off of the Travel Scooter. If you encounter resistance when
removing the seat, disengage the seat rotation lever and swivel the seat back and forth while lifting up
on the seat.
4. Disconnect the battery harness. See figure 19.
5. Disconnect the front-to-rear harness. See figure 19.
6. Remove the battery pack from the Travel Scooter by lifting it straight up and off of the Travel Scooter.
Figure 18. Tiller Lock Knob (Unlocked)
Figure 17. Tiller Lock knob (Locked)
Figure 19. Harness Connections
BATTERY
HARNESS
FRONT-TO-REAR
HARNESS
TILLER LOCK
KNOB
TILLER LOCK
KNOB
