VII. DISASSEMBLY AND ASSEMBLY
ASSEMBLY
1. Position the front and rear sections of your PMV as
shown in figure 21.
2. Align the lower slots of the front section with the
corresponding pegs on the front of the rear section.
See figure 21.
WARNING! Position the front-to-rear
harness so it will not become pinched
between the frame halves when
pivoting the rear section forward. See
figure 21.
3. Holding the seat post, slowly pivot the rear section
forward until the curved locking brackets are fully
connected onto the top rear pegs. See figure 19.
4. Raise the tiller.
5. Latch the toggle latch. See figure 18.
 Lower the toggle latch buckle.
 Push back on the toggle latch so it locks in
place.
6. Reinstall the batteries into the battery wells and
reconnect the battery strap.
7. Connect the front-to-rear harness and both T-handle
battery harnesses.
8. Reinstall the shroud.
9. Reinstall the seat.

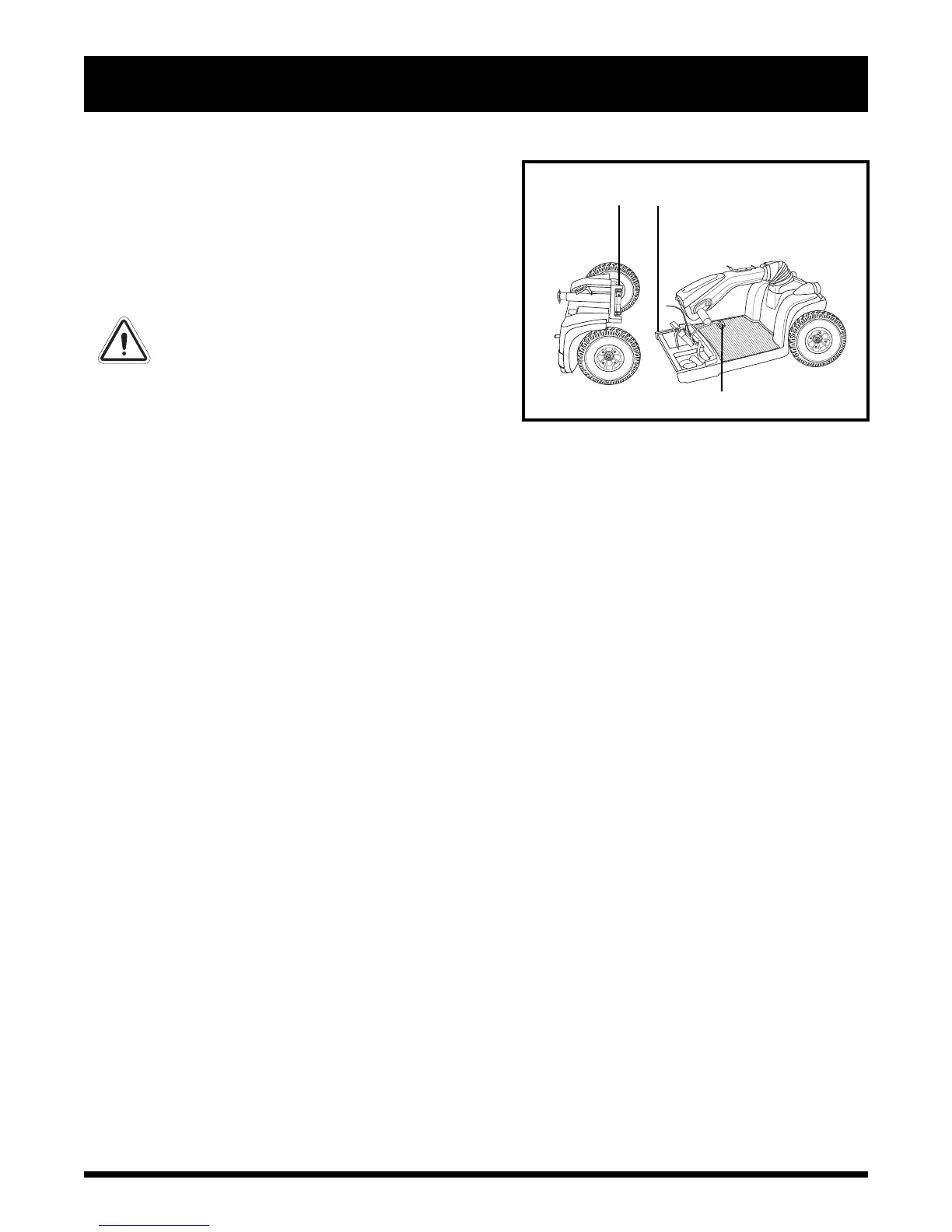

Figure 21. Frame Sections
FRONT-TO-REAR HARNESS
CURVED LOCKING BRACKET
PEG
