IV. YOUR SCOOTER

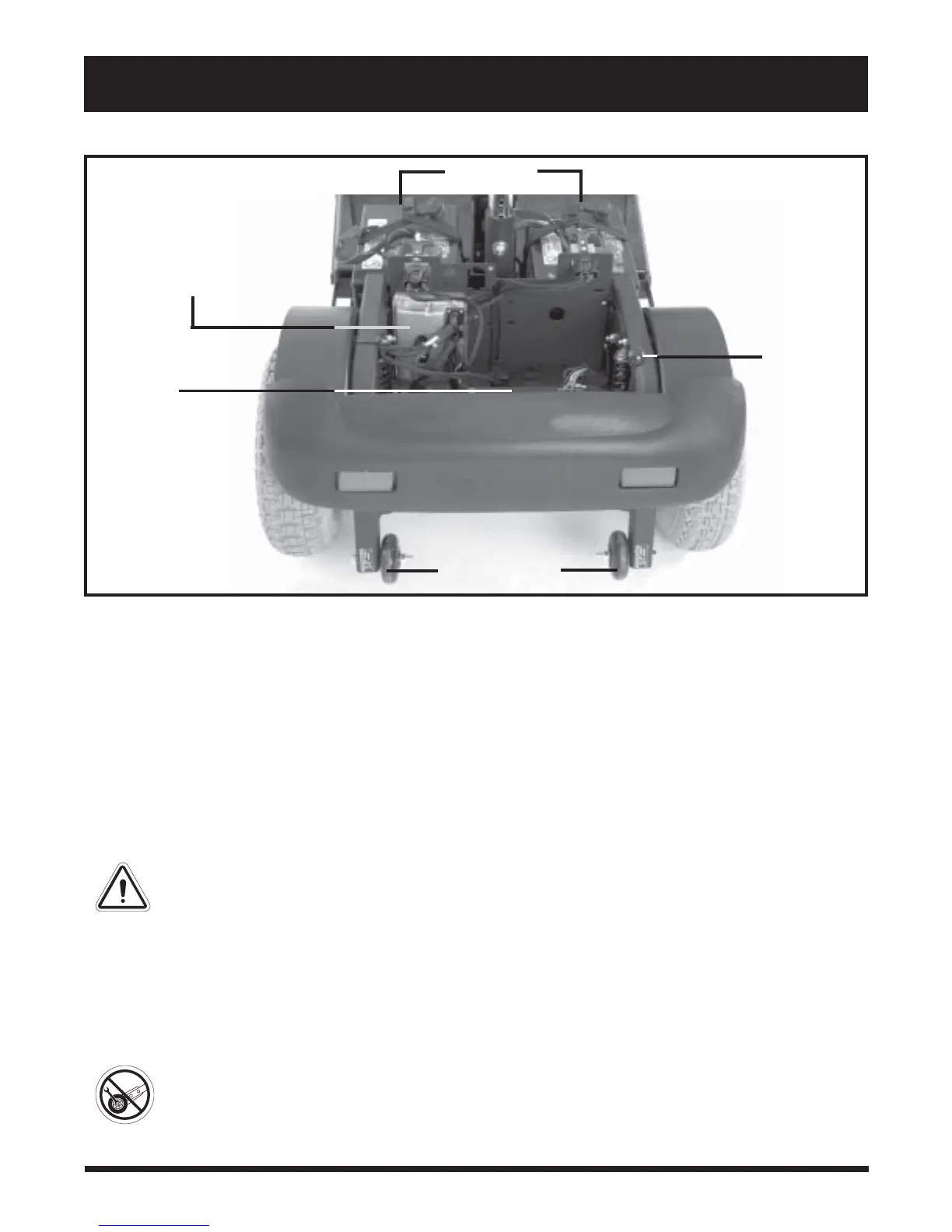

Figure 8. Rear Section
BATTERIES
ELECTRONIC CONTROLLER
MODULE
MANUAL
FREEWHEEL
LEVER
ANTI-TIP WHEELS
MOTOR/
TRANSAXLE
ASSEMBLY
Manual Freewheel Lever
Whenever you want to push your scooter for short distances, you can put it in freewheel mode. The manual
freewheel lever is located on the end of the motor/transaxle assembly at the right rear of the scooter.
1. Pull up on the manual freewheel lever to disable the drive system and the brake system; you will then be
able to push your scooter.
2. Push down on the manual freewheel lever to reengage the drive system and the brake system and take
your scooter out of freewheel mode.
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
! Disengage the drive motors only on a level surface.
! Ensure the key is removed from the key switch.
! Stand behind the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
! After you have finished pushing your scooter, always return it to the drive mode to lock
the brakes.
Failure to heed the above could result in personal injury and/or damage to your scooter.
Anti-tip Wheels
The anti-tip wheels are an integral and important safety feature designed to help prevent your scooter from
tipping rearwards on an incline. They are bolted to the frame at the rearmost part of your scooter. See figure 8.
PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is
not authorised by Pride.
