VII. COMFORT ADJUSTMENTS

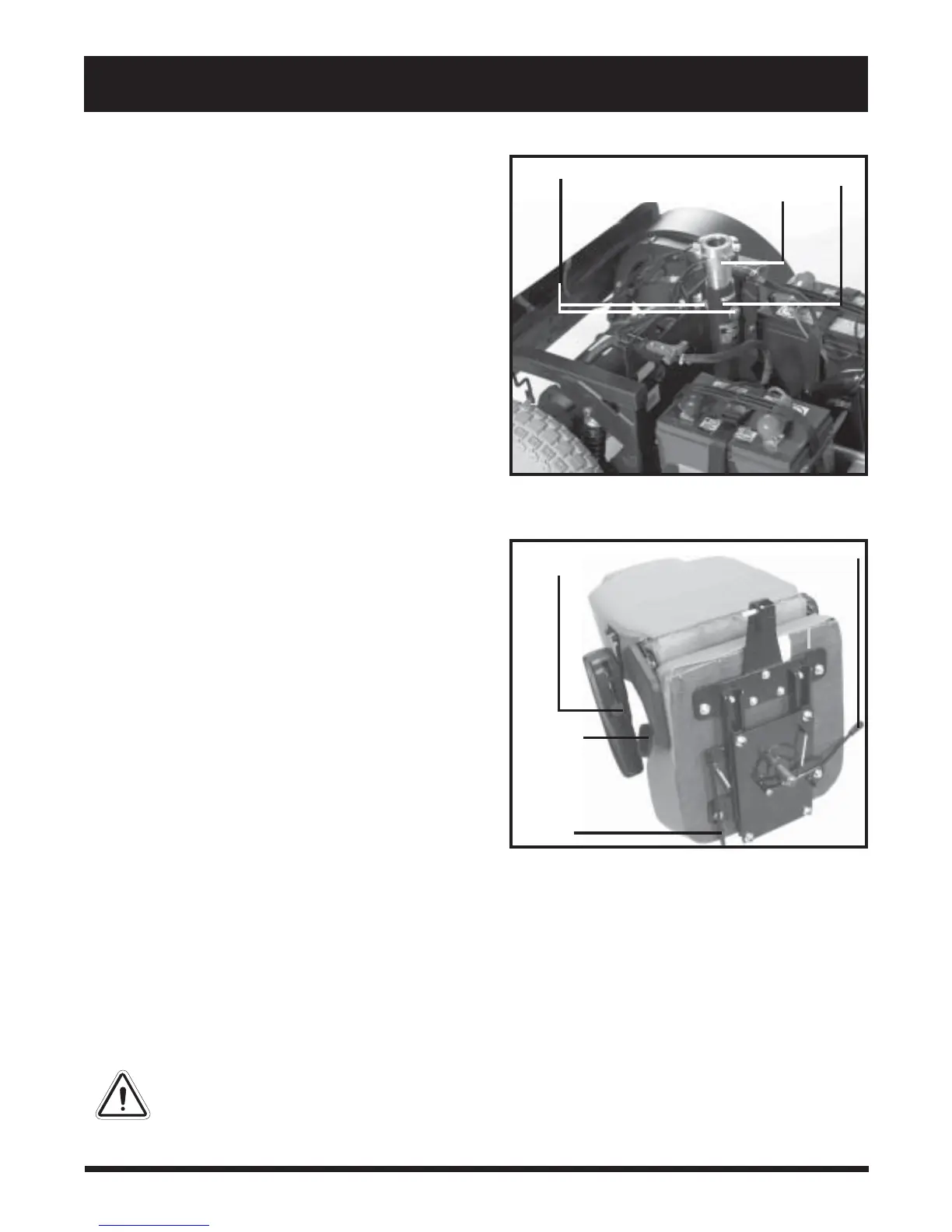

Figure 14. Seat Height Adjustment
LOWER SEAT POST
Figure 15. Seat Adjustments
the seat back and forth until you hear the lever “click.”
SEATBACK ADJUSTMENT
To adjust the recline angle of the seat:
1. Pull up on the seat recline lever to unlock the seatback. See figure 15.
2. Lean forward or rearward to adjust the seatback to a comfortable position.
3. Release the seat recline lever to lock the seat securely in place.
SEAT HEIGHT ADJUSTMENT
To reposition the seat to one of three different heights:
1. Remove the seat from your scooter. Push and hold
the seat lock lever forward to unlock the seat, then
rotate the seat and lift it off of the scooter.
2. Lift up rear shroud, disconnect the lighting harnesses,
then remove the shroud.
3. Use two 17-mm spanners to loosen and remove the
hex head bolt and nut. See figure 14.
4. Raise or lower the upper seat post to the desired seat
height.
5. Line up the locating hole in the upper seat post with
the hole in the lower seat post.
6. Reinstall the hardware and tighten.
7. Replace the rear shroud and the seat.
FRONT-TO-BACK SEAT ADJUSTMENT
You can reposition the seat forward or rearward to ad-
just the distance between the seat and the tiller. See
figure 15.
1. Pull the seat sliding lever to the side.
2. Hold the lever to the side and slide the seat forward
or rearward into a comfortable position.
3. Release the seat sliding lever to lock the seat se-
curely in place.
SEAT ROTATION ADJUSTMENT
The seat lock lever locks the seat in one of eight
positions. See figure 15.
1. Push forward on the seat lock lever to unlock the seat.
2. Rotate the seat to the desired position.
3. Release the seat lock lever to lock the seat securely in
place. If the seat is not locked into position, gently rock
WARNING! Always keep your back pressed firmly against the seatback while adjusting
the angle.
WARNING! Do not operate your scooter with the seatback in a reclined position.
UPPER SEAT POST
HEX HEAD BOLT AND NUT
SEAT SLIDING
LEVER
SEAT LOCK LEVER
SEAT
RECLINE
LEVER
ARMREST
ADJUSTMENT
DIAL
