R15 Phono Preamplifier User Guide
8

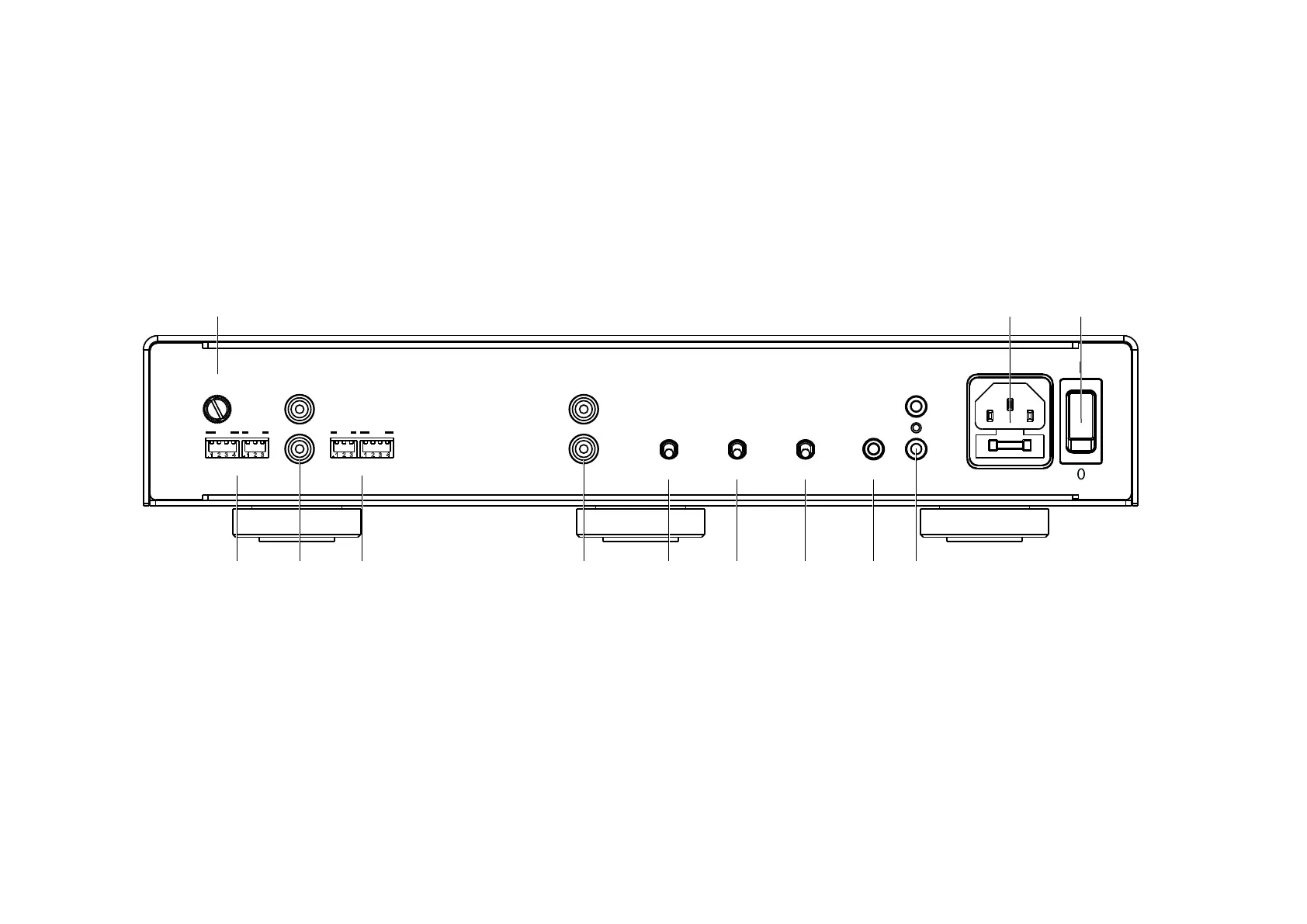

The following diagram explains the function of each of the
connectors on the back panel:
BACK-PANEL CONNECTIONS
GND ANALOG IN ANALOG OUT TRIG
IN
OUT
SUBSONIC FILTER MM/MC GAIN
L
R
L
ON
OFF
MM MM
40
45
60
65
MC
MC
R
MC MM MCMM
ON
1 2 3 4 5 6 7
ON
7 6 5 4 3 2 1
SERVICE
Subsonic
filter
MM/MC
selector
Gain
selector
Service
input *
Analogue
inputs
Ground
terminal
Impedance/
capacitance
settings L
Analogue
outputs
Impedance/
capacitance
settings R
Trigger
in/out
Power
and fuse
On/off
* The SERVICE input is a 3.5 mini-jack for use by an
authorized dealer or service technician to update or
service the R15.
