Page 17
Maximum Hydraulic Flow Rate 2 GPM Port
Maximum Pressure For “Raising” Portion of Cycle 3200 PSI A
Maximum Pressure For “Lowering” portion of Cycle 1500 PSI B

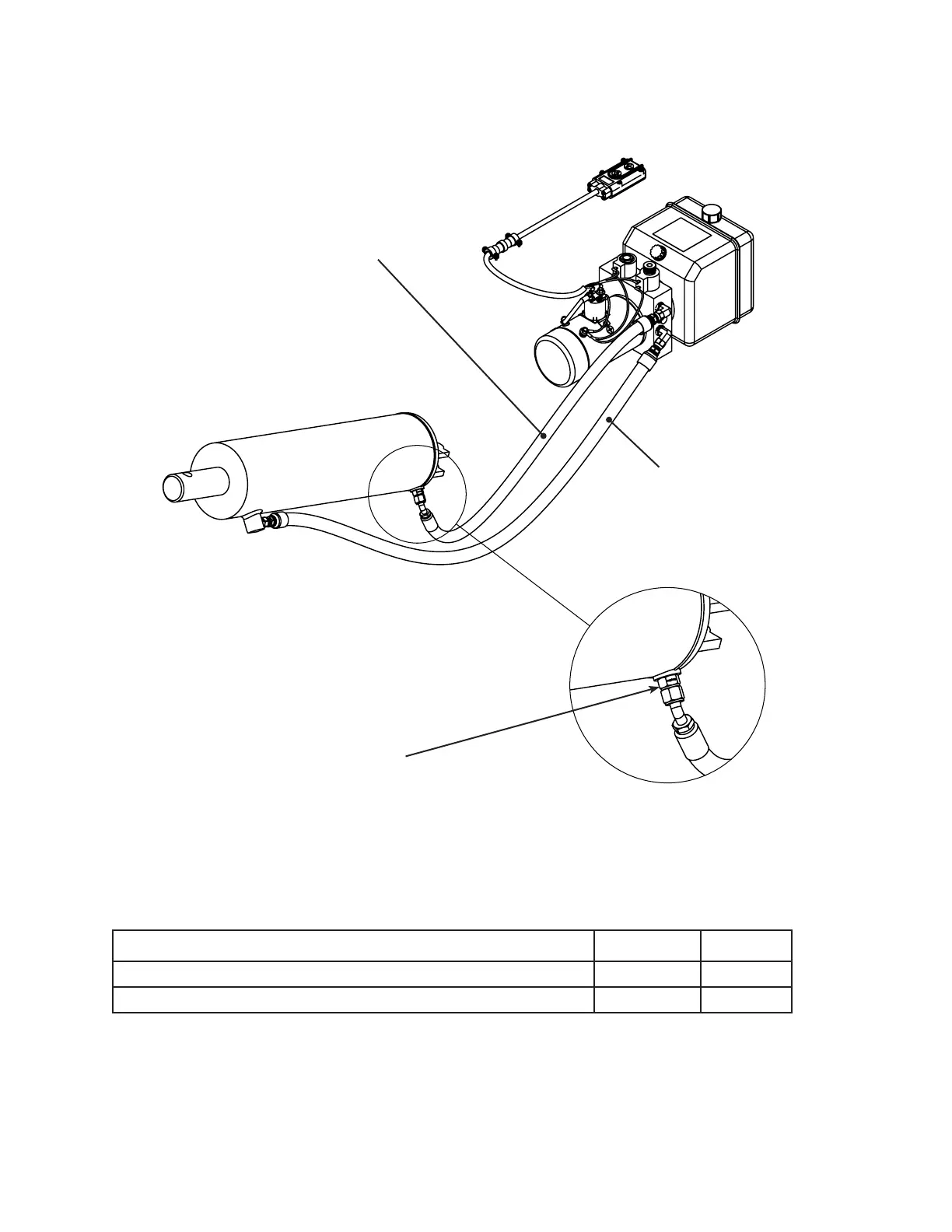

Dual Acting HPU Connections
Hoist
Cylinder
Body Up Hose Assy.
110”x3/8 (Supplied)
Port “A” On hydraulic
power unit 3200 PSI
IMPORTANT:
Install (supplied) Bridon
load control valve at this
port of hydraulic cylinder
Body Down Hose Assy.
120”x3/8 (Supplied)
Port “B” On Hydraulic power
unit 1500PSI
To Next Page
