Page 22

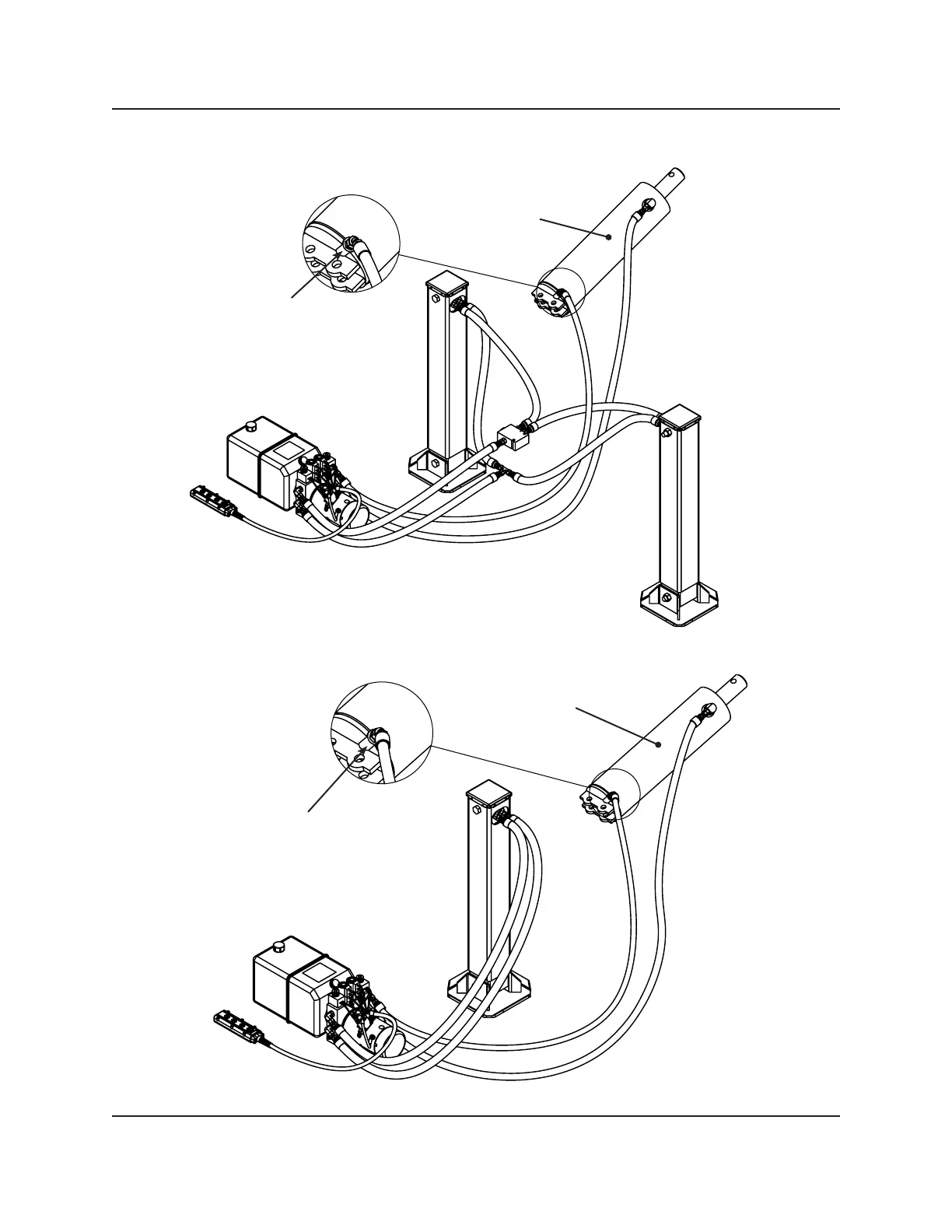

DUAL DOUBLE ACTING JACK AND HOIST HPU CONNECTIONS
Hoist Cylinder
Hoist Cylinder
IMPORTANT:
Install (supplied) Bridon
load control valve at this
port of hydraulic cylinder
IMPORTANT:
Install (supplied) Bridon
load control valve at this
port of hydraulic cylinder
See page 23 Detail A
See page 23 Detail B
