Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

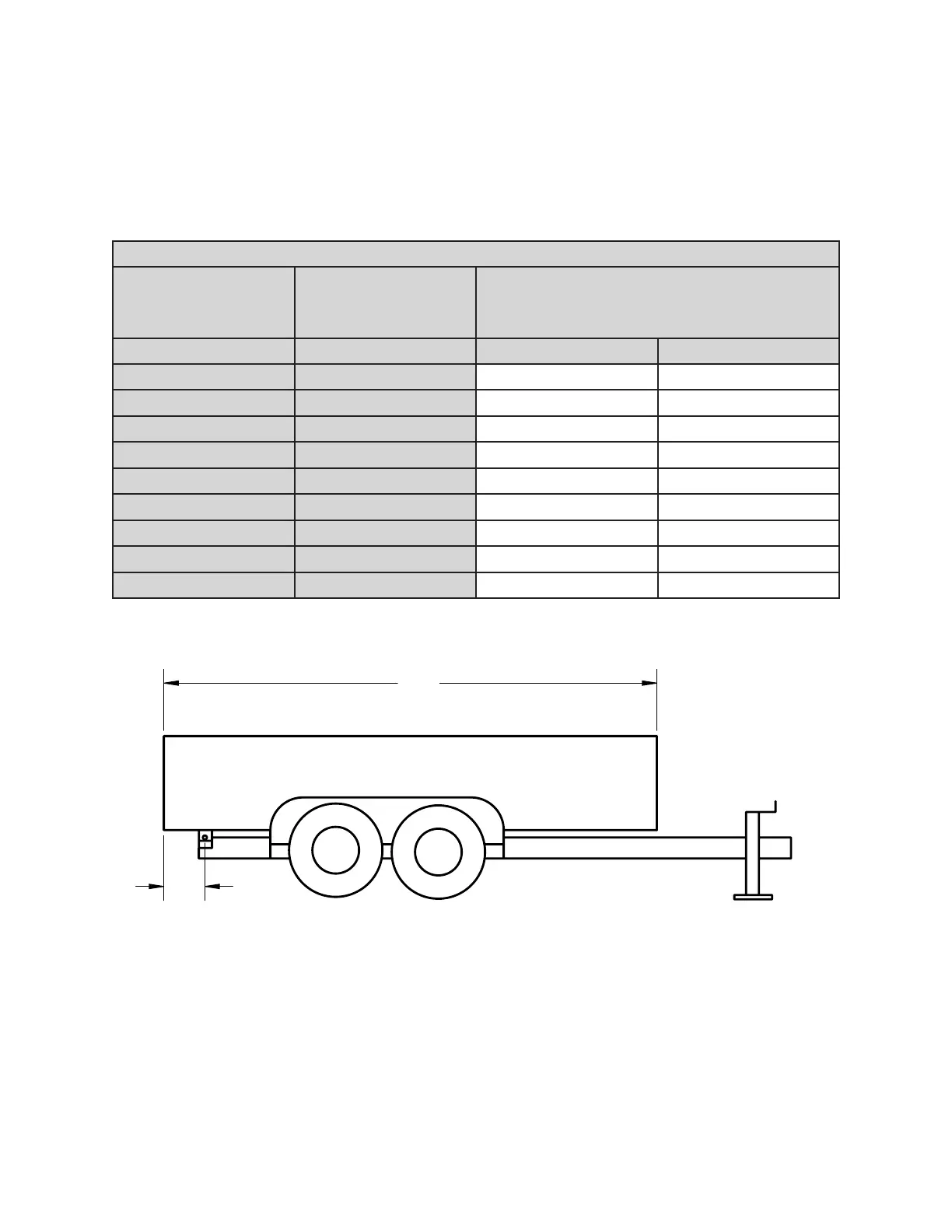

PF-310 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT:
Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF310 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
8 12 3.7 3.3
8 18 4.4 4.0
8 24 5.5 4.9
9 12 3.2 2.8
9 18 3.7 3.3
9 24 4.4 4.0
10 12 2.8 2.5
10 18 3.2 2.8
10 24 3.7 3.3
