Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

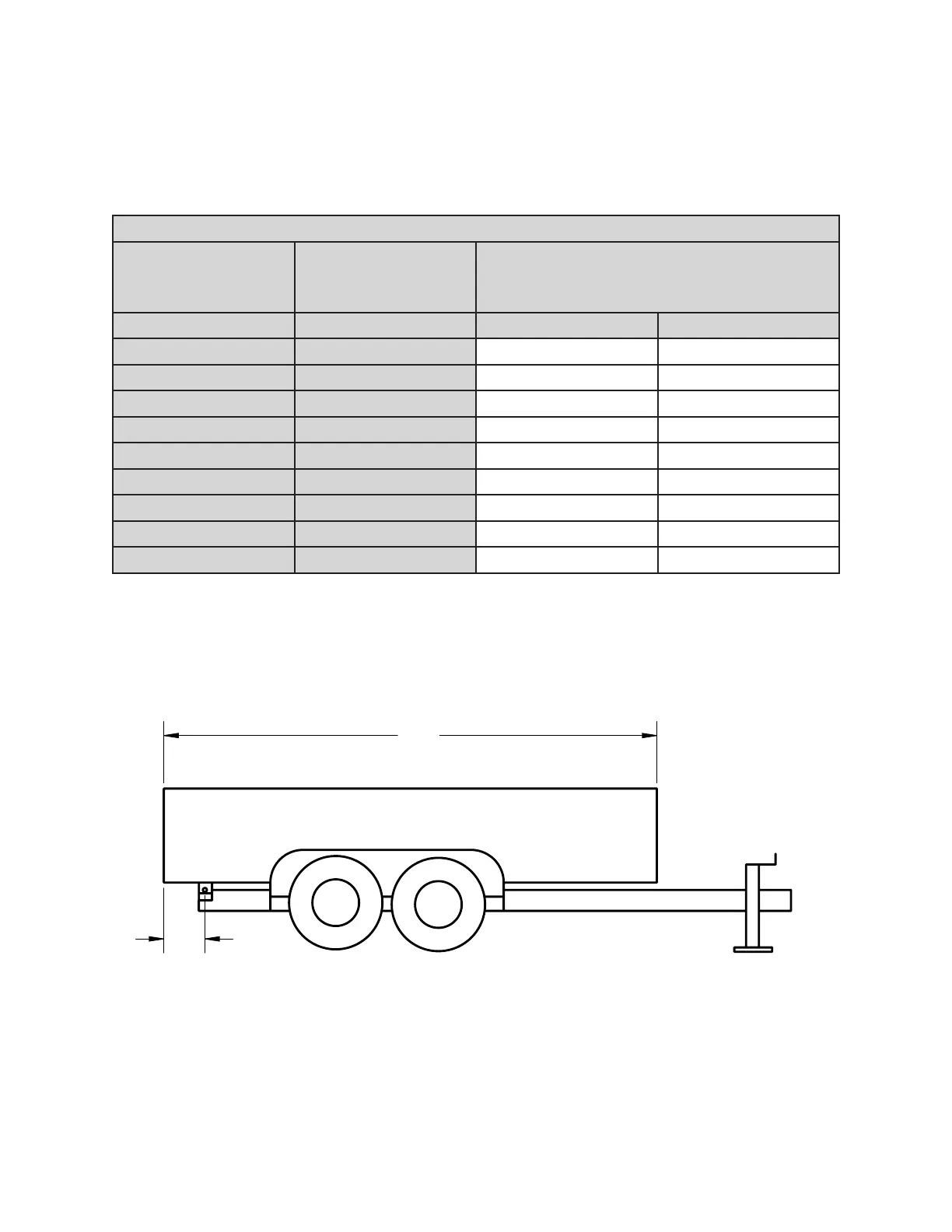

PF-416 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT:
Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF416 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
10 12 9.3 8.4
10 18 10.6 9.6
10 24 12.4 11.2
12 12 7.4 6.7
12 18 8.3 7.5
12 24 9.3 8.4
14 12 6.2 5.6
14 18 6.8 6.1
14 24 7.4 6.7
