Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

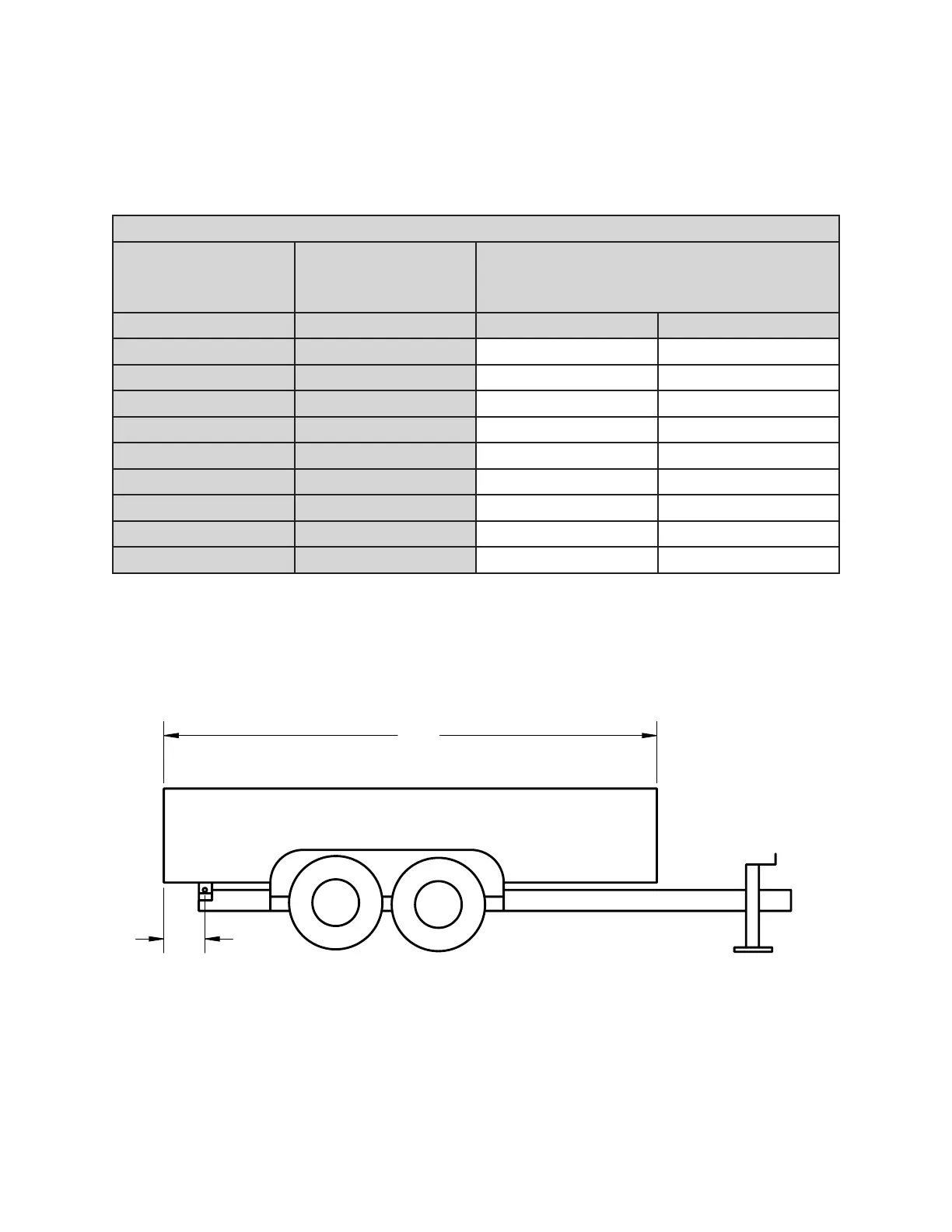

PF-516 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF516 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
10 12 9.7 8.8
10 18 11.1 10.0
10 24 12.9 11.7
12 12 7.7 7.0
12 18 8.6 7.8
12 24 9.7 8.8
14 12 6.5 5.8
14 18 7.0 6.4
14 24 7.8 7.0
