Page 31
"A"
"B"
Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

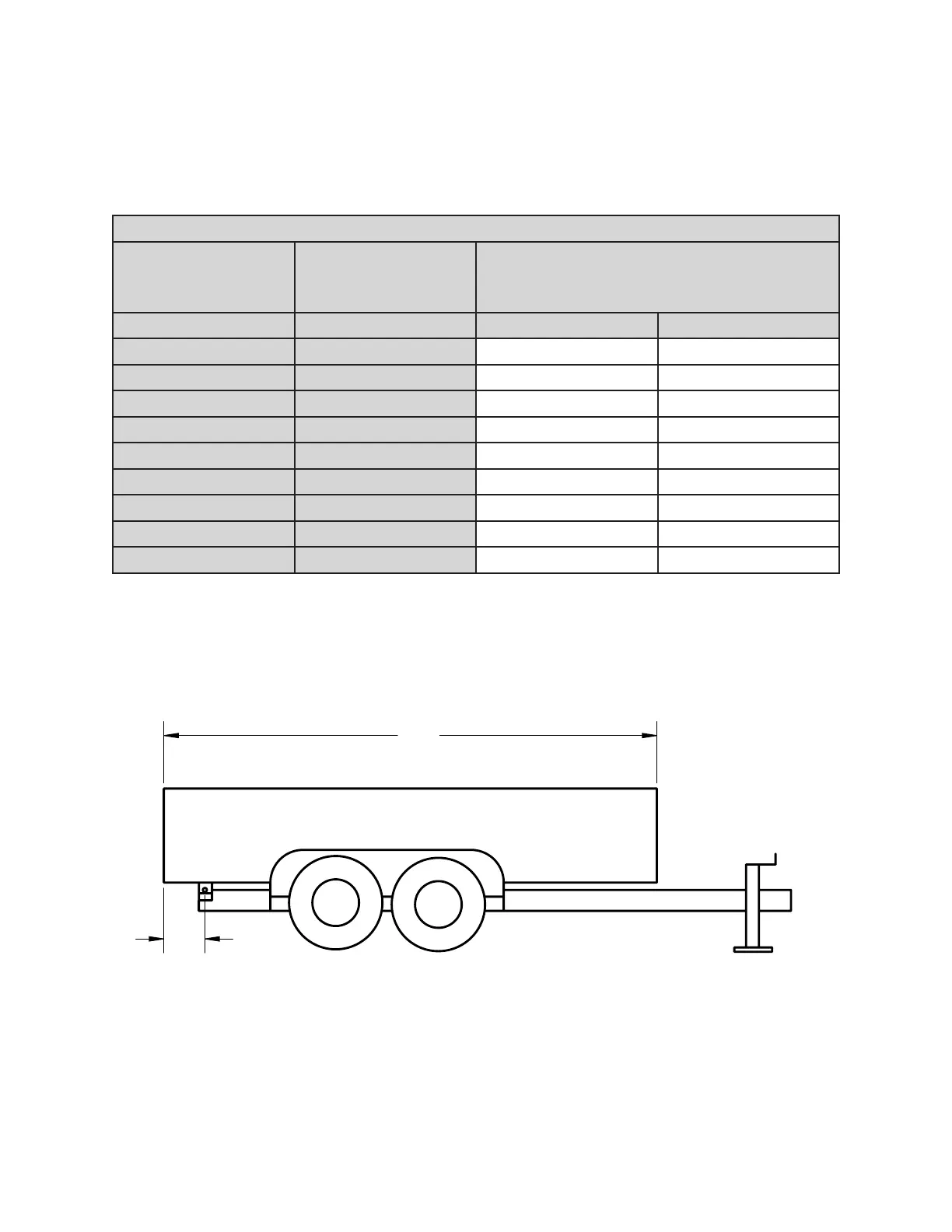

PF-520 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF520 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
12 12 10.3 9.3
12 18 11.4 10.4
12 24 12.9 11.7
14 12 8.6 7.8
14 18 9.3 8.5
14 24 10.3 9.3
16 12 7.3 6.7
16 18 7.9 7.2
16 24 8.6 7.8
