Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

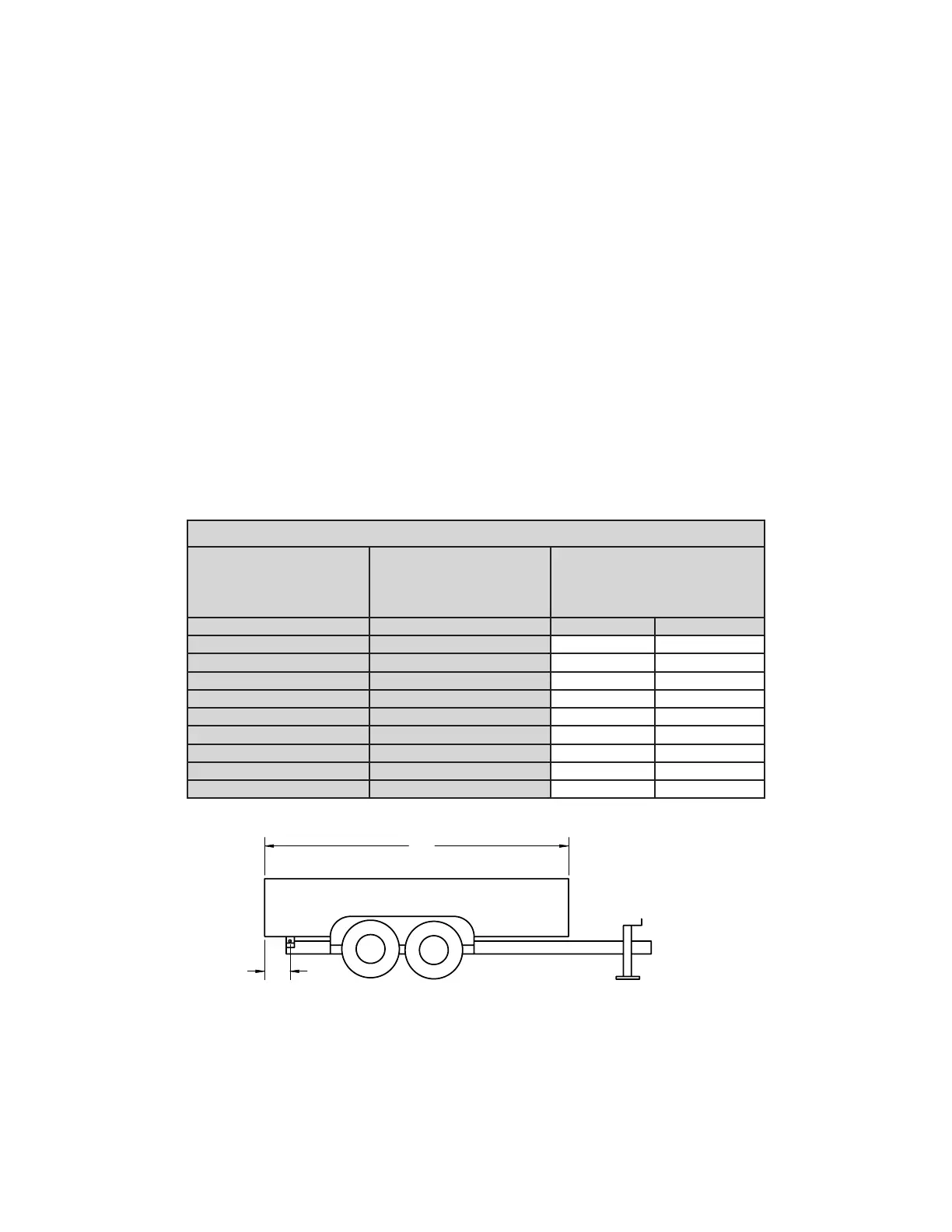

PF-616 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF616-6 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
12 12 12.6 11.3
12 18 14.0 12.6
12 24 15.7 14.1
14 12 10.5 9.4
14 18 11.4 10.3
14 24 12.6 11.3
16 12 9.0 8.1
16 18 9.6 8.7
16 24 9.8 9.4
