Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

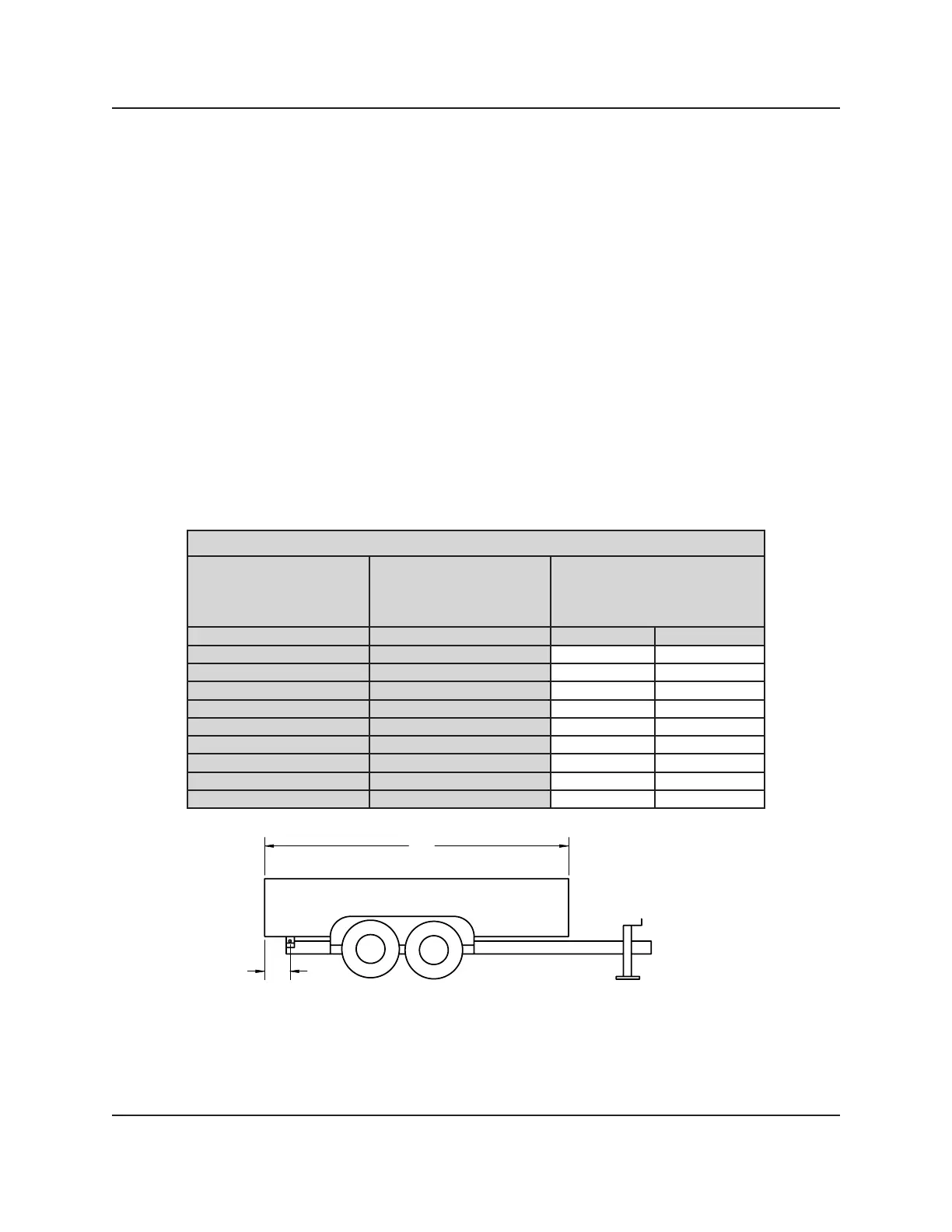

PH-621 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PH621-6 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
16 12 11.9 10.7
16 18 12.8 11.6
16 24 13.9 12.5
18 12 10.4 9.4
18 18 11.1 10.0
18 24 11.9 10.7
20 12 9.2 8.3
20 18 9.8 8.8
20 24 10.4 9.4
