Page 37
"A"
"B"
Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

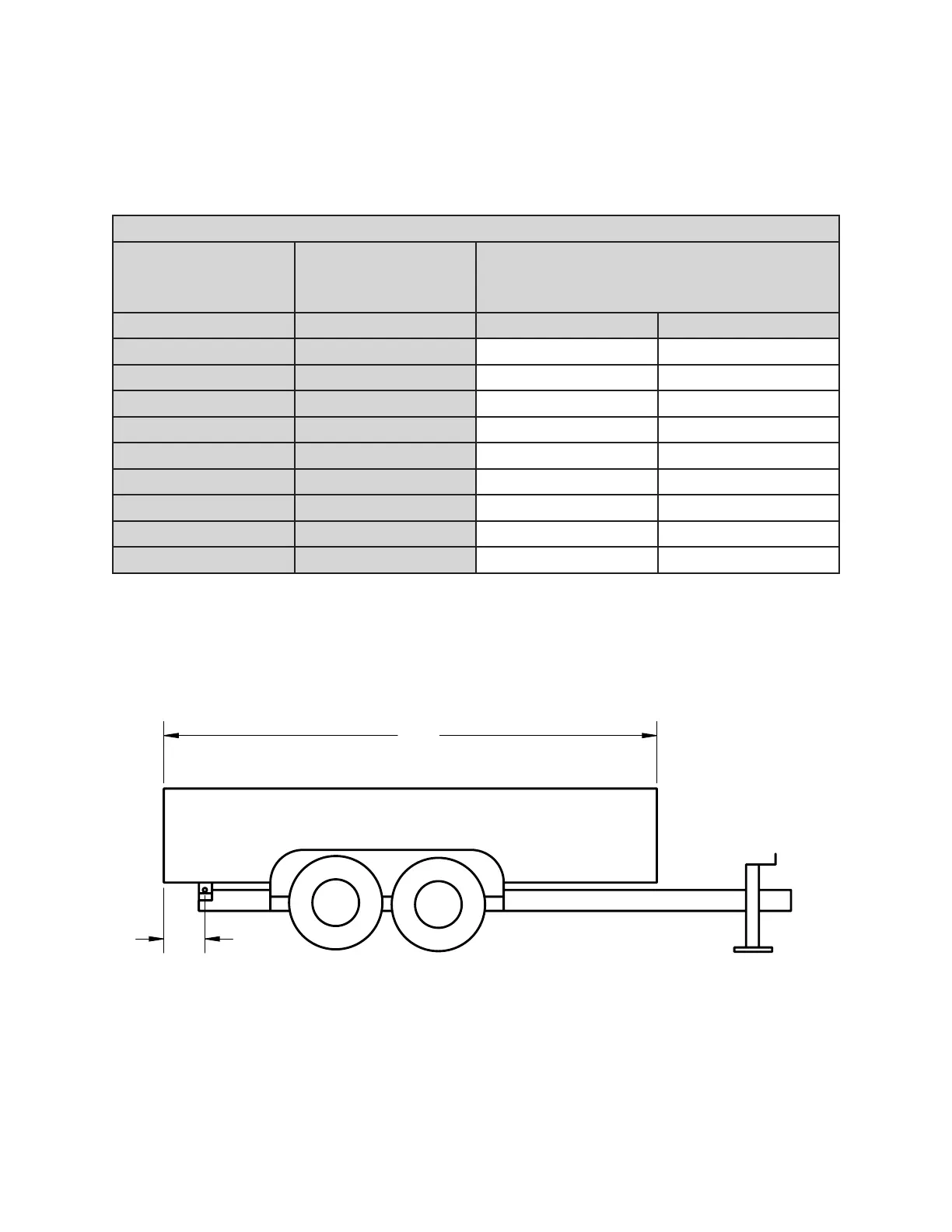

PF-625 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF625 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
16 12 11.3 10.2
16 18 12.1 11.0
16 24 13.2 11.9
18 12 9.9 8.9
18 18 10.5 9.5
18 24 11.3 10.2
20 12 8.8 7.9
20 18 9.3 8.4
20 24 9.9 8.9
