Page 39
"A"
"B"
Capacities are based on the following:
1. Water level non-diminishing load.
2. The vertical height between the rear hinge pivot and
the oor is no less than 3 inches.
3. The hydraulic relief pressure set at 3,200 psi.

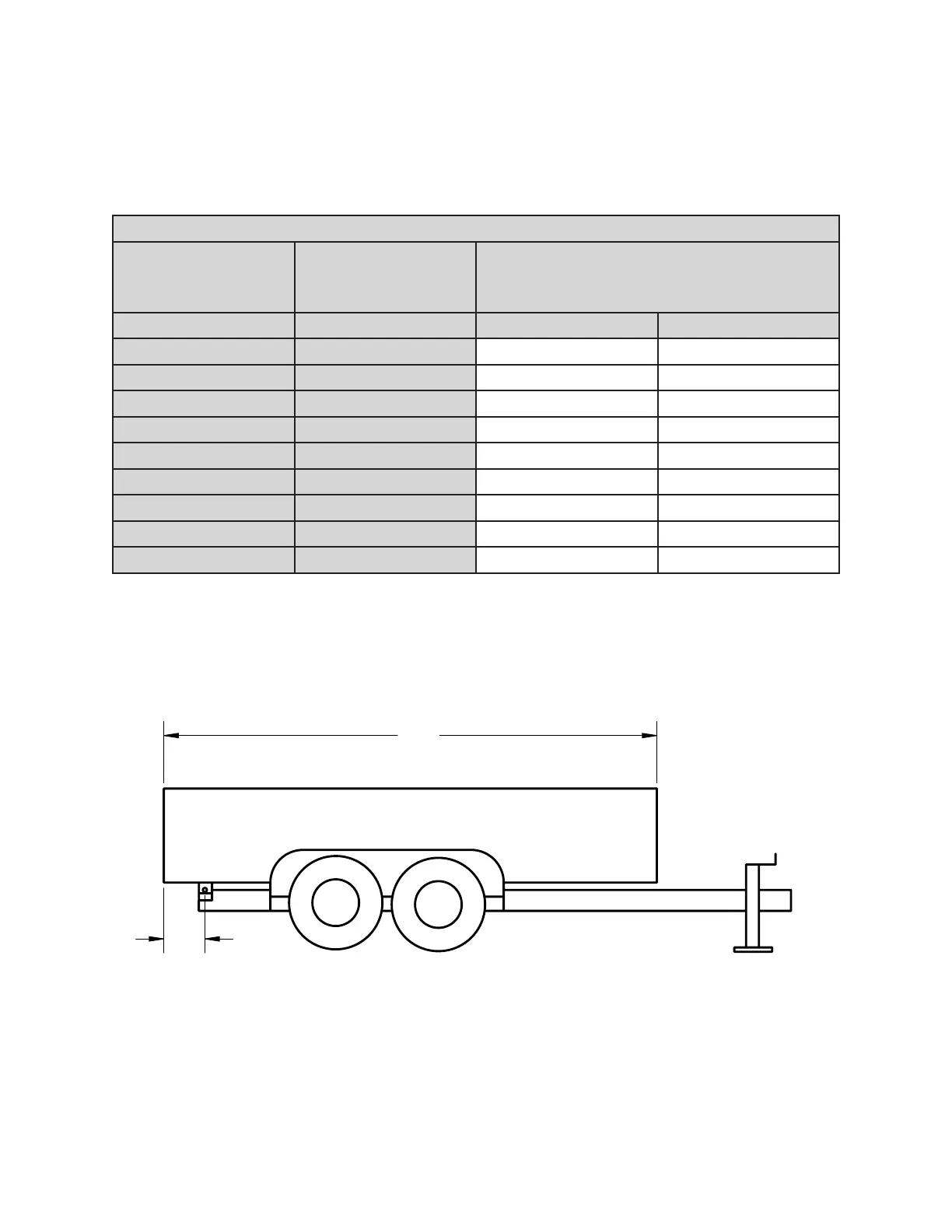

PF-630 Trailer Hoist Conversion Class A
(Capacity in Tons)
IMPORTANT: Because of variations in application, the data contained in these tables is
provided as a general guide only.
PF630 Hoist Capacity (Tons)
“A”
Body
(Feet)
“B”
Overhang
(Inches)
Dump Angle (Degrees)
45° 50°
18 12 13.5 12.2
18 18 14.4 13.1
18 24 15.4 14.0
20 12 12.5 10.9
20 18 12.7 11.5
20 24 13.5 12.2
24 12 9.8 8.9
24 18 10.3 9.3
24 24 10.8 9.8
