ECM-SERIES 16
User’ Guide

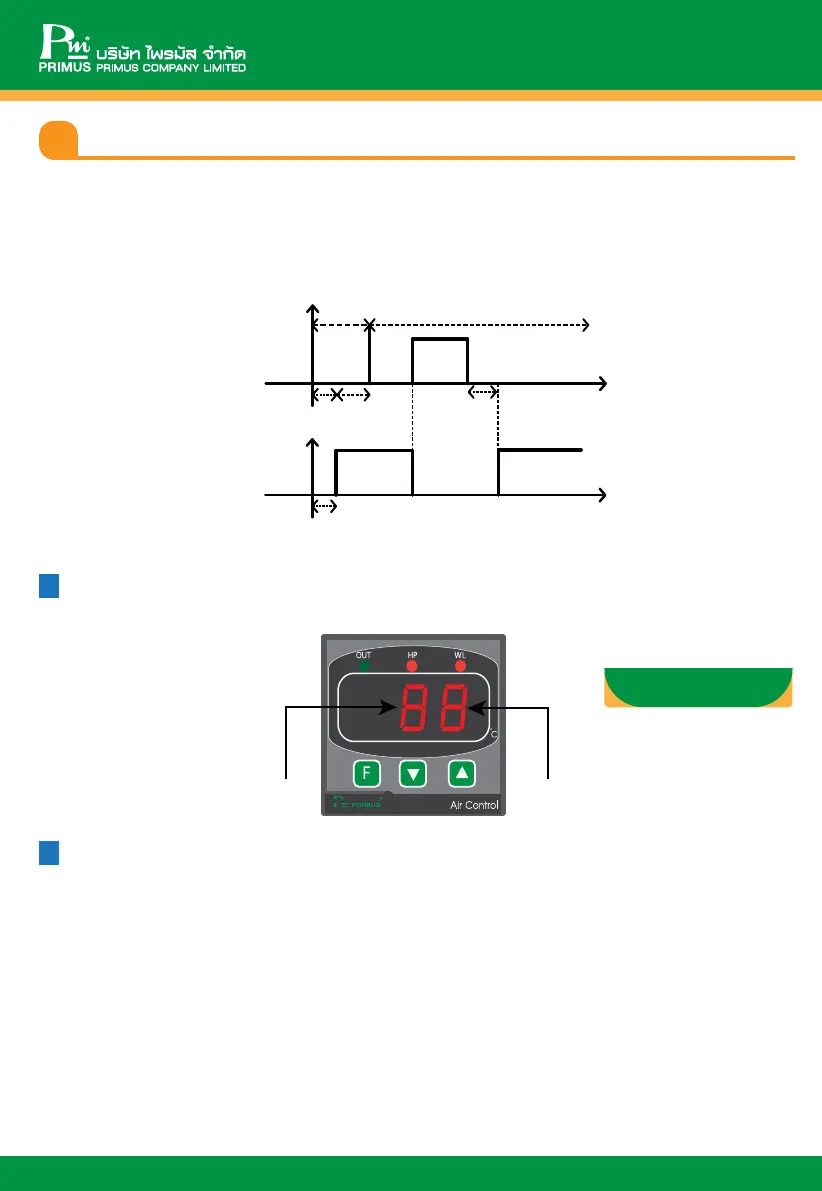

After Alarm is not active, CMA-003 will delay the Delay Time Alarm Event before start to control temperature again. And
when Alarm Input Water Level or Alarm Input High Pressure since 3 times will made Alarm keep hold on until the user will
clear Status Alarm and turn off and turn down again.
It can control Alarm Relay by Absolute control.
1.
None is when PV in condition which made Alarm operate Relay AL1 will operate suddenly and Display will show
HL (High Limit Alarm) or show switch between LL (Low Limit Alarm) and Temperature. And when that condition has
finished Relay AL1 will stop and Display will return to normal.
2.
Alarm output hold is when PV value in condition which made Alarm operate Relay Alarm 1 and Display will
operate suddenly and will not stop until Clear by CLr variable by set this variable to 1 or turn off and turn on again.
3.
Stand by Sequence is when turn on Alarm will not operate until the value will go to SV and Function Alarm
will operate.
OPERATION [Continue]
Time
ON
OFF
Output Relay
Status
Time
Alarm System
EnableDisable
ON
OFF
Alarm Relay
Status
Additional Alarm Function Additional Alarm Function choose by
number at 1st digit Able to set in 3 way
Choosing Alarm form by set variable ALF there are setting
at 2 digits
AIR CONTROL
Additional Function Alarm Function
