ECM-SERIES 4
User’ Guide
Be careful, before drilling any holes in the control cabinet, the equipment inside the control cabinet should
be covered by the trick and dry cloth to protect them any damages that might cause by the slag.
Mounting the enclosure scaling gasket with the control cabinet before installing the cooling module to the
control cabinet.
The right procedure to fix the Enclosure sealing gasket to prevent the leaking of the Enclosure should be
firmly mounted between the cooling module and control cabinet.

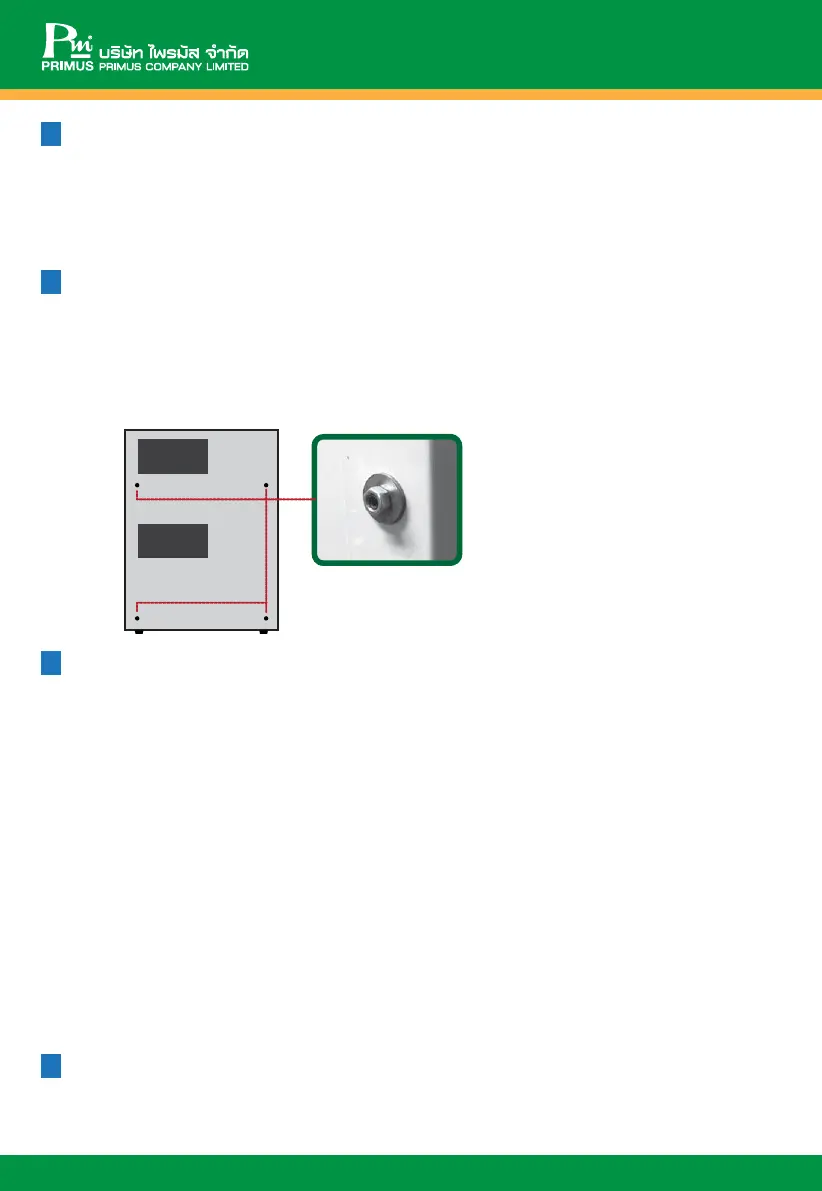

Mounting a cutting layout to the panel of the Prior to mounting, mark all position on panel. Cut the panel
off, and then install the cooling module follow the layout position.
Precaution
Importance
Incase of adjusting the temperature of the control cabinet to be lower than 28 ํC (due to having some type
of CPU Chip which require temperature at 20 ํC), a precision air conditioner of multi stage system is recommended
Instruction
• The side of the control cabinet and the unit should be located where there is good ventilation
• The location should be free from dirt and moisture
• The electric power supply should be the same as the specification of the name plate
• The damage of packaging might also cause of damage to the unit
• The unit should be install at lease 200 mm. from the wall
• The unit should be install at lease 200 mm. from the equipment inside the cabinet to prevent a good
circulation of the ventilation
• Unit should only be fixed vertically in the specified position
• The condensate drainage is provide
• Electric connection and repair must be by authorized specialist, the prolongation of the operation life of the unit
• To avoid an increase in condensation the control cabinet must be firmly closed, do not adjust the temperature
lower than 28 C
• The power supply must be not supplied from any Inverter or Convertor equipment
Prior to mounting, ensure that
Remark :
M6 Screw, should be screwed from
the inside of cabinet.
