Prins VSI-2.0 - Mounting the Keihin Filter Unit

PAGE 12
076/2613400
Copyright © Prins Autogassystemen B.V. 2014
VW Tiguan 1.4 CAXA / CAXC
12

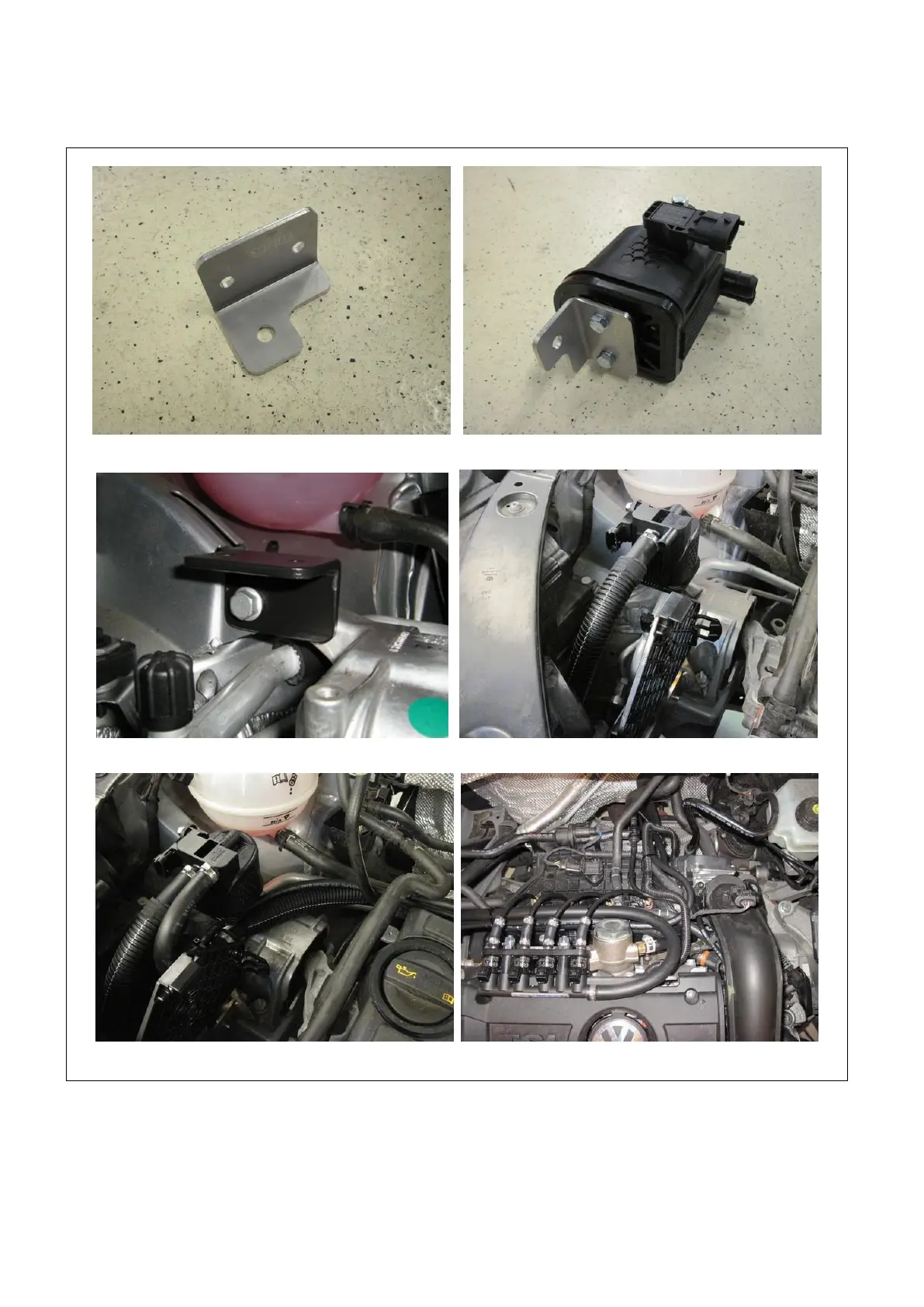

Mounting the Keihin filter unit
Mount filter unit on bracket
Mount filter unit bracket on original engine support. Mount LPG hose from reducer to filter with protection.
Mount 11mm LPG hose from filter to injector rail.
